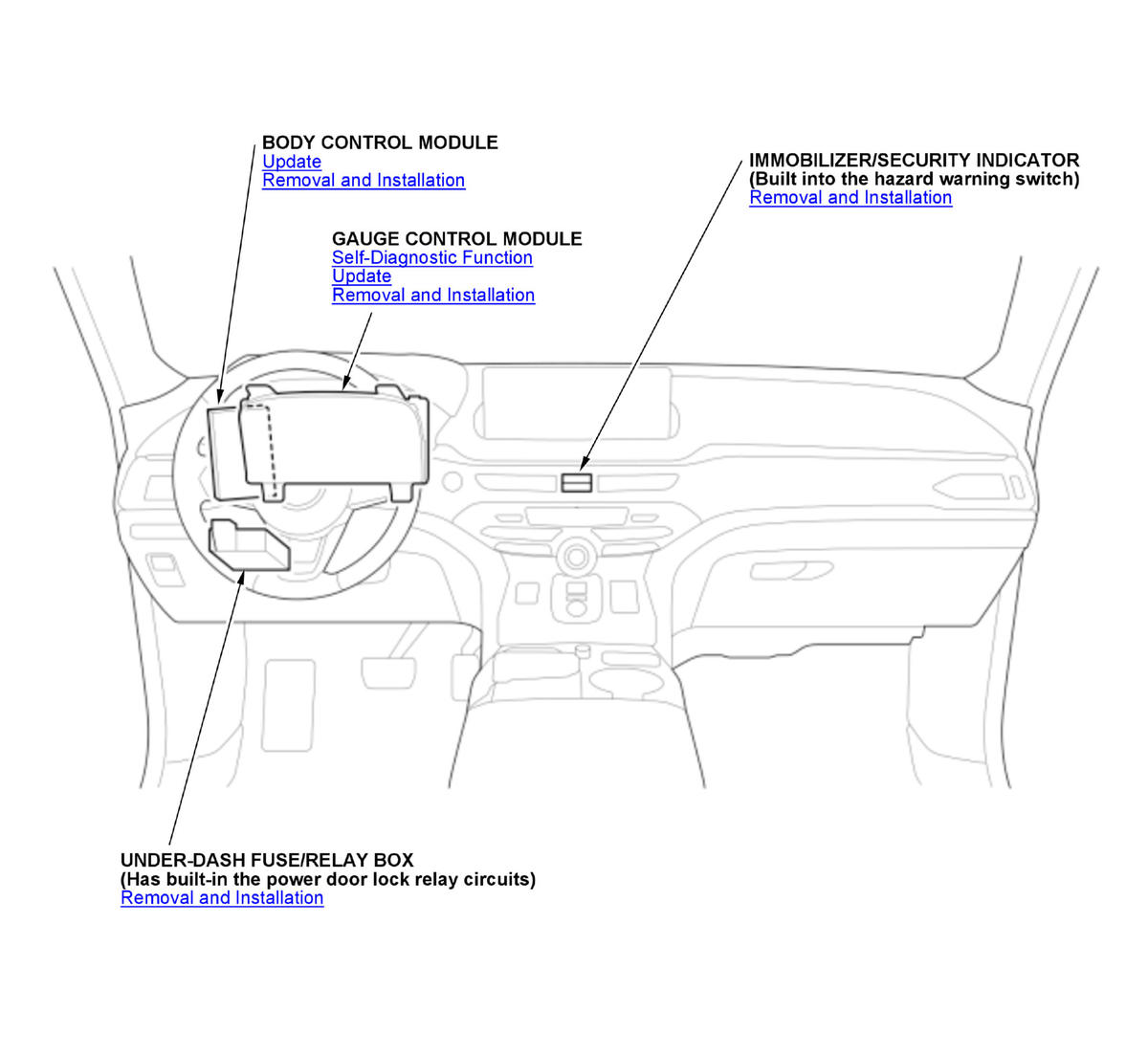

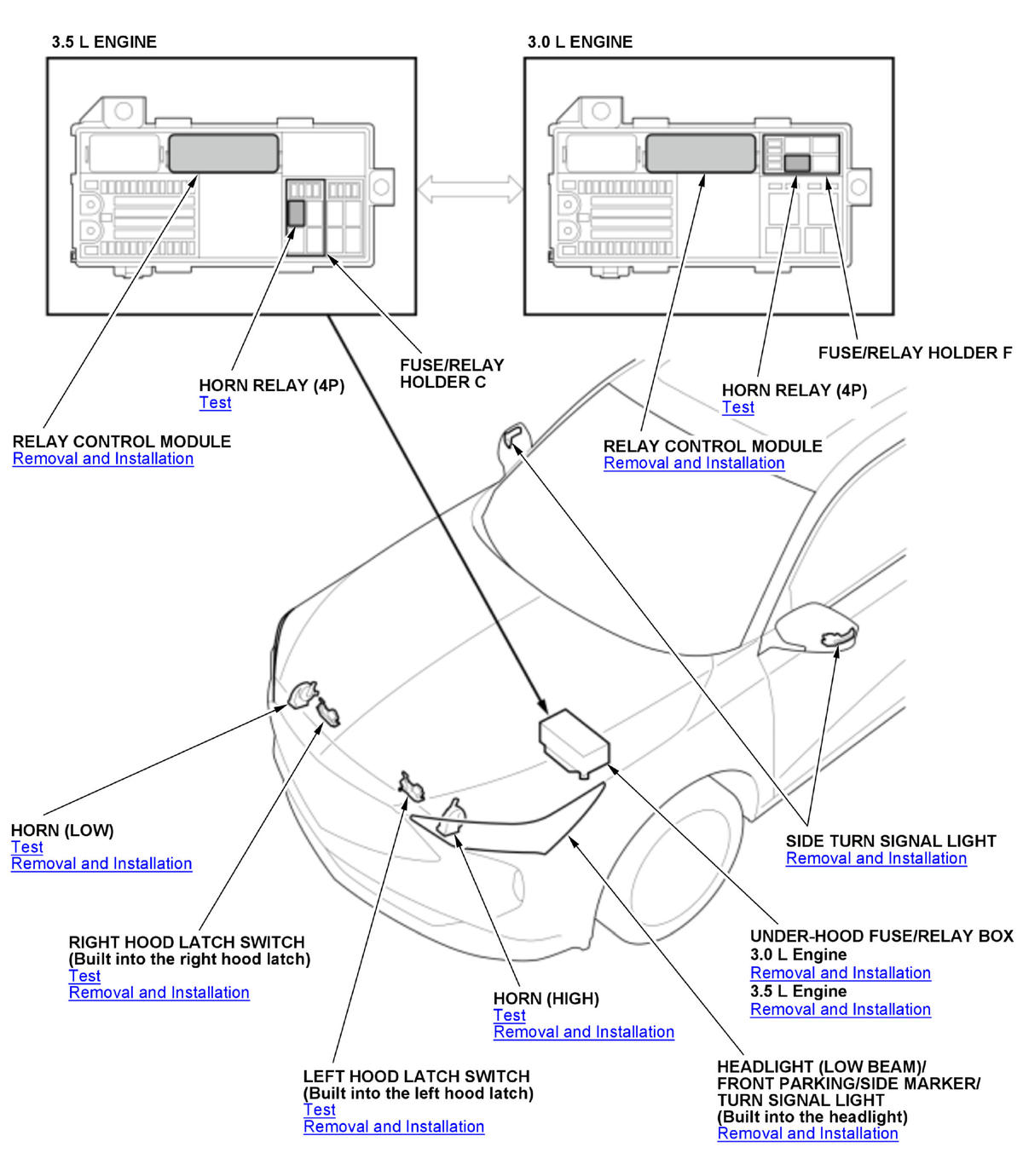

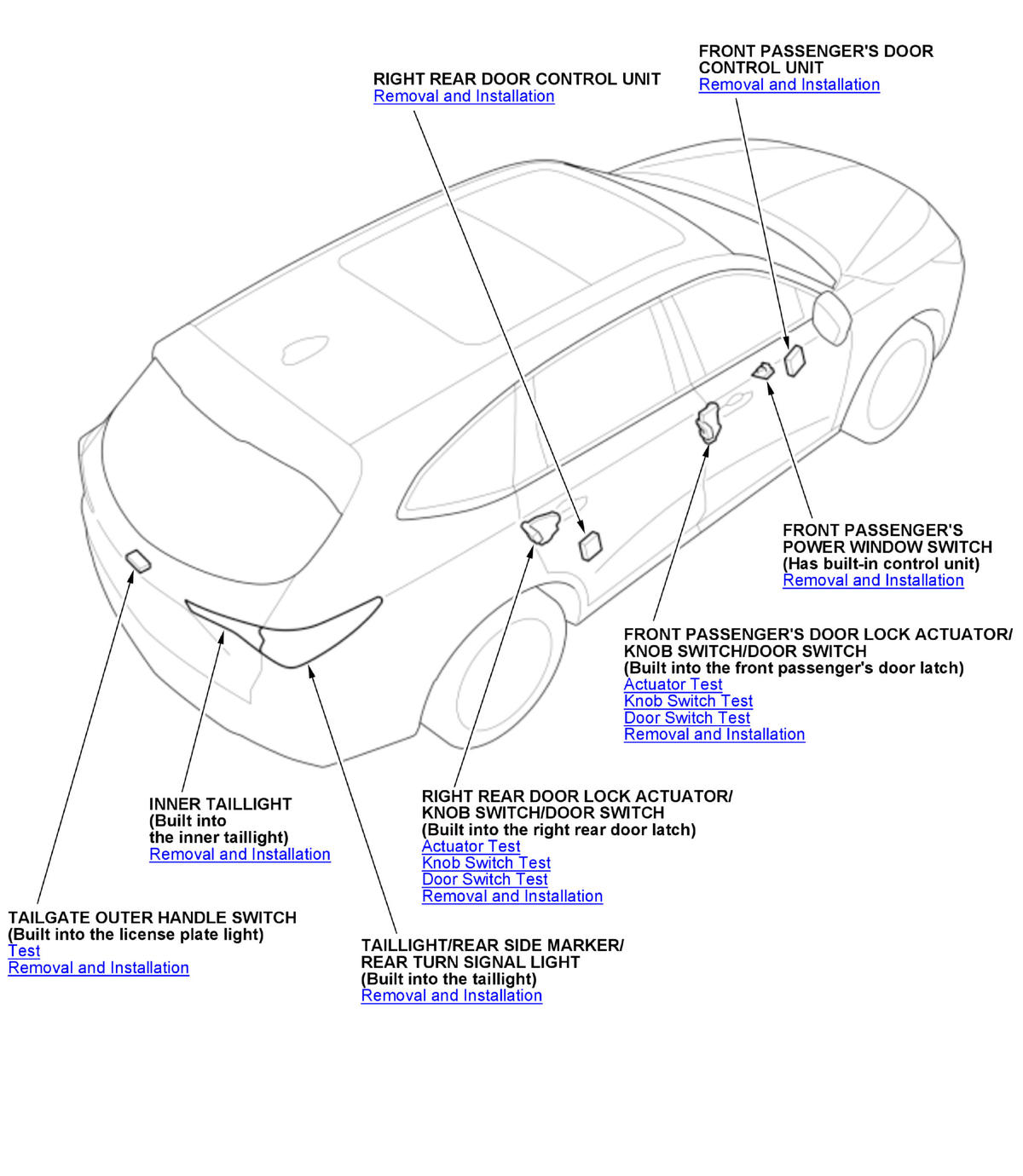

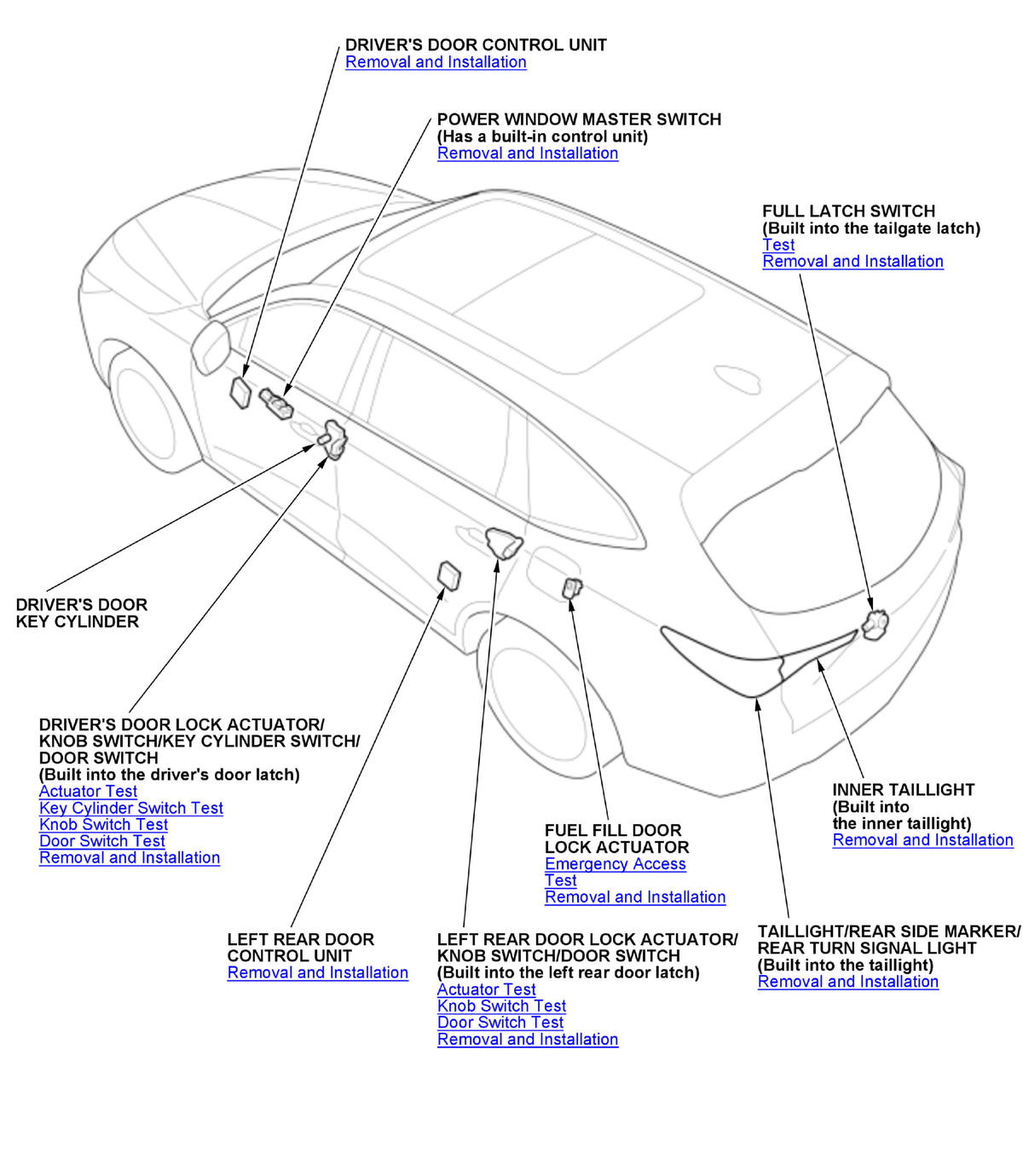

Keyless/Power Door Locks/Security System Component Location Index (3.5L Engine)

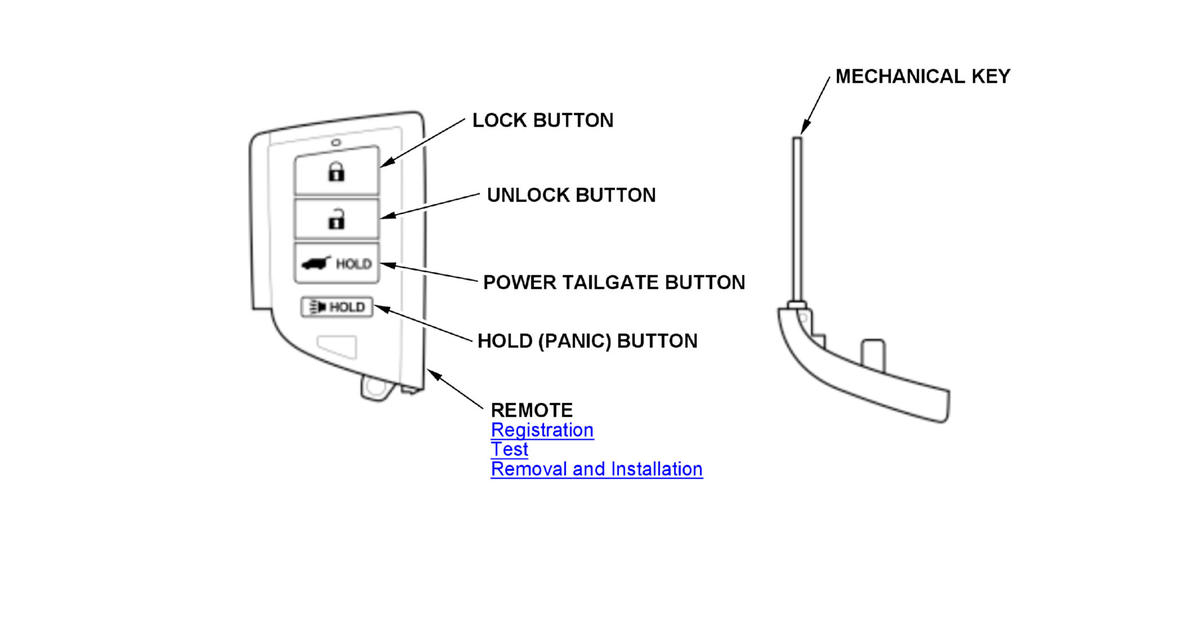

For the Keyless Access System, refer to Keyless Access System, Component Location Index . 1-way Remote

Courtesy of HONDA, U.S.A., INC.

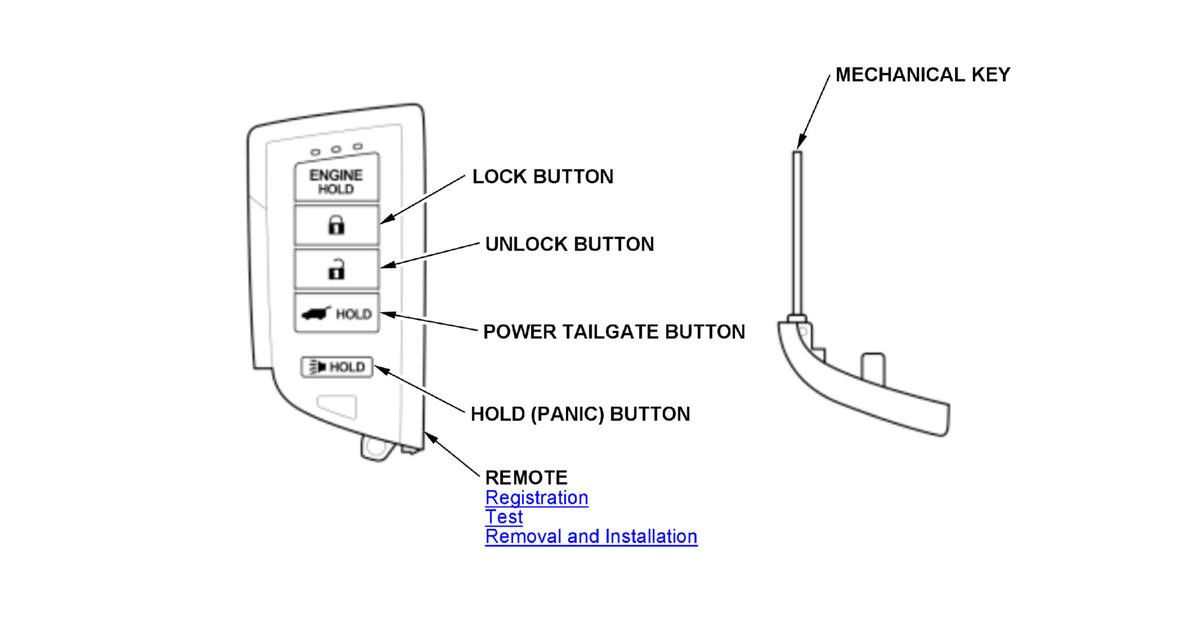

2-way Remote

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.
