Keyless/Power Door Locks/Security System Component Location Index (USA/Canada models)

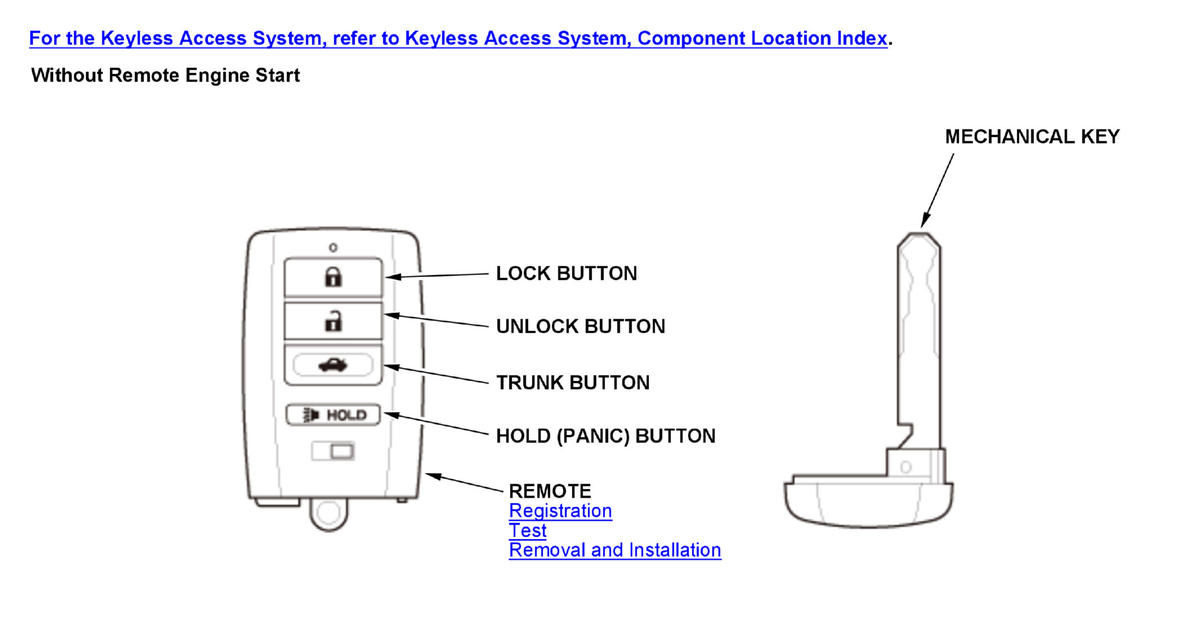

GHH487295

Courtesy of HONDA, U.S.A., INC.

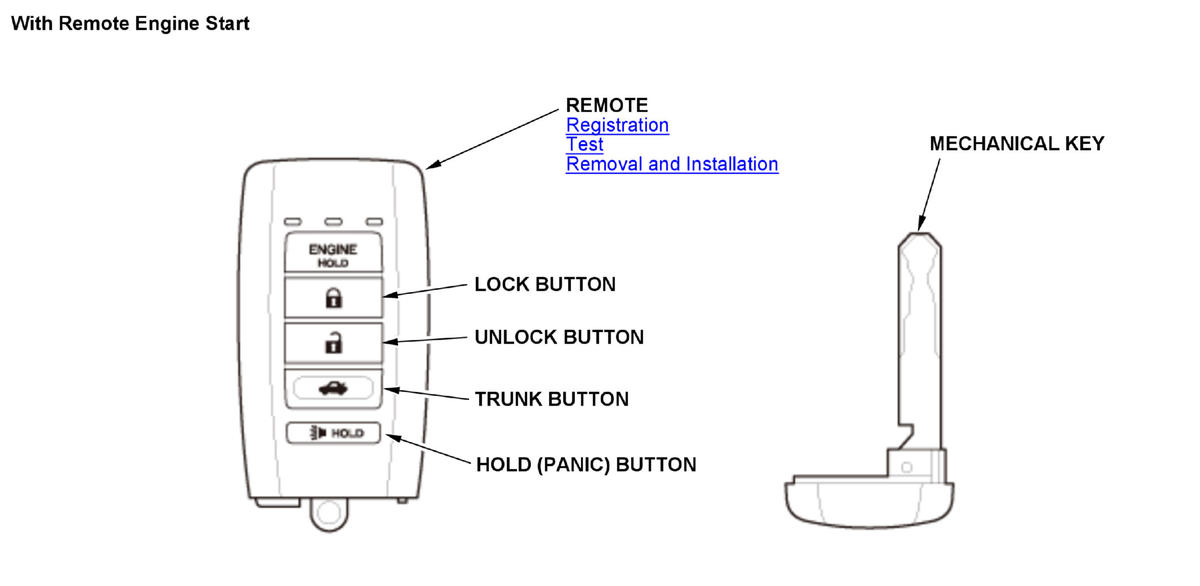

GHH487296

Courtesy of HONDA, U.S.A., INC.

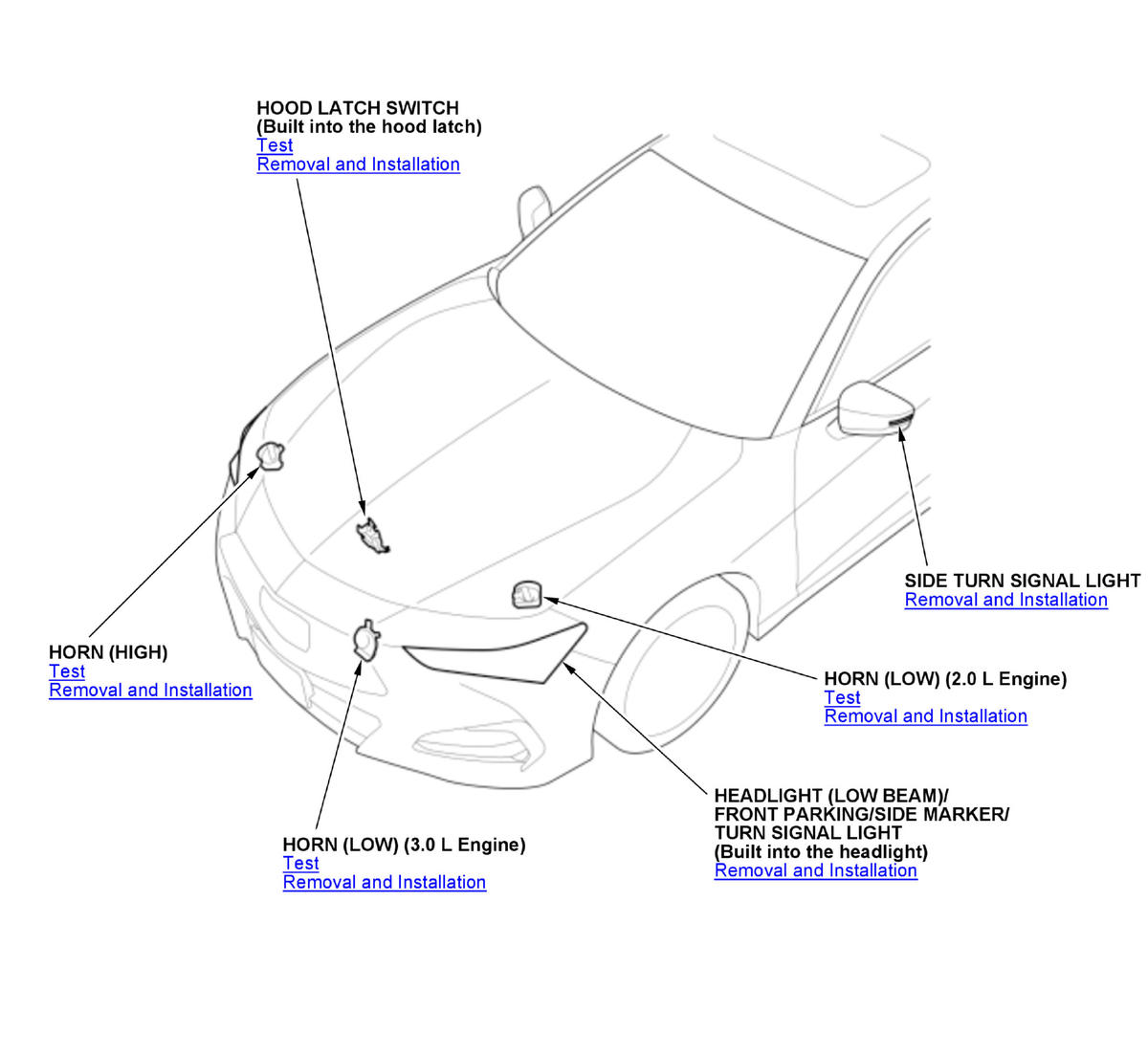

GHH487297

Courtesy of HONDA, U.S.A., INC.

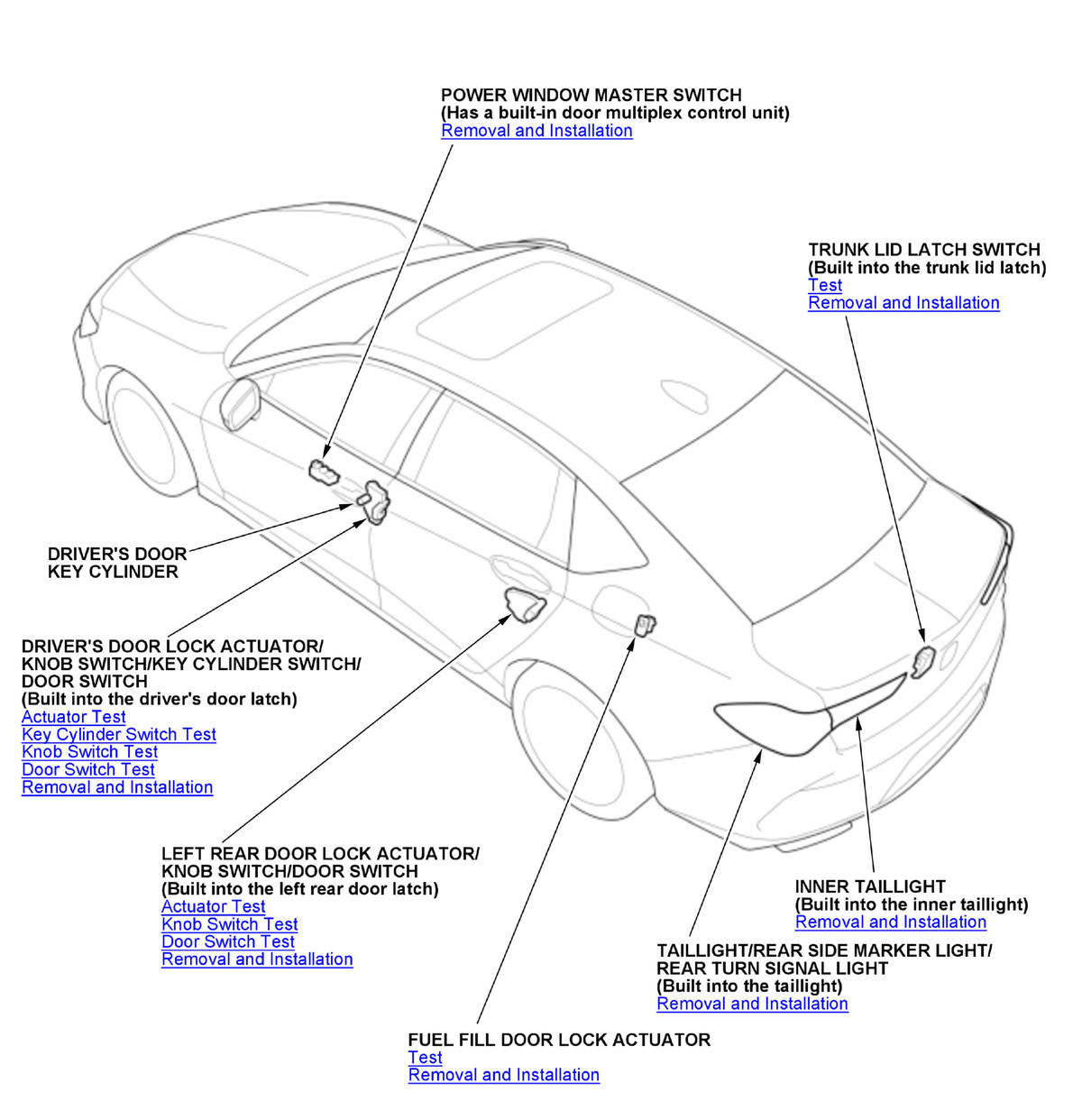

GHH487298

Courtesy of HONDA, U.S.A., INC.

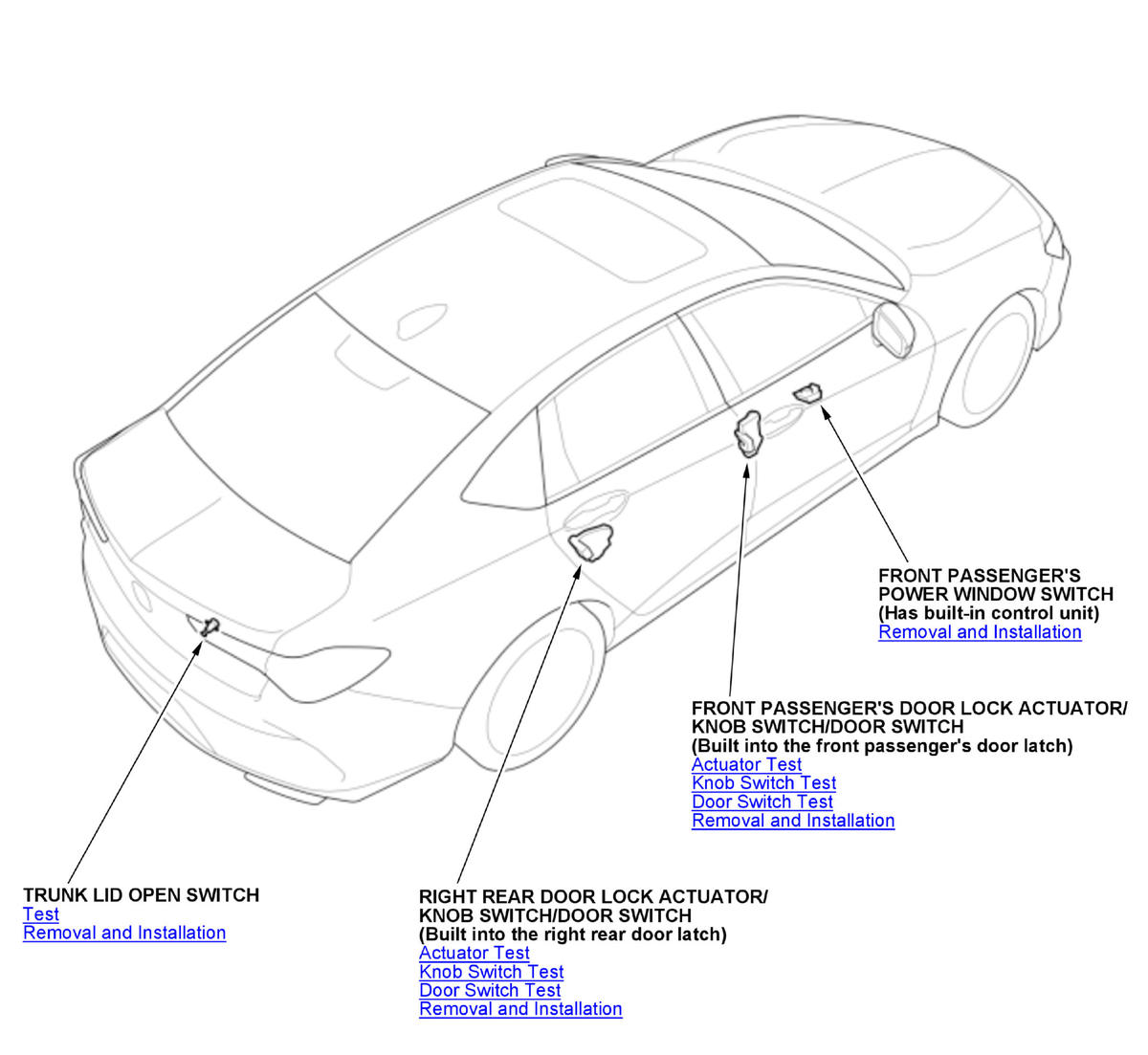

GHH487299

Courtesy of HONDA, U.S.A., INC.

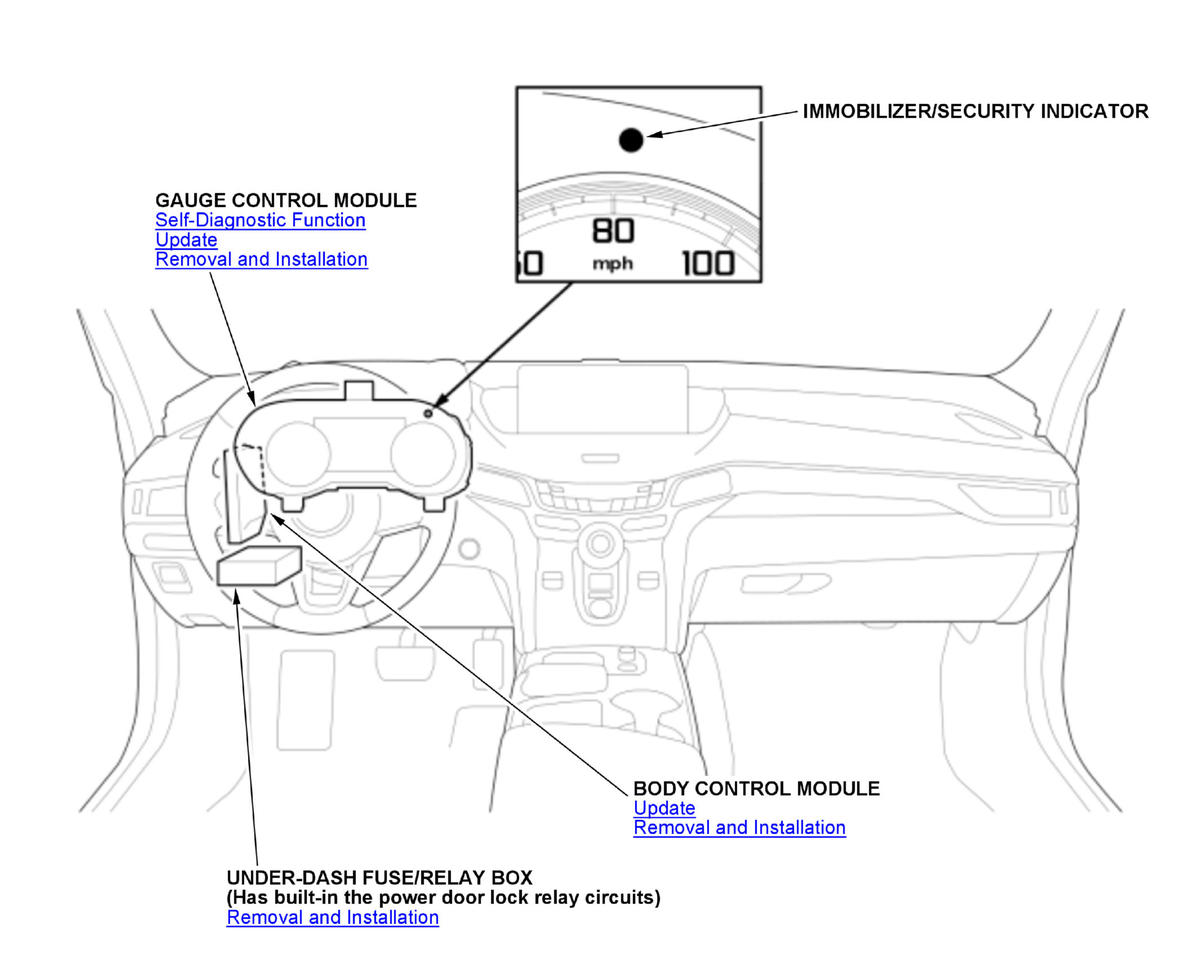

GHH487300

Courtesy of HONDA, U.S.A., INC.
