DTC Troubleshooting: P0221 (2.0L Engine): Inspection

TP Sensor Inspection

NOTE: Since there is no direct method to test the component itself, troubleshooting is performed on the related components.

Test Procedure

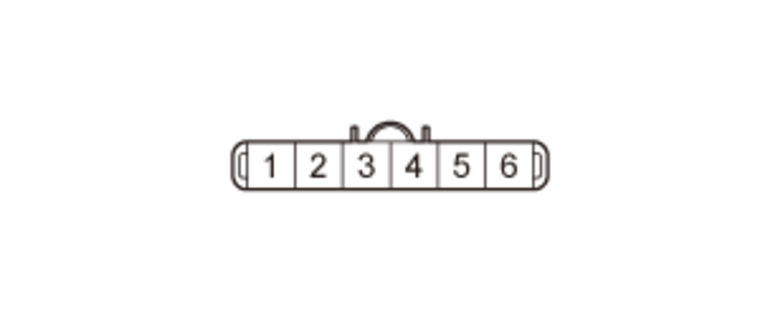

		(Disconnected)Throttle body 6P connectorfemale terminals
	IG Mode	Courtesy of HONDA, U.S.A., INC.	Normal Conditions
Unit output voltage inspection	ON		About 5.0 V
Unit output voltage inspection	ON		About 5.0 V

Results

VCC3, THL2, SG3 Circuit Inspection

NOTICE:

Before disconnecting the PCM connector, jump the SCS line with the HDS, and wait more than 1 minute.

Test Procedure

Preparation
- -
  Throttle body 6P connector: disconnected
- -
  PCM connector E (80P): disconnected
Procedure
- -
  Perform the inspection according to the following table.


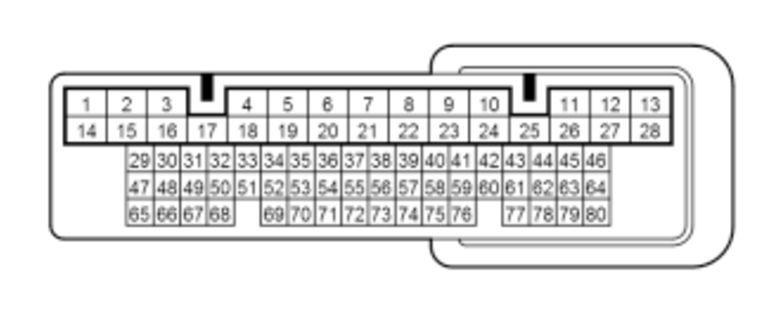

		(Disconnected)Throttle body 6P connectorfemale terminals	(Disconnected) PCM connector E (80P) - Refer to: PCM Connector for Inputs and Outputs(3.0L Engine) or PCM Connector for Inputs and Outputs(2.0L Engine) female terminals
	IG Mode	Courtesy of HONDA, U.S.A., INC.	Courtesy of HONDA, U.S.A., INC.	Normal Conditions
VCC3 open wire inspection	OFF			There is less than 1 Ohm
THL2 open wire inspection	OFF			There is less than 1 Ohm
SG3 open wire inspection	OFF			There is less than 1 Ohm
NOTE: Refer to the Open/Shorted Wire Inspection Description for the method to inspect the shorted circuit below, then start to inspect according to circumstances.
THL2 shorted to ground inspection	OFF			Not shorted

Results

PCM Inspection

Test Procedure

If the other inspection item(s) indicated a normal condition, then it is determined that the remaining PCM is the cause.

Results
