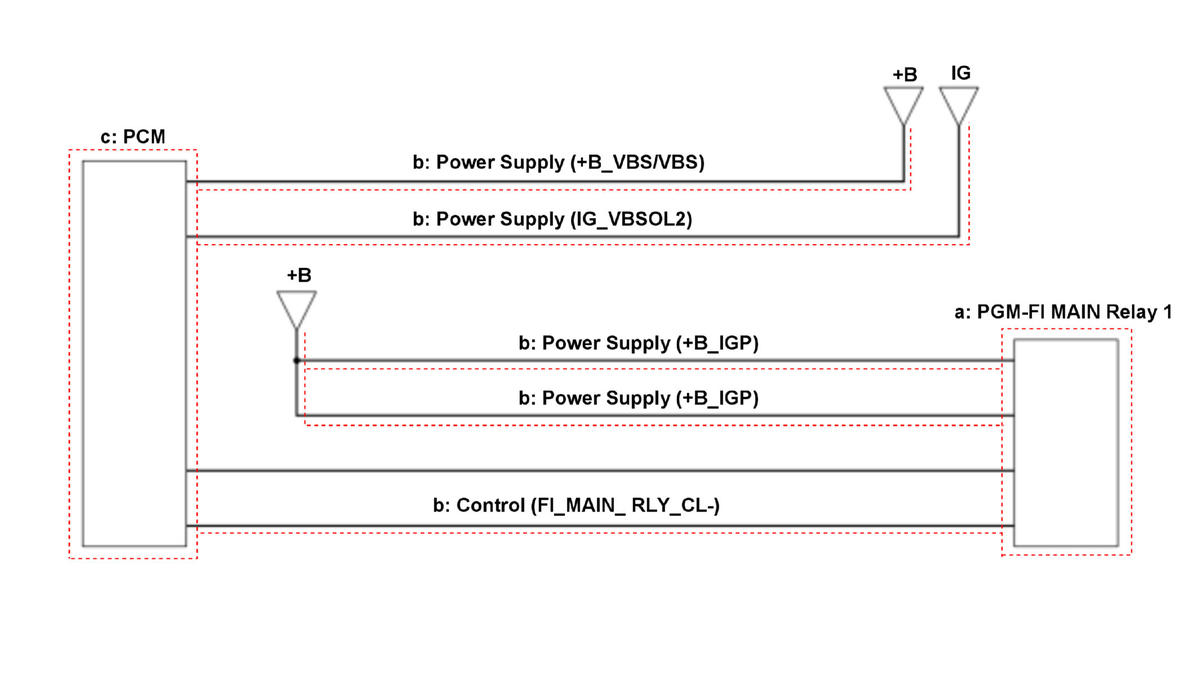

Inspection Outline

GHH481657Courtesy of HONDA, U.S.A., INC.
Inspection Items Work Items
a PGM-FI MAIN Relay 1 Do the PGM-FI MAIN Relay 1 Test
b External Circuit +B_VBS/VBU, IG1_VBSOL2, +B_IGP, FI_MAIN_RLY_CL- Circuit Inspection
c PCM PCM Inspection
