Exploded View
For replacement of components listed below, see Repair Procedure
USA and Canada Models
USA and Canada Models
USA and Canada Models
Mexico Models
Mexico Models
Mexico Models

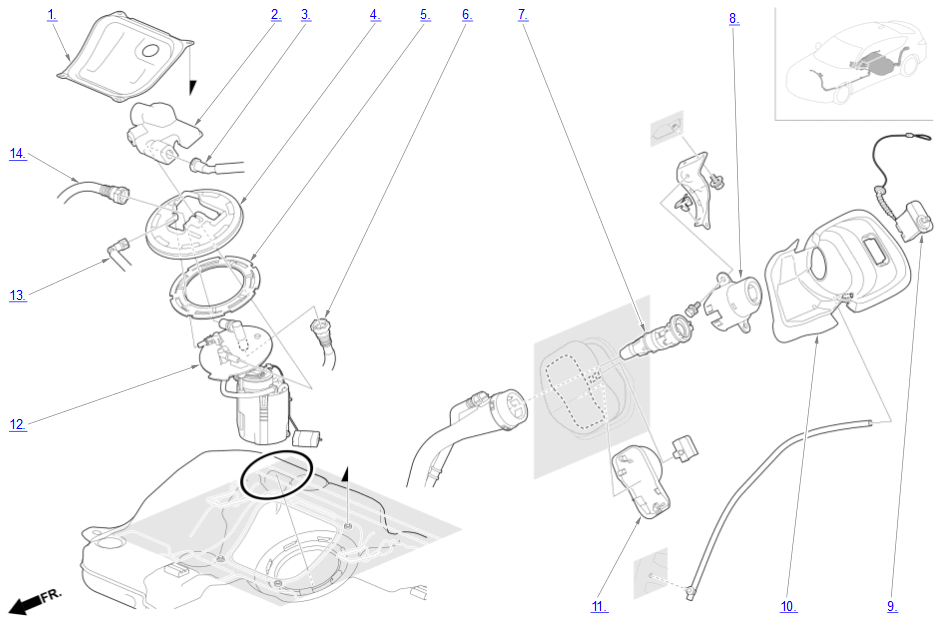

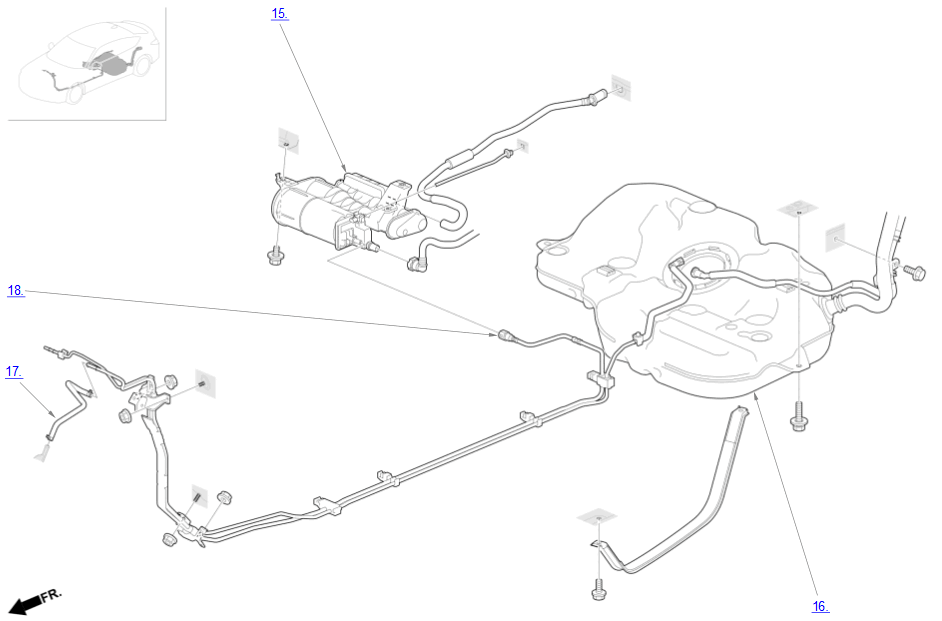

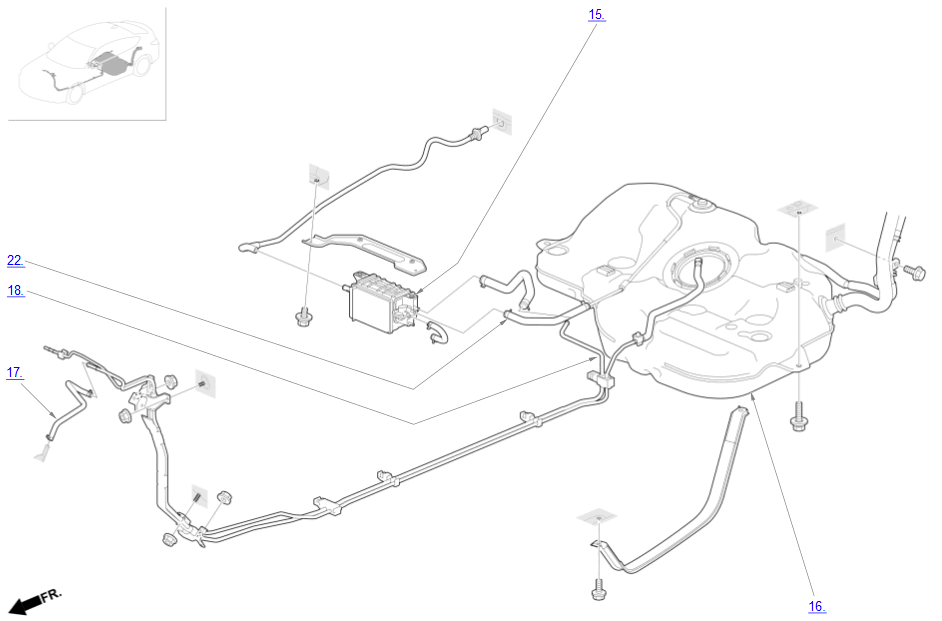

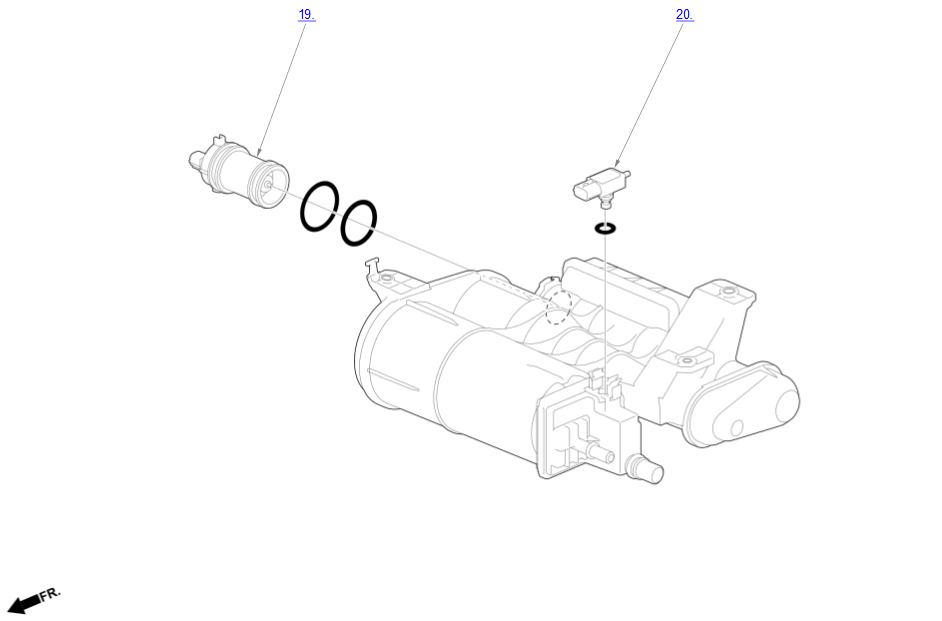

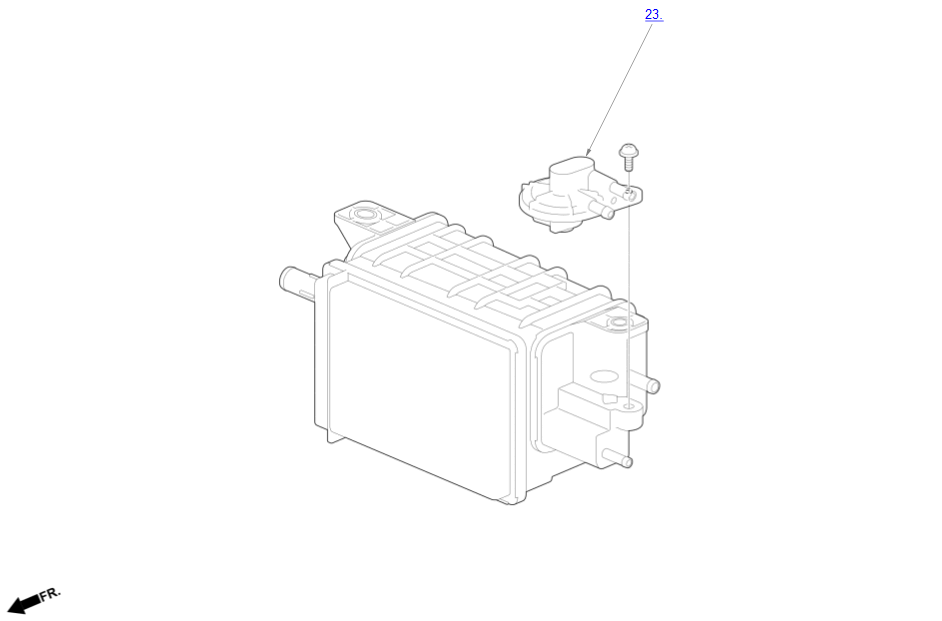

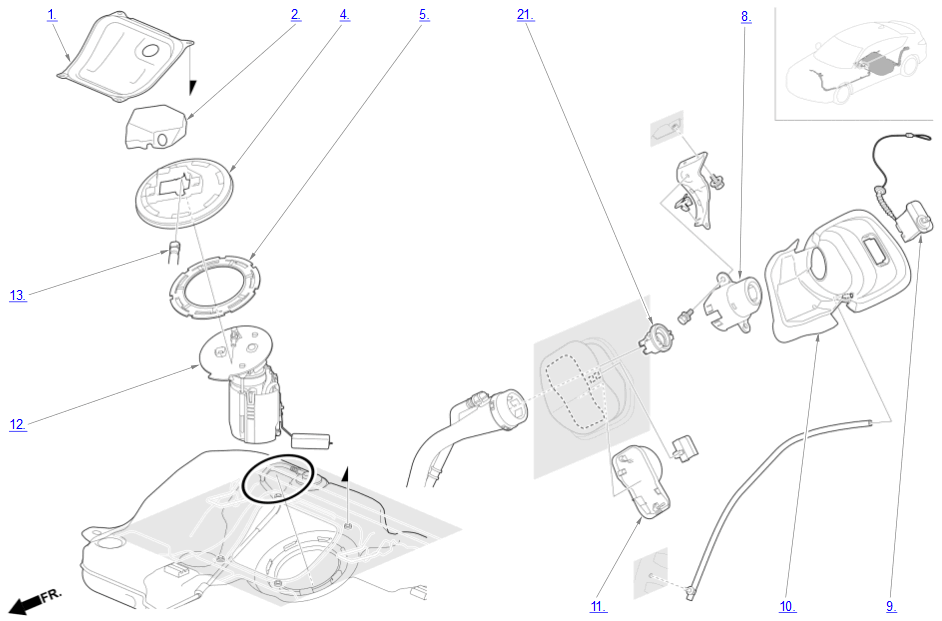

Fuel Tank Area Components
| Component Name | Callout |
|---|---|
| Access Panel | 1 |
| Fuel Connector Cover | 2 |
| Vapor Return Tube | 3 |
| Fuel Pump Module Cover | 4 |
| Fuel Tank Unit Cam Lock Ring | 5 |
| Inner Fuel Vent Tube | 6 |
| Fuel Main Flap Unit/Fuel Filler Flow Guide Assembly | 7 |
| Mis-Fuel Inhibit Device | 8 |
| Fuel Fill Door Lock Actuator | 9 |
| Fuel Fill Door Adapter | 10 |
| Fuel Capless Cover | 11 |
| Fuel Tank Unit | 12 |
| Fuel Feed Pipe | 13 |
| Fuel Vent Tube | 14 |
| Evaporative Emission (EVAP) Canister Assembly | 15 |
| Fuel Tank Assembly | 16 |
| Fuel Purge Hose | 17 |
| Fuel Purge Pipe | 18 |
| Evaporative Emission (EVAP) Canister Vent Shut Valve | 19 |
| Fuel Tank Pressure (FTP) Sensor | 20 |
| Fuel Main Flap Unit | 21 |
| Fuel Vent Tube B | 22 |
| Evaporative Emission (EVAP) Two Way Valve | 23 |
