Front Passenger's Power Seat Adjustment Switch Test (Without Seat Position Memory System): Test

How to use this service information .

NOTICE:

When working with a vehicle equipped with the electronic air suspension, be sure to set it to the leveling off mode to prevent unexpected operation. Refer to the Electronic Air Suspension System Service Precautions - Refer to: Electronic Air Suspension System Connector Fitting Precautions or Electronic Air Suspension System Service Precautions for the procedure.

1. Front Passenger's Power Seat Adjustment Switch - Test

   Preconditions

   • Front Passenger's Seat Recline Cover Removed

   Procedure/Specifications

   • Check the switch according to the table. (Figure 1, 2, and 3)

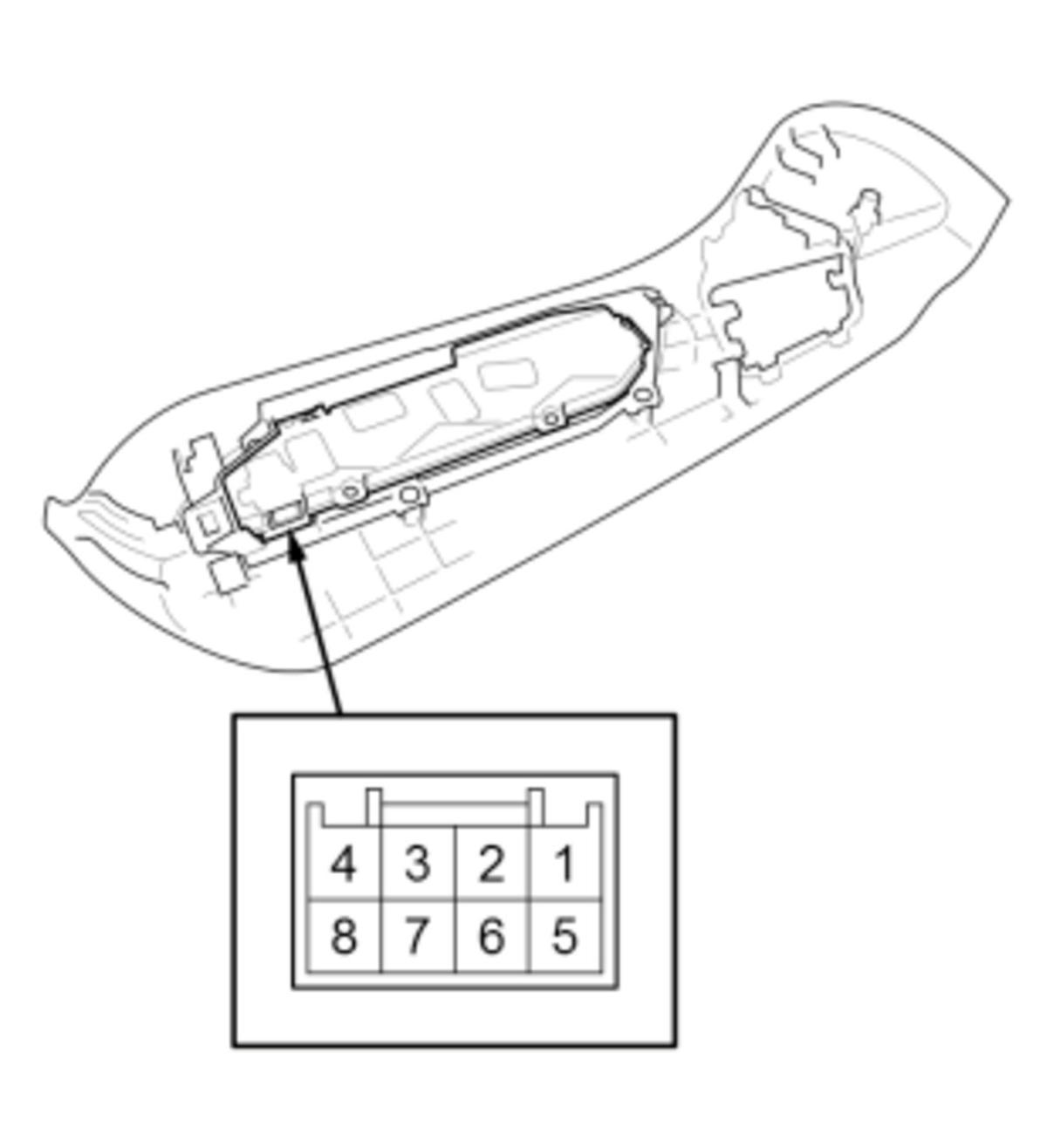

   Figure 1

   Courtesy of HONDA, U.S.A., INC.

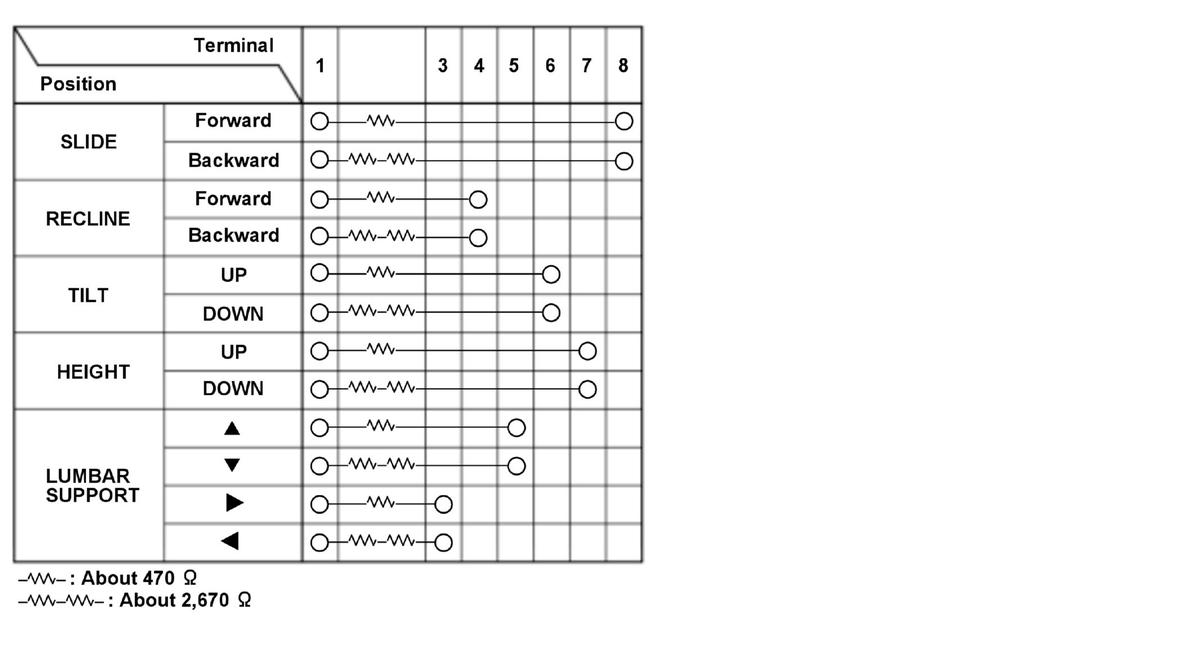

   Without 16-way power seat (Figure 2)

   Courtesy of HONDA, U.S.A., INC.

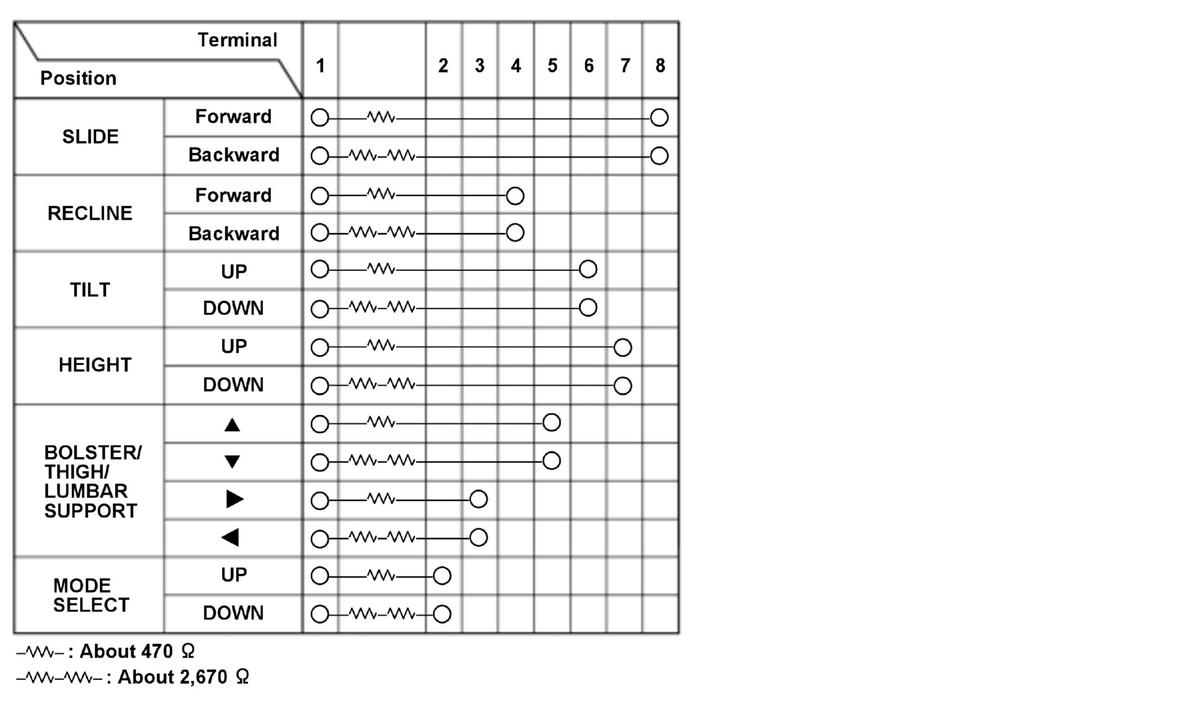

   With 16-way power seat (Figure 3)

   Courtesy of HONDA, U.S.A., INC.

   Result

   • If the result is not as specified, replace the front passenger's power seat adjustment switch .
