Tuner Unit Connector For Inputs And Outputs
| Connector Index |
| Tuner Unit Connector A (8P) |
| Tuner Unit Connector B (2P) |
| Tuner Unit Connector C (2P) |
| Tuner Unit Connector D (5P) |
| Tuner Unit Connector E (2P) (With XM) |

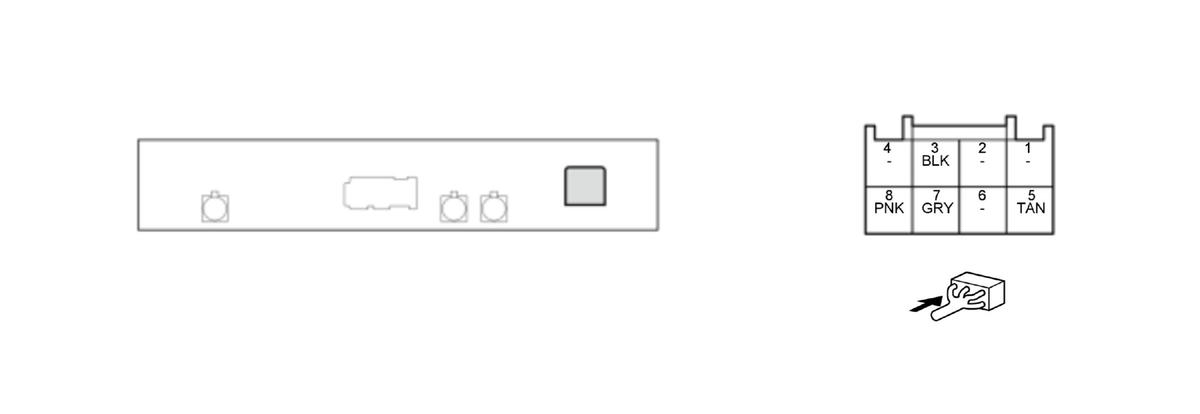

Tuner Unit Connector A (8P) (female terminals)
 Courtesy of HONDA, U.S.A., INC.
|
| Cavity |
Terminal Name |
Description |
| A1 |
Not used |
--- |
| A2 |
Not used |
--- |
| A3 |
GND |
Ground for tuner unit (G503) |
| A4 |
Not used |
--- |
| A5 |
+B_AUDIO |
Continuous power source |
| A6 |
Not used |
--- |
| A7 |
MOST_ECL |
Inputs ECL signal |
| A8 |
MOST_ECL |
Outputs ECL signal |

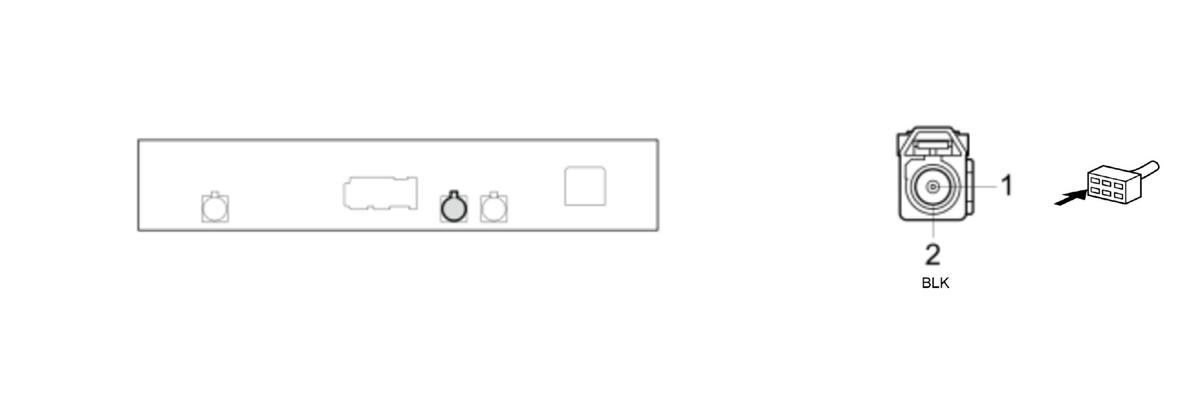

Tuner Unit Connector B (2P) (female terminals)
 Courtesy of HONDA, U.S.A., INC.
|
| Cavity |
Terminal Name |
Description |
| B1 |
MOST RX+ |
Inputs MOST communication signal |
| B2 |
MOST RX- |
Shield for terminal No. 1 |

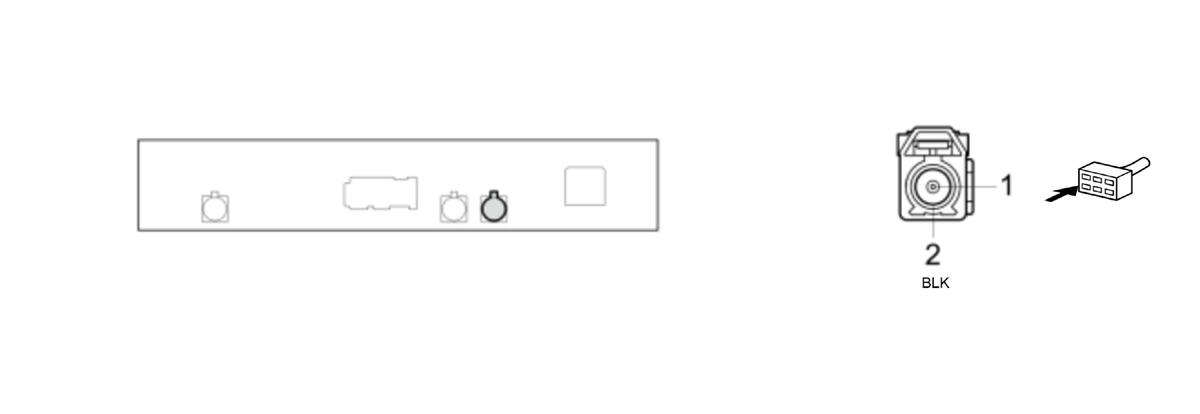

Tuner Unit Connector C (2P) (female terminals)
 Courtesy of HONDA, U.S.A., INC.
|
| Cavity |
Terminal Name |
Description |
| C1 |
MOST TX+ |
Outputs MOST communication signal |
| C2 |
MOST TX- |
Shield for terminal No. 1 |

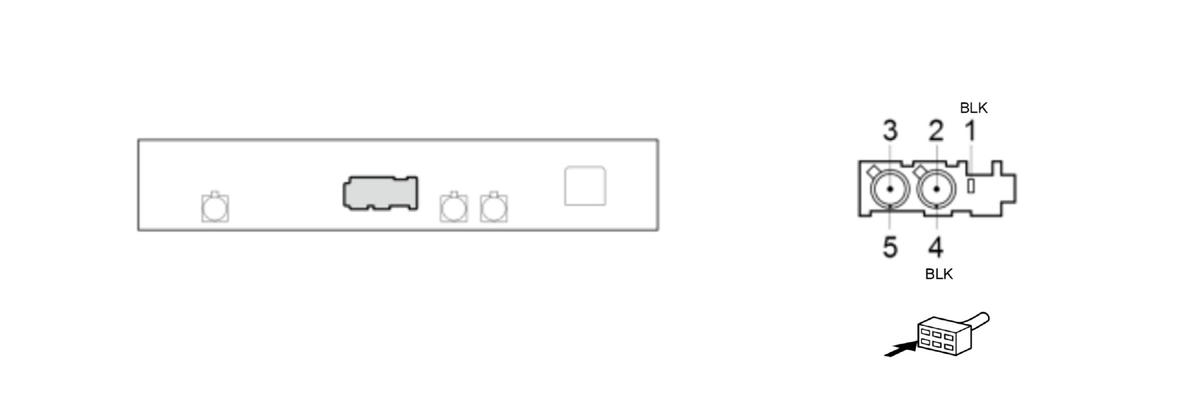

Tuner Unit Connector D (5P) (female terminals)
 Courtesy of HONDA, U.S.A., INC.
|
| Cavity |
Terminal Name |
Description |
| D1 |
SWD +B |
Power source for roof antenna (AM/FM) |
| D2 |
AM/FM |
Inputs AM/FM signal |
| D3 |
Not used |
--- |
| D4 |
SH(AM/FM) |
Shield for terminal No. 2 |
| D5 |
Not used |
--- |

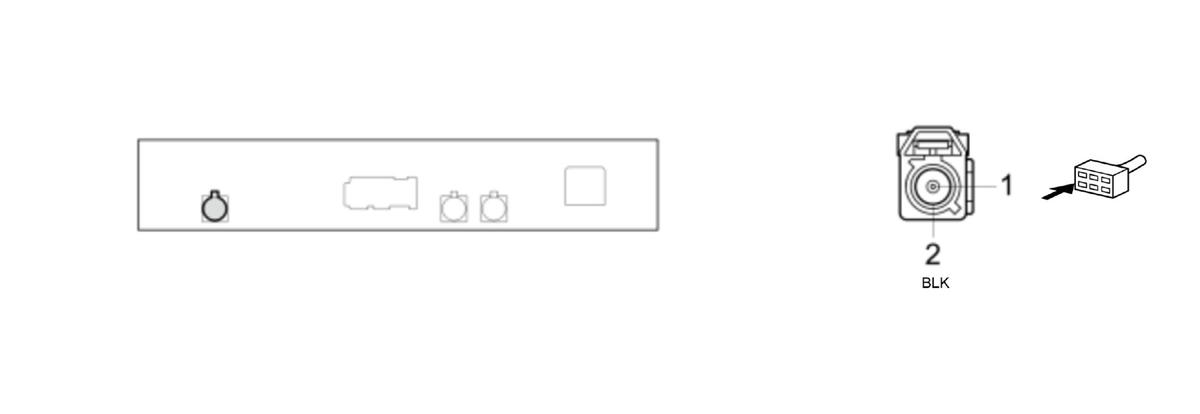

Tuner Unit Connector E (2P) (female terminals) (With XM)
 Courtesy of HONDA, U.S.A., INC.
|
| Cavity |
Terminal Name |
Description |
| E1 |
XM ANT |
Inputs satellite/terrestrial signal |
| E2 |
SH(XM ANT) |
Shield for terminal No. 1 |
