Exploded View
For replacement of components listed below, see Repair Procedure

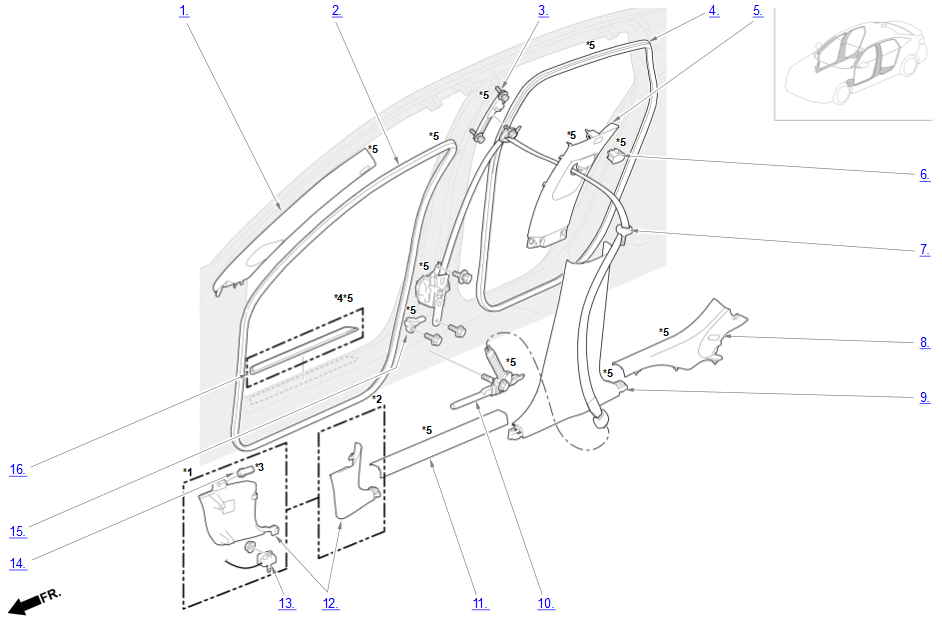

*1: Driver's side*2: Passenger's side*3: With driver's footwell light*4: With front side outer trim*5: Part(s) are shown for one side only as the procedure is the same for both sides.

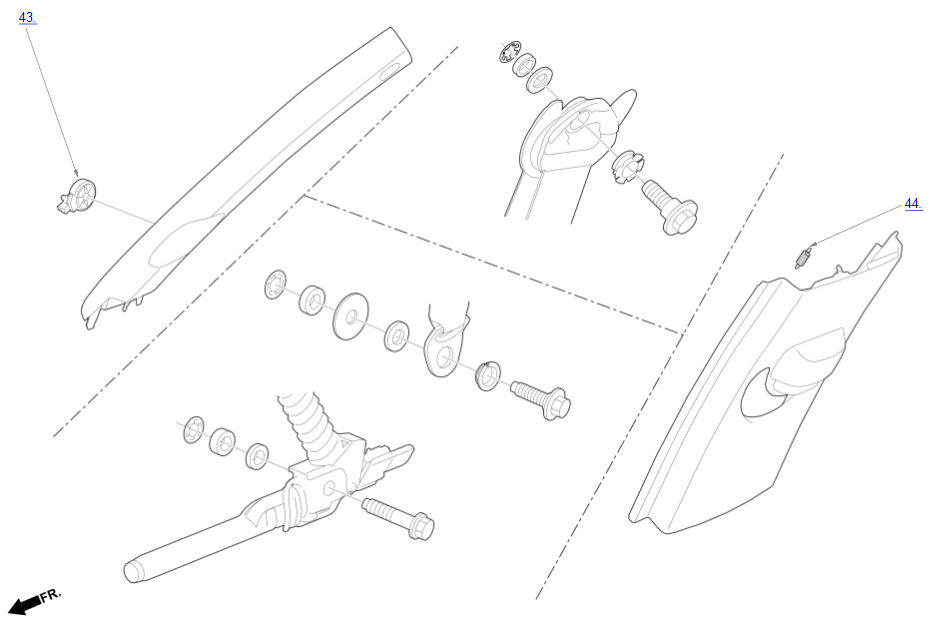

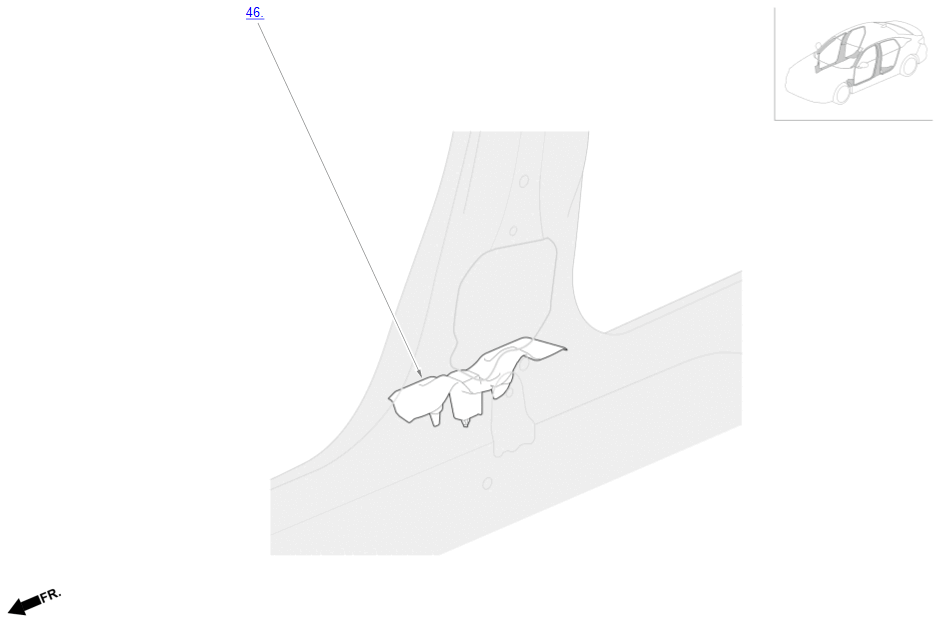

*1: Part(s) are shown for one side only as the procedure is the same for both sides.

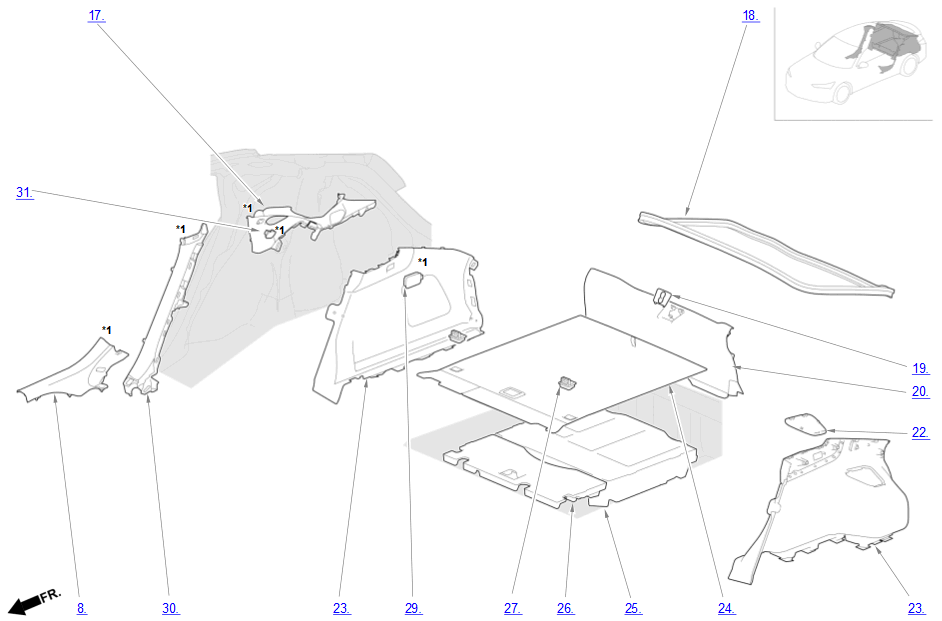

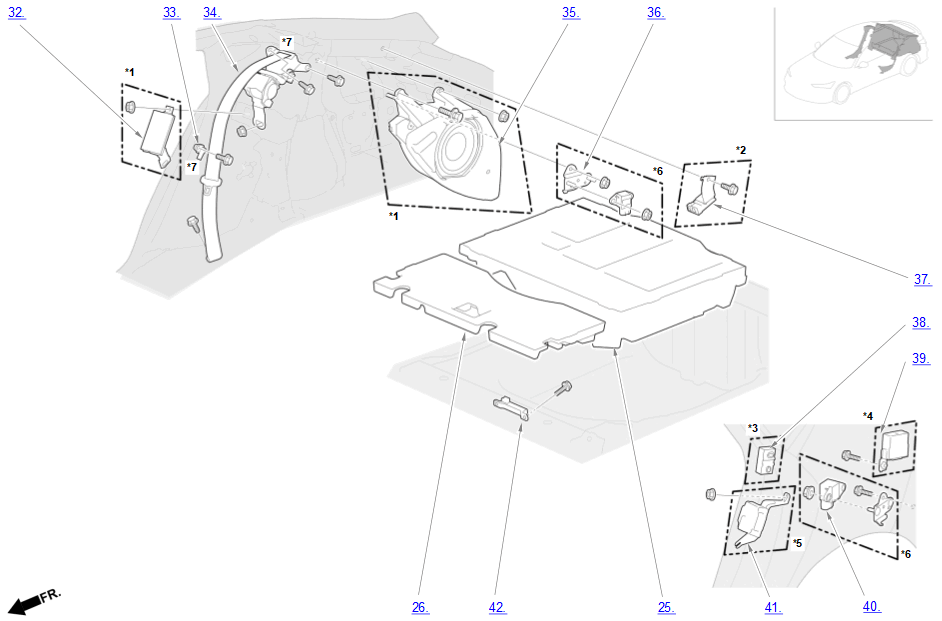

*1: Display audio type (9-inch screen)*2: With 2-way transceiver*3: With rear seat heater control unit*4: With parking and back-up sensor control unit*5: With adaptive damper system*6: Type-S*7: Part(s) are shown for one side only as the procedure is the same for both sides.

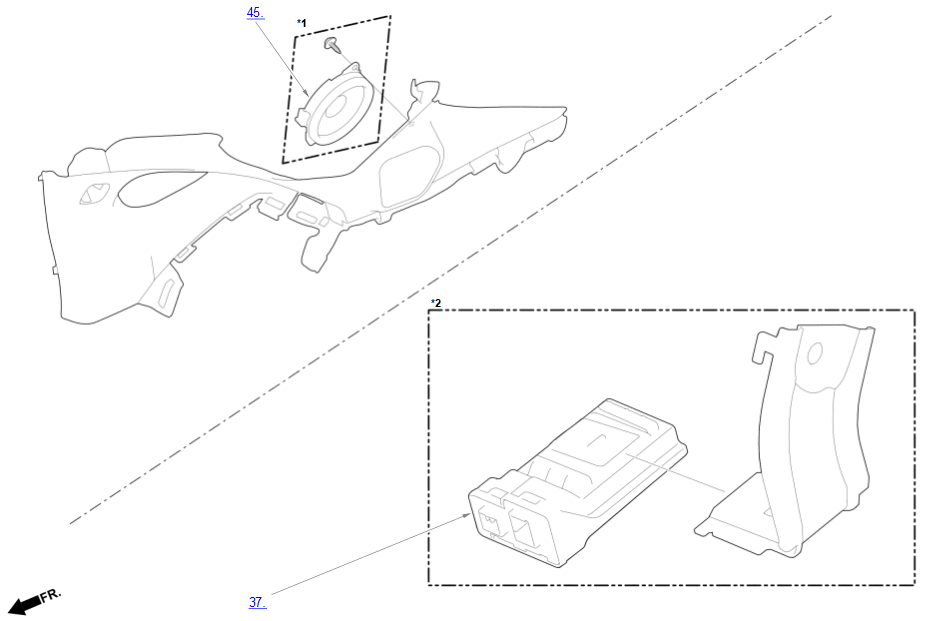

*1: Display audio type (9-inch screen)*2: With 2-way transceiver
Interior Trim Area Components
| Component Name | Callout |
|---|---|
| A-Pillar Trim | 1 |
| Front Door Opening Seal | 2 |
| Seat Belt Shoulder Anchor Adjuster | 3 |
| Rear Door Opening Seal | 4 |
| B-Pillar Upper Trim | 5 |
| B-Pillar Upper Trim Cap | 6 |
| Front Seat Belt | 7 |
| Rear Door Sill Trim | 8 |
| B-Pillar Lower Trim | 9 |
| Front Seat Belt Outer Lap Tensioner | 10 |
| Front Door Sill Trim | 11 |
| Kick Panel | 12 |
| Hood Opener | 13 |
| Driver's Footwell Light | 14 |
| Side Impact Sensor (First) | 15 |
| Front Side Outer Trim | 16 |
| C-Pillar Trim | 17 |
| Tailgate Weatherstrip | 18 |
| Striker Cap | 19 |
| Rear Trim Panel | 20 |
| Side Lid | 21 |
| Emergency Release Cap | 22 |
| Rear Side Trim Panel | 23 |
| Cargo Floor Lid | 24 |
| Cargo Floor Box | 25 |
| Front Trunk Floor Spacer | 26 |
| Tie Down Hook | 27 |
| Cap | 28 |
| Cargo Area Light | 29 |
| Rear Seat Side Trim | 30 |
| C-Pillar Trim Cap | 31 |
| Tuner Unit | 32 |
| Side Impact Sensor (Second) | 33 |
| Rear Seat Belt | 34 |
| Subwoofer | 35 |
| Rear Right Acceleration Sensor | 36 |
| 2-way Transceiver | 37 |
| Rear Seat Heater Control Unit | 38 |
| Parking and Back-Up Sensor Control Unit | 39 |
| Rear Left Acceleration Sensor | 40 |
| Adaptive Damper Control Unit | 41 |
| Rear Interior LF Antenna | 42 |
| Front Tweeter | 43 |
| Spring Coil | 44 |
| Satellite Speaker | 45 |
| B-Pillar Lower Shelf | 46 |
