Exploded View
For replacement of components listed below, see Repair Procedure
*1: Part (s) are shown for one side only as the procedure is the same for both sides.*2: Except Type-S *3: Type-S
*1: Part (s) are shown for one side only as the procedure is the same for both sides.

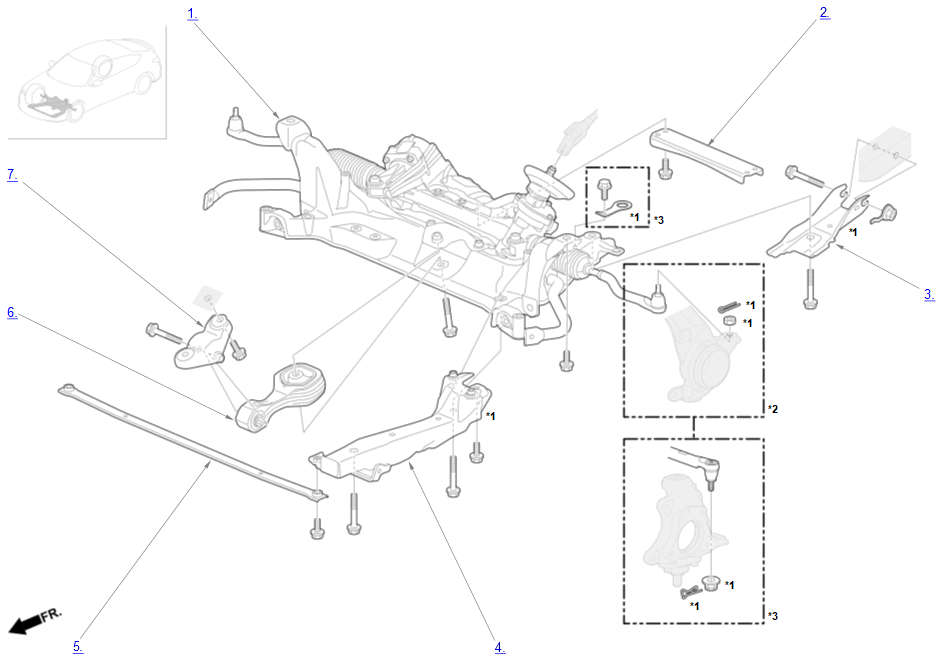

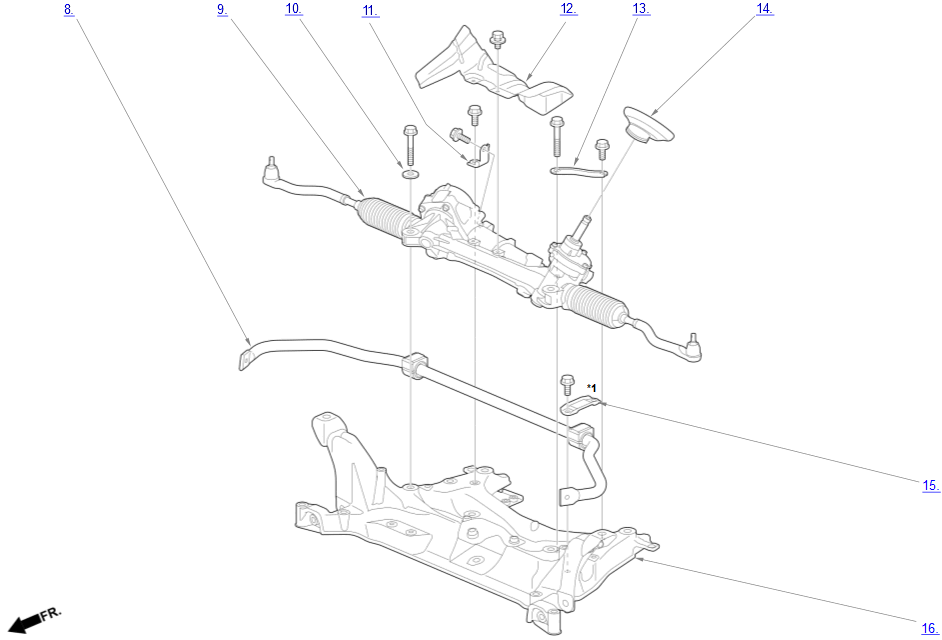

Front_Subframe-Steering_Gearbox_Area Components
| Component Name | Callout |
|---|---|
| Front Subframe/Steering Gearbox Assembly | 1 |
| Front Subframe Brace Rear | 2 |
| Front Subframe Rear Stay | 3 |
| Front Subframe Member Extension | 4 |
| Front Brace | 5 |
| Torque Rod | 6 |
| Torque Rod Bracket | 7 |
| Front Stabilizer Bar | 8 |
| Steering Gearbox | 9 |
| Washer | 10 |
| Steering Gearbox Right Stiffener | 11 |
| Power Steering Heat Baffle Plate | 12 |
| Steering Gearbox Left Stiffener | 13 |
| Pinion Shaft Grommet | 14 |
| Bushing Holder | 15 |
| Front Subframe | 16 |
