Exploded View

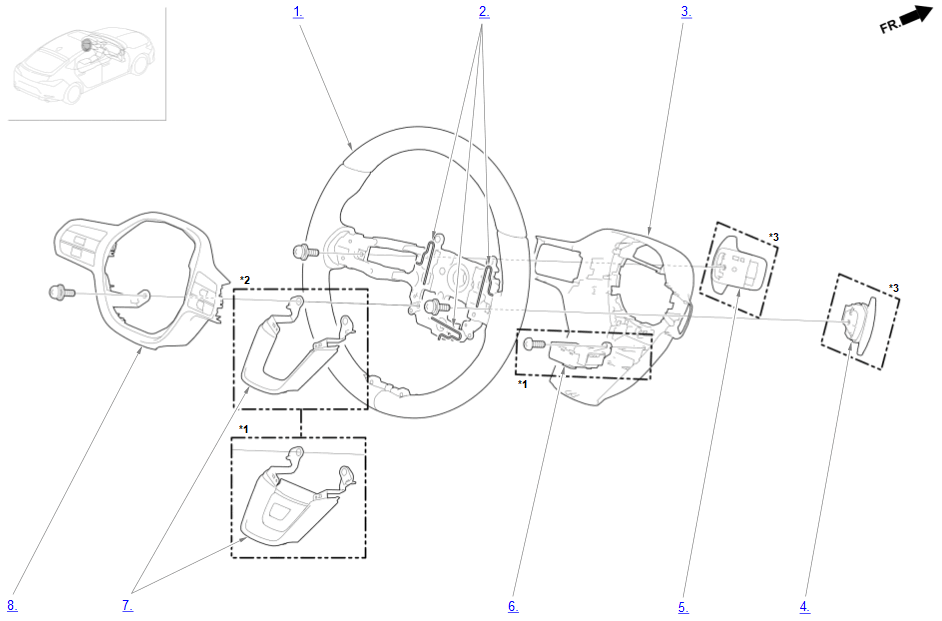

GHH656555Courtesy of HONDA, U.S.A., INC.

*1: With heated steering wheel

*2: Without heated steering wheel

*3: With paddle shifter

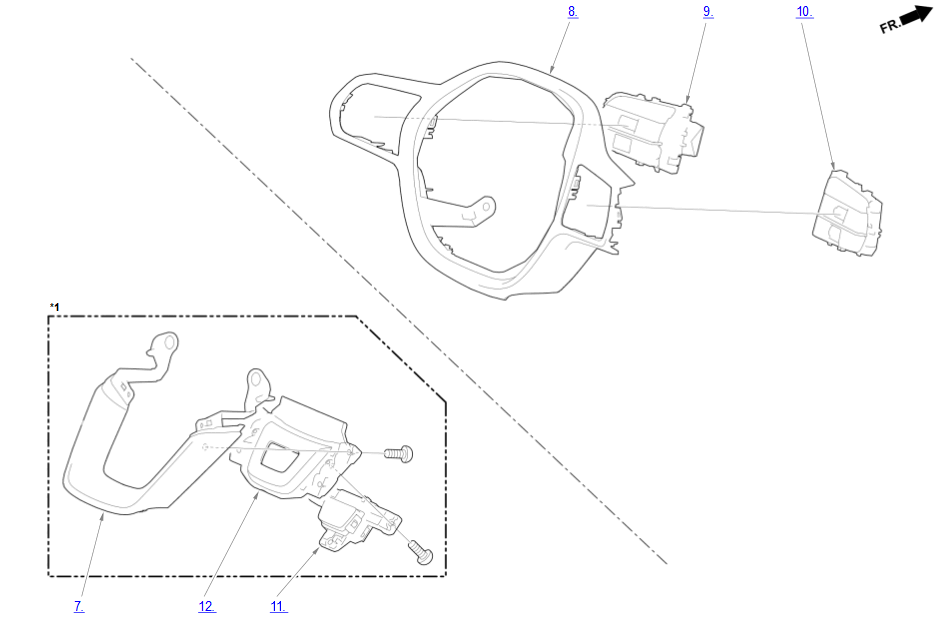

GHH656556Courtesy of HONDA, U.S.A., INC.

*1: With heated steering wheel

  1. Steering Wheel
  2. Spring
  3. Steering Body Cover
  4. Paddle Shifter + (upshift switch)
  5. Paddle Shifter - (downshift switch)
  6. Heated Steering Wheel Control Unit
  7. Steering Wheel Lower Garnish
  8. Steering Wheel Switch Garnish
  9. Audio Remote-HFL Switch
  10. ACC Combination Switch
  11. Heated Steering Wheel Switch
  12. Heated Steering Wheel Switch Garnish
