Exploded View

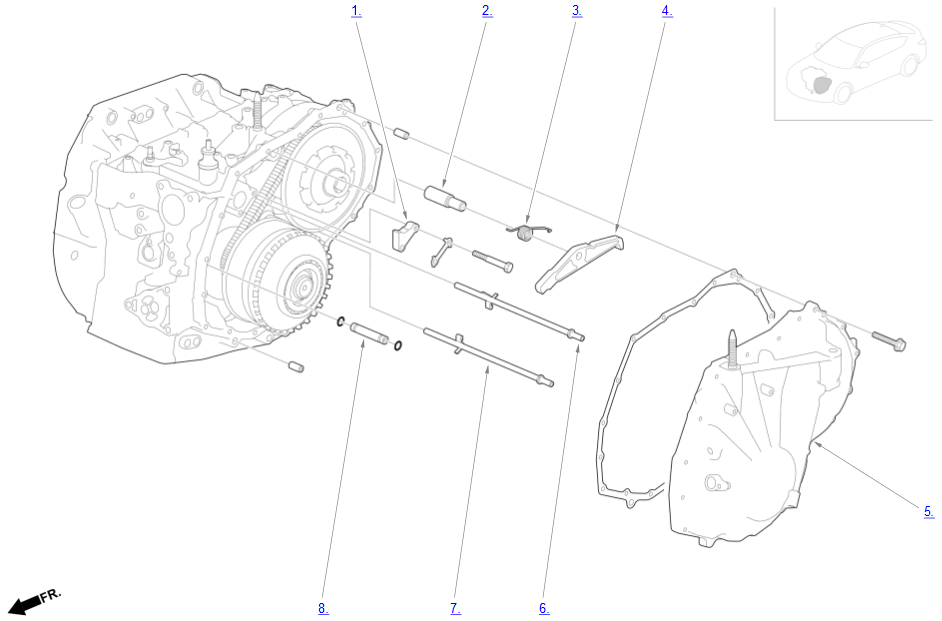

GHH657121Courtesy of HONDA, U.S.A., INC.

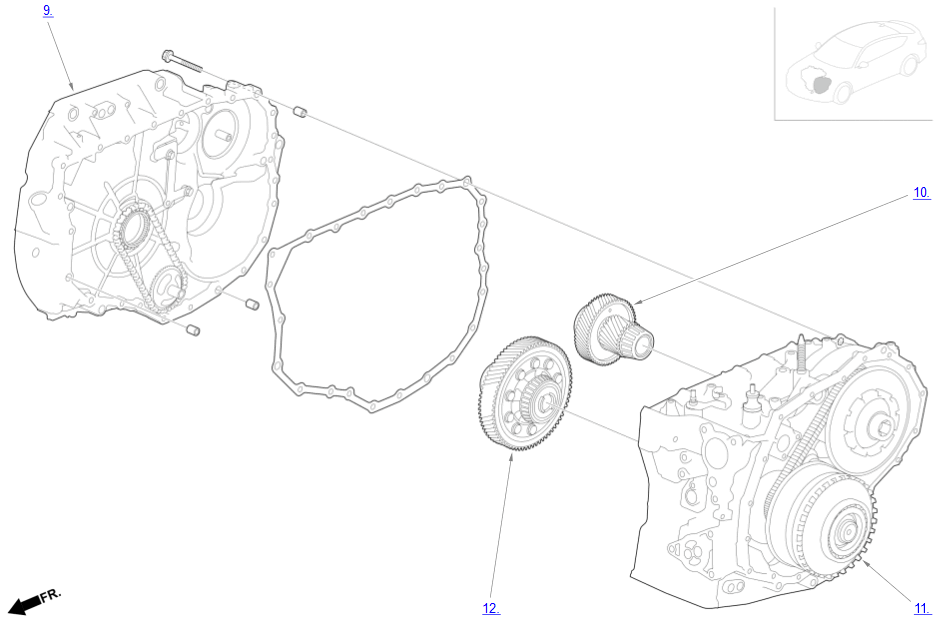

GHH657122Courtesy of HONDA, U.S.A., INC.

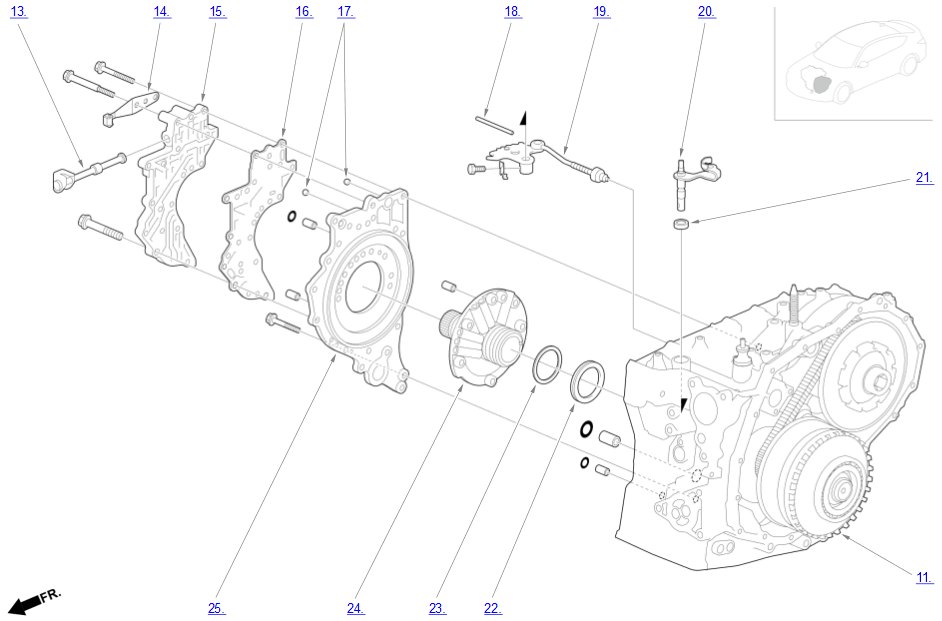

GHH657123Courtesy of HONDA, U.S.A., INC.

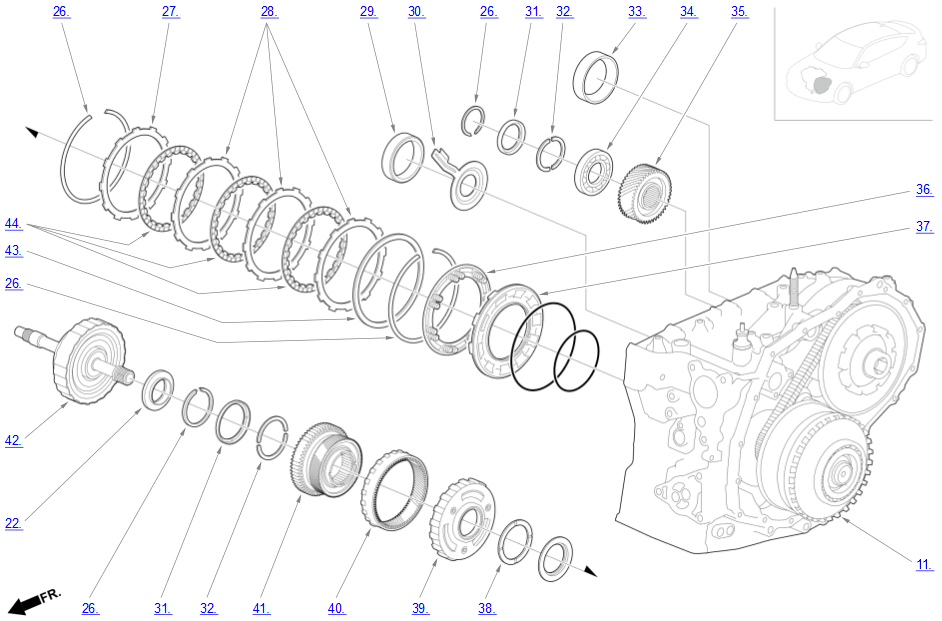

GHH657124Courtesy of HONDA, U.S.A., INC.

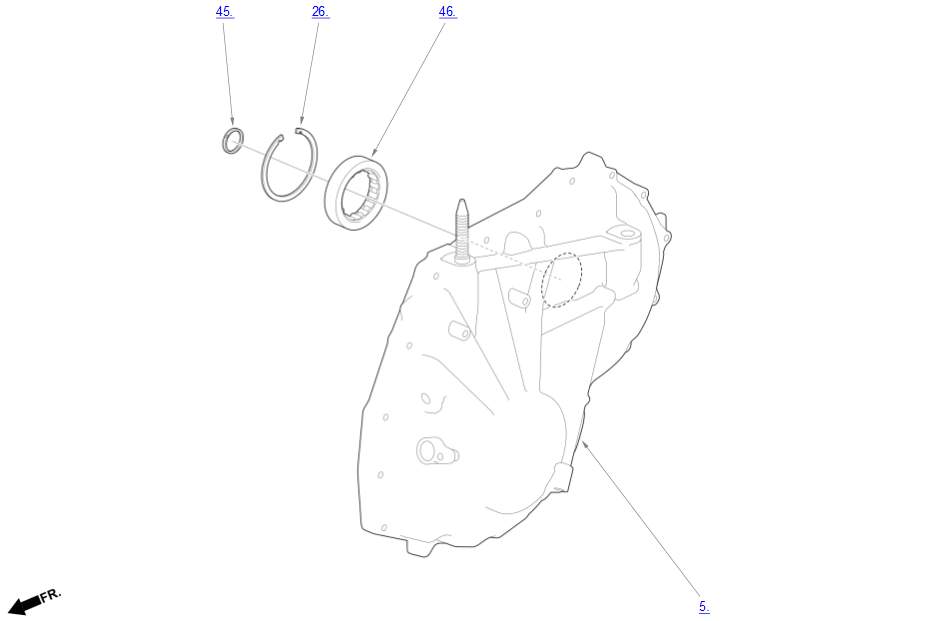

GHH657125Courtesy of HONDA, U.S.A., INC.

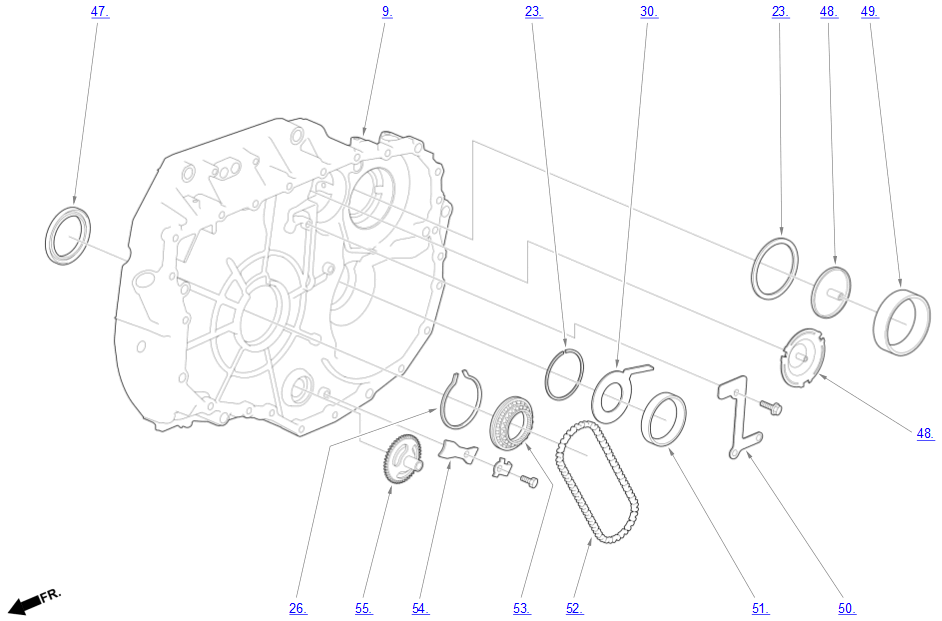

GHH657126Courtesy of HONDA, U.S.A., INC.

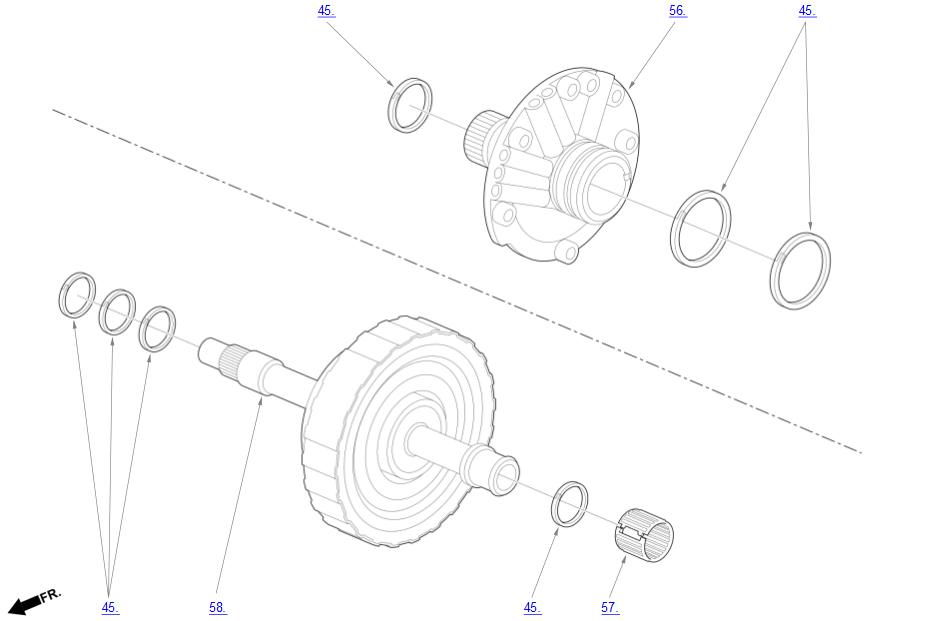

GHH657127Courtesy of HONDA, U.S.A., INC.

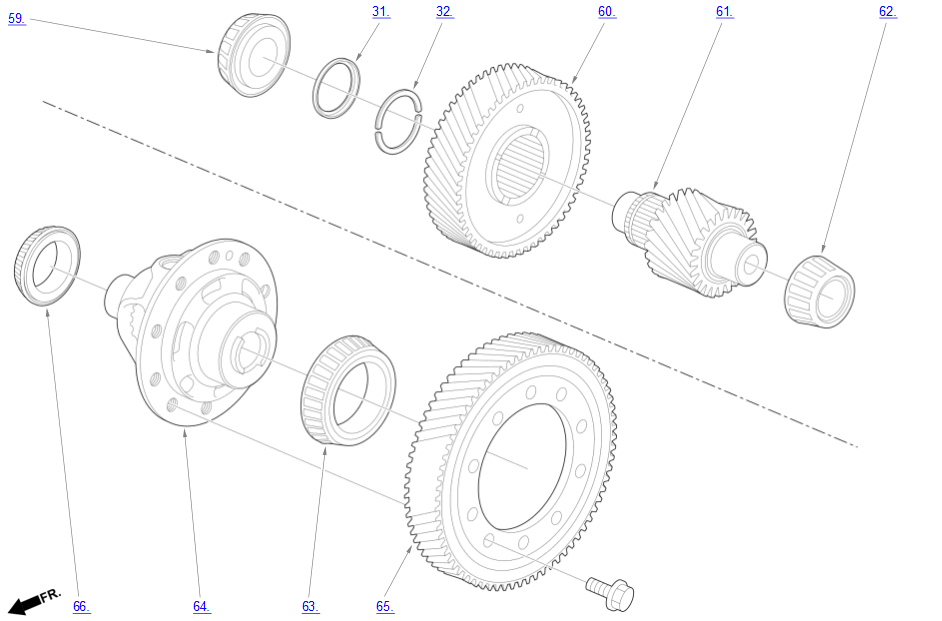

GHH657128Courtesy of HONDA, U.S.A., INC.
  1. Parking Brake Rod Holder
  2. Parking Shaft
  3. Parking Pawl Spring
  4. Parking Brake Pawl
  5. End Cover
  6. Lubrication Pipe D
  7. Lubrication Pipe E
  8. 12 x 89 mm Pipe
  9. Torque Converter Housing
  10. Final Drive Shaft Assembly
  11. Transmission Housing
  12. Differential Assembly
  13. Manual Valve
  14. Detent Spring
  15. Manual Valve Body
  16. Separator Plate
  17. Check Ball
  18. Roller
  19. Detent Lever
  20. Control Shaft
  21. Control Shaft Oil Seal
  22. Thrust Needle Bearing
  23. Thrust Shim
  24. Stator Shaft Assembly
  25. Stator Shaft Flange
  26. Snap Ring
  27. Reverse Brake End-Plate
  28. Reverse Brake Plate
  29. Differential Carrier Tapered Roller Bearing Outer Race (Transmission Housing Side)
  30. Spacer
  31. Cotter Retainer
  32. Cotter
  33. Final Drive Shaft Tapered Roller Bearing Outer Race (Transmission Housing Side)
  34. Driven Pulley Shaft Bearing (Transmission Housing Side)
  35. Secondary Drive Gear
  36. Spring Retainer/Return Spring Assembly
  37. Reverse Brake Piston
  38. Thrust Washer
  39. Planetary Carrier
  40. Ring Gear
  41. Sun Gear
  42. Input Shaft Assembly
  43. Reverse Brake Disc Spring
  44. Reverse Brake Disc
  45. Sealing Ring
  46. Driven Pulley Shaft Bearing (End Cover Side)
  47. Input Shaft Oil Seal
  48. Oil Guide Plate
  49. Final Drive Shaft Tapered Roller Bearing Outer Race (Torque Converter Housing Side)
  50. Lubrication Plate
  51. Differential Carrier Tapered Roller Bearing Outer Race (Torque Converter Housing Side)
  52. Transmission Fluid Pump Drive Chain
  53. Transmission Fluid Pump Drive Sprocket
  54. Bearing Set Plate
  55. Transmission Fluid Pump Driven Sprocket
  56. Stator Shaft
  57. Needle Bearing
  58. Input Shaft
  59. Final Drive Shaft Tapered Roller Bearing (Torque Converter Housing Side)
  60. Secondary Driven Gear
  61. Final Drive Shaft
  62. Final Drive Shaft Tapered Roller Bearing (Transmission Housing Side)
  63. Differential Carrier Tapered Roller Bearing (Transmission Housing Side)
  64. Differential Carrier
  65. Final Driven Gear
  66. Differential Carrier Tapered Roller Bearing (Torque Converter Housing Side)
