Exploded View
For replacement of components listed below, see Repair Procedure
*1: Part(s) are shown for one side only as the procedure is the same for both sides.

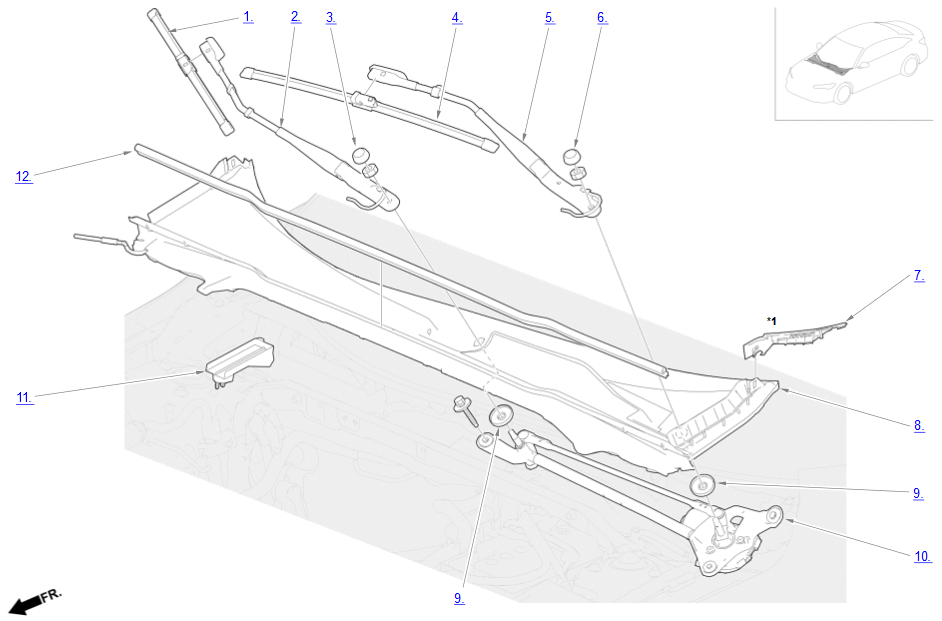

Windshield Wiper Area Components
| Component Name | Callout |
|---|---|
| Passenger's Wiper Blade Assembly | 1 |
| Passenger's Wiper Arm/Washer Nozzle | 2 |
| Passenger's Wiper Arm Cap | 3 |
| Driver's Wiper Blade Assembly | 4 |
| Driver's Wiper Arm/Washer Nozzle | 5 |
| Driver's Wiper Arm Cap | 6 |
| Hood Hinge Cover | 7 |
| Cowl Cover | 8 |
| Protection Cap | 9 |
| Windshield Wiper Linkage/Control Unit/Motor Assembly | 10 |
| Water Guard | 11 |
| Hood Rear Seal | 12 |

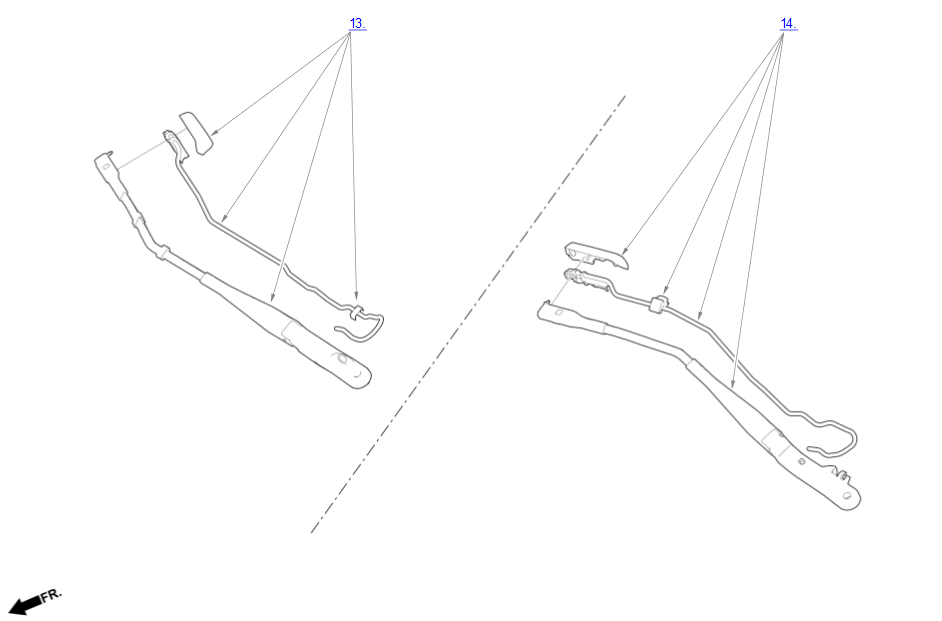

| Passenger's Windshield Washer Nozzle Set | 13 |
| Driver's Windshield Washer Nozzle Set | 14 |
