Repair Procedure

How to use this service information .

Courtesy of HONDA, U.S.A., INC.

: Torque, N.m (lbf.ft)

: Replace

: Warning/Caution

: Inspection/Adjustment

*: Learning

: SPL Tool

: Required Removal

Courtesy of HONDA, U.S.A., INC.

: Torque, N.m (lbf.ft)

: Replace

: Warning/Caution

: Inspection/Adjustment

*: Learning

: SPL Tool

: Required Removal

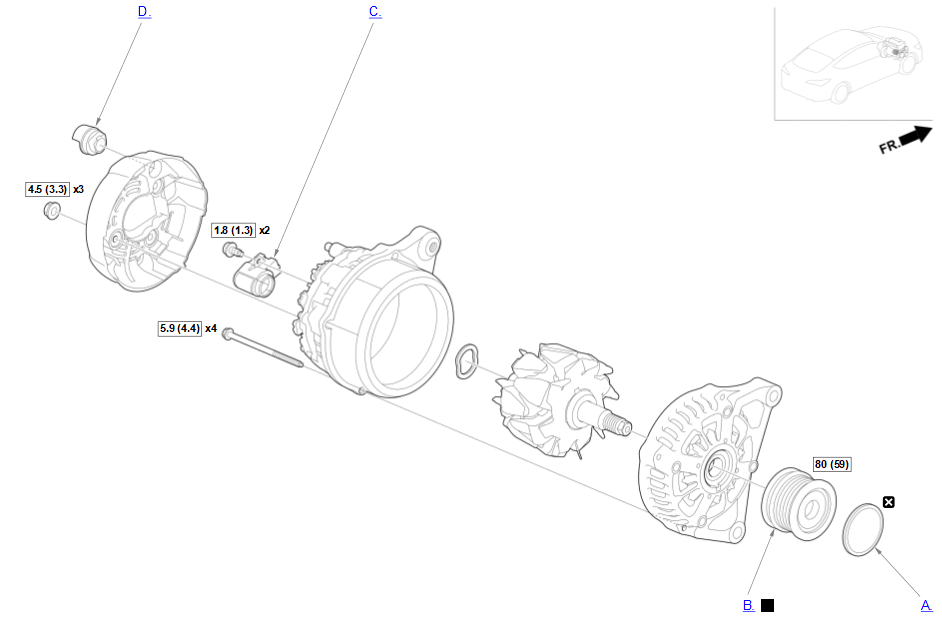

1. A.-

   Sub-Procedure

   NOTICE:

   While the cap is off, the grease inside the OAD pulley is exposed. Do not wipe the grease off, and make sure it does not become contaminated.

   Courtesy of HONDA, U.S.A., INC.

   ■ Removal

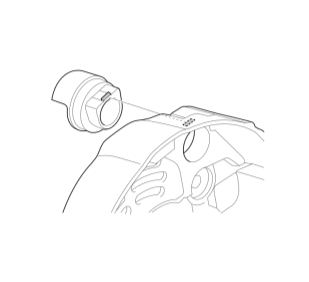

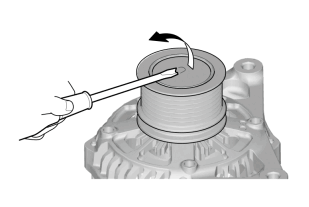

   • Remove the OAD pulley seal cap by piercing the center of the rubber cap with a flat screwdriver and prying it loose.

   ■ Installation

   NOTICE:

   • Do not distort the OAD pulley seal cap.
   • Make sure that the cap is installed securely.
2. B.-

   Sub-Procedure

   NOTICE:

   While the cap is off, the grease inside the OAD pulley is exposed. Do not wipe the grease off, and make sure it does not become contaminated.

   Courtesy of HONDA, U.S.A., INC.

   ■ Removal

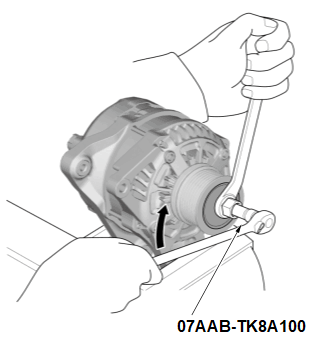

   • Turn the alternator shaft clockwise.
3. C.-

   Sub-Procedure

   Courtesy of HONDA, U.S.A., INC.

   ■ Installation

   Pin Specifications

   Standard Value

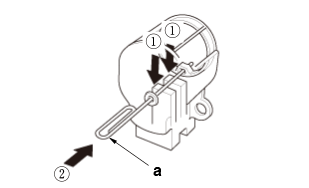

   a	About 1.6 mm (1/16 in)

4. D.-

   Courtesy of HONDA, U.S.A., INC.

   Sub-Procedure

   ■ Removal

   • Refer to the figure.

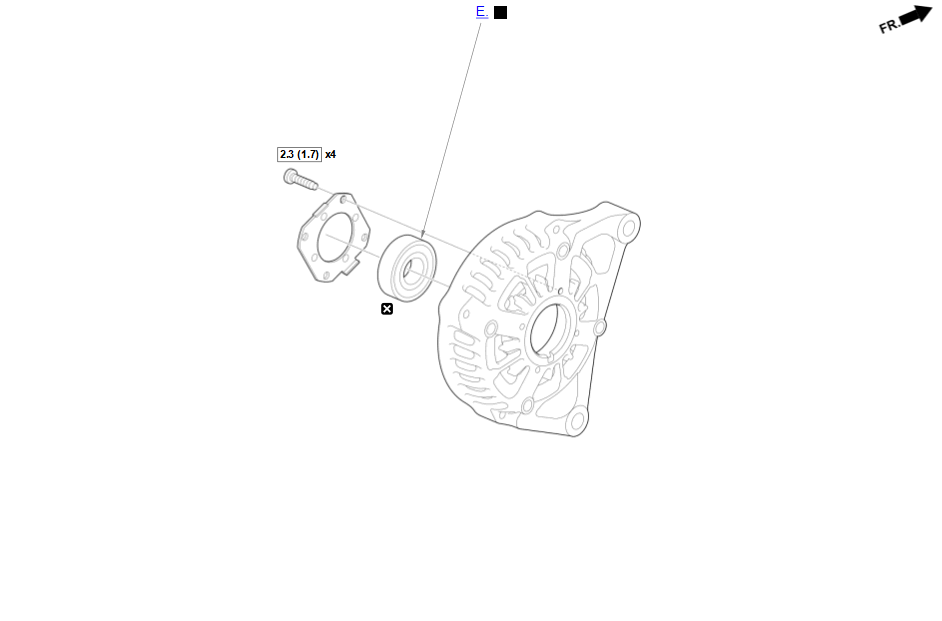

5. E.-

   Sub-Procedure

   Figure 1

   Courtesy of HONDA, U.S.A., INC.

   ■ Removal

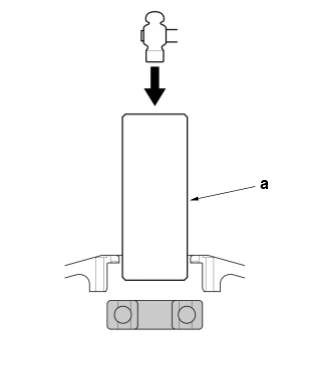

   Tool Details (Figure 1)

   Name
   a	Brass Drift (Commercially Available)

   Figure 2

   Courtesy of HONDA, U.S.A., INC.

   ■ Installation

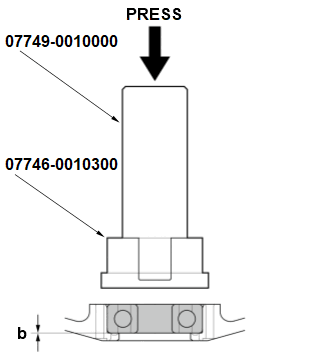

   Specifications (Figure 2)

   Specification
   b	No Clearance
