Exploded View

For replacement of components listed below, see Repair Procedure

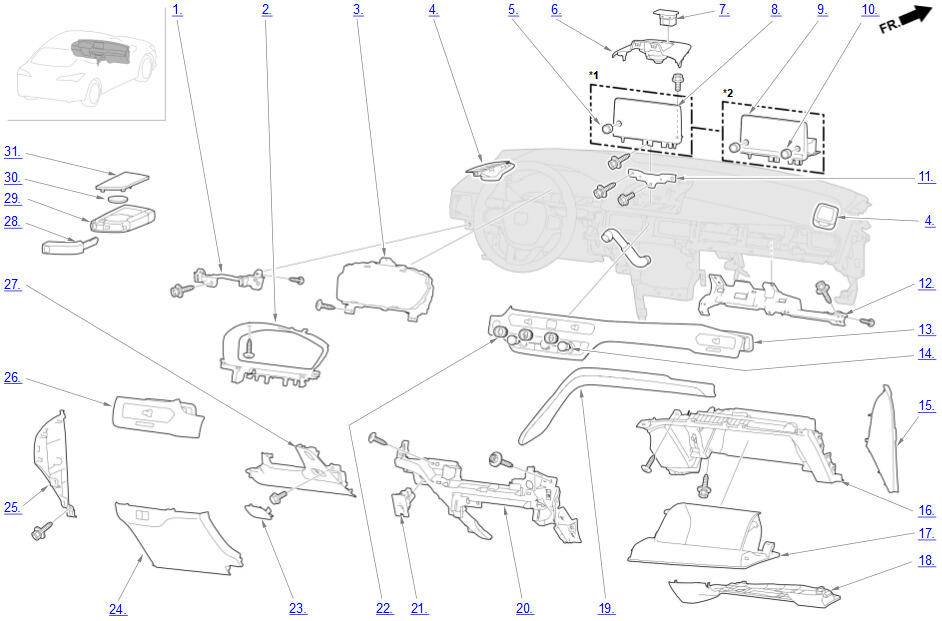

GHH679697Courtesy of HONDA, U.S.A., INC.

*1: Display audio type (9-inch screen)

*2: Color audio type (7-inch screen)

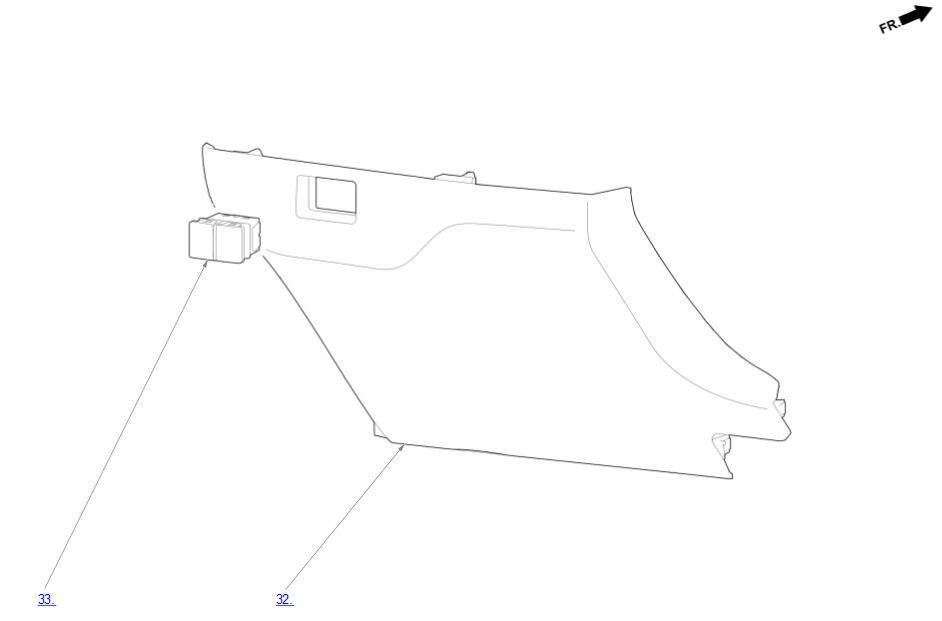

GHH679698Courtesy of HONDA, U.S.A., INC.

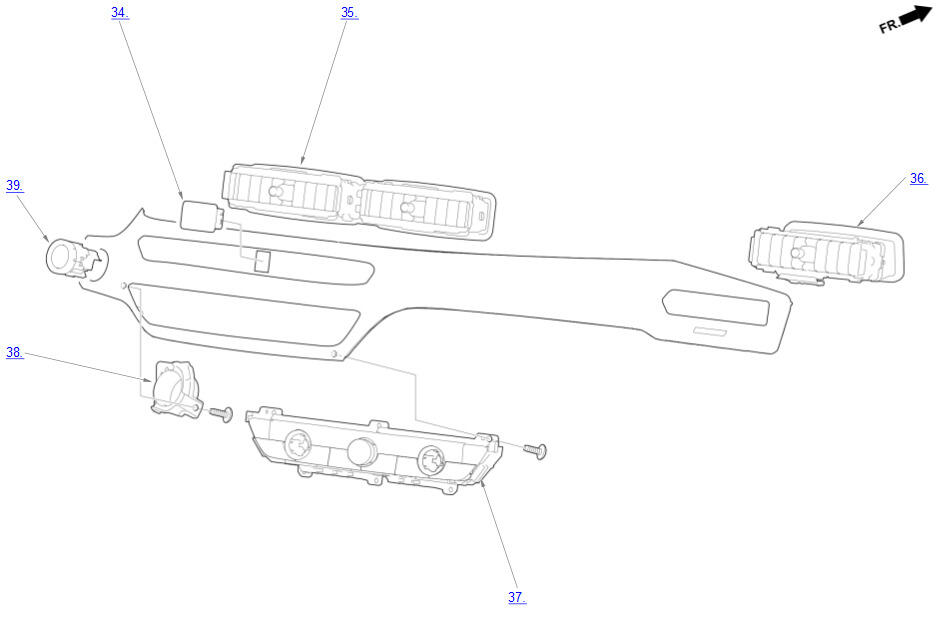

GHH679699Courtesy of HONDA, U.S.A., INC.

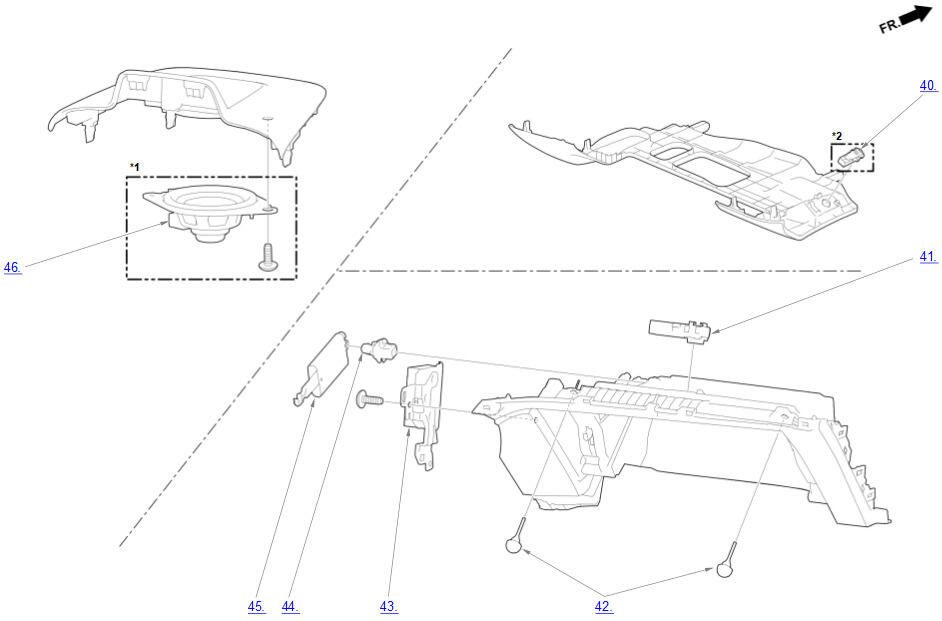

GHH679700Courtesy of HONDA, U.S.A., INC.

*1: Display audio type (9-inch screen)

*2: With front passenger's footwell light

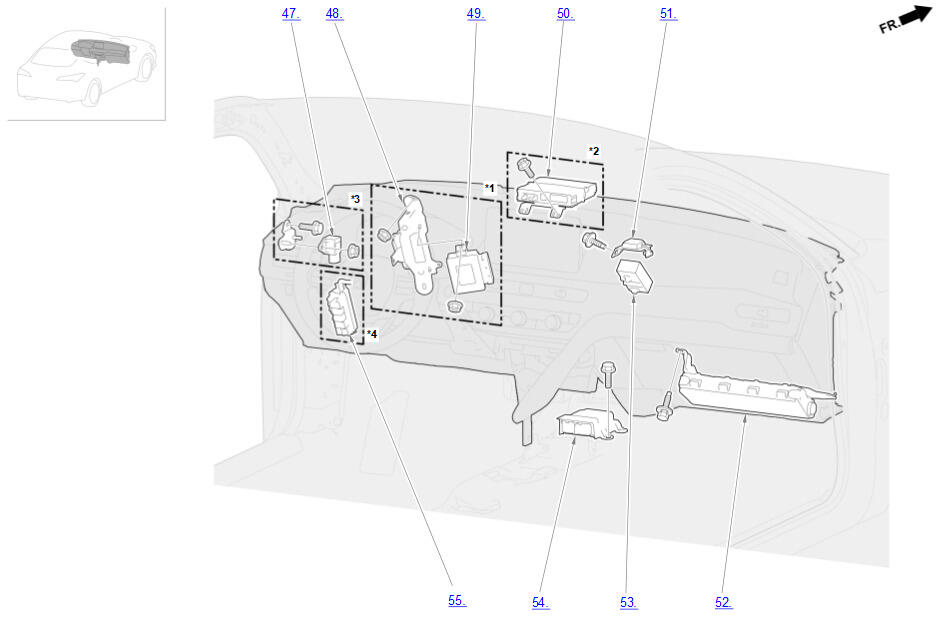

GHH679701Courtesy of HONDA, U.S.A., INC.

*1: With electric vacuum pump system

*2: With telematics control unit

*3: Type-S

*4: Except Type-S

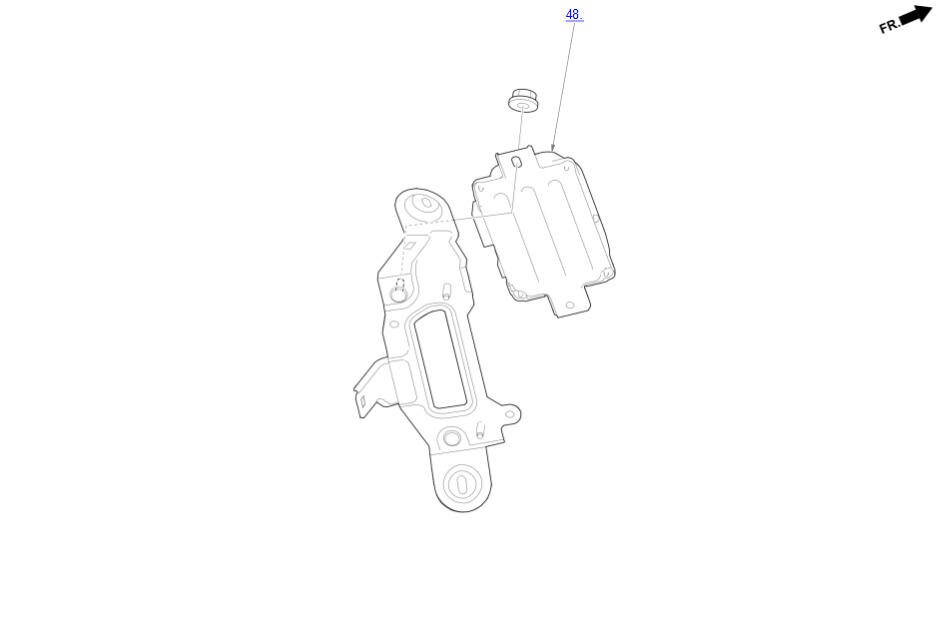

GHH679702Courtesy of HONDA, U.S.A., INC.

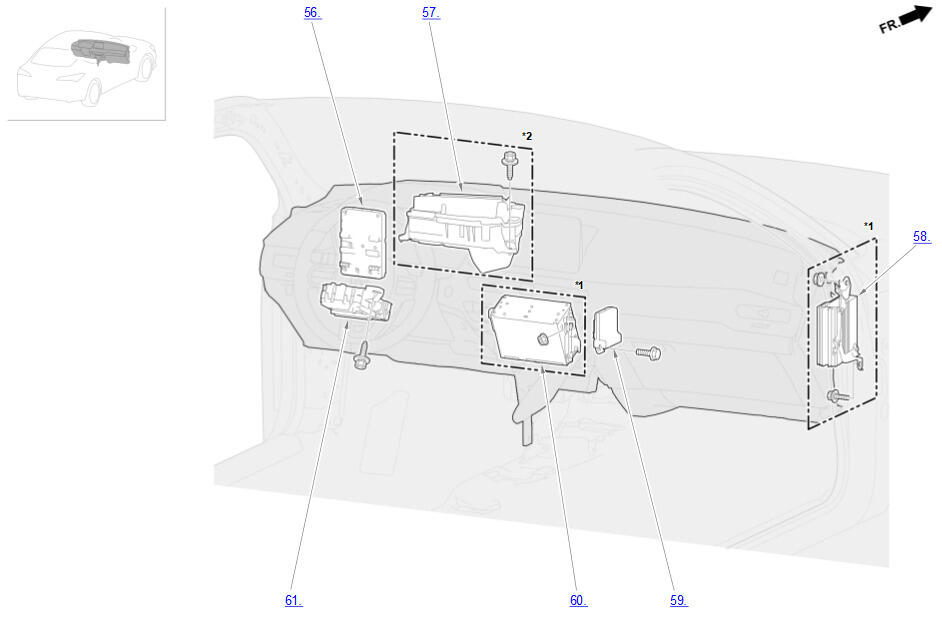

GHH679703Courtesy of HONDA, U.S.A., INC.

*1: Display audio type (9-inch screen)

*2: With head up display

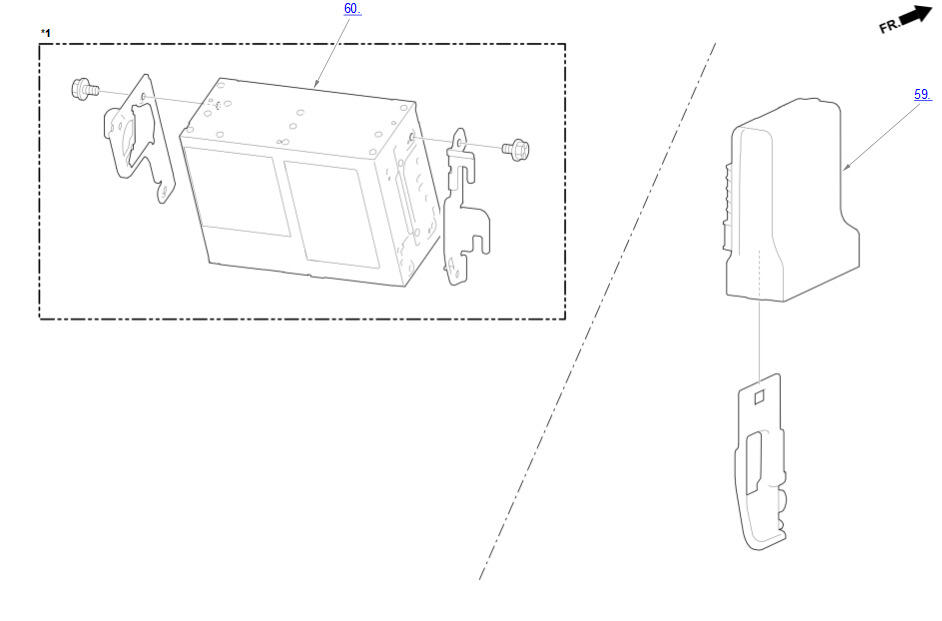

GHH679704Courtesy of HONDA, U.S.A., INC.

*1: Display audio type (9-inch screen)

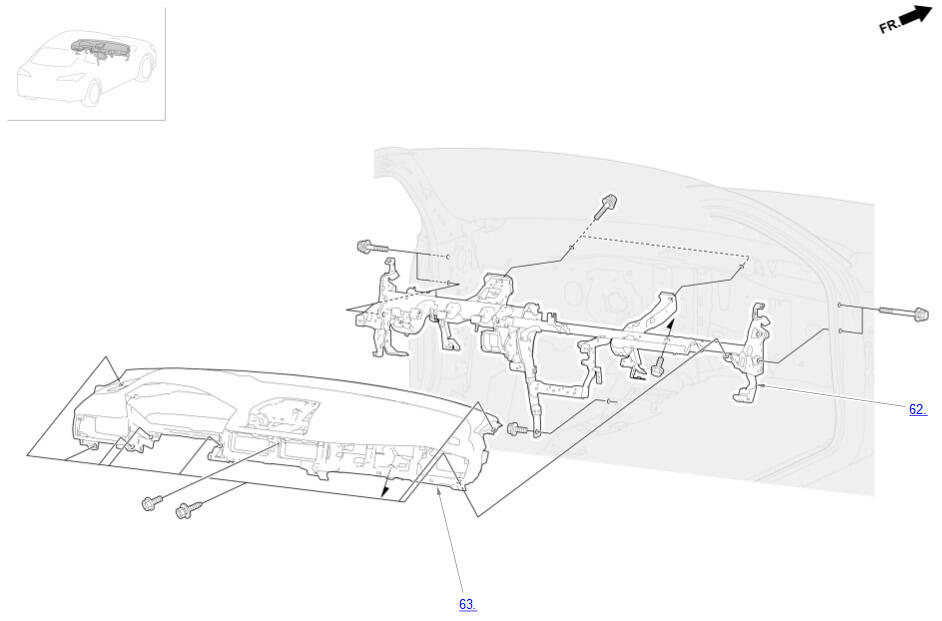

GHH679705Courtesy of HONDA, U.S.A., INC.

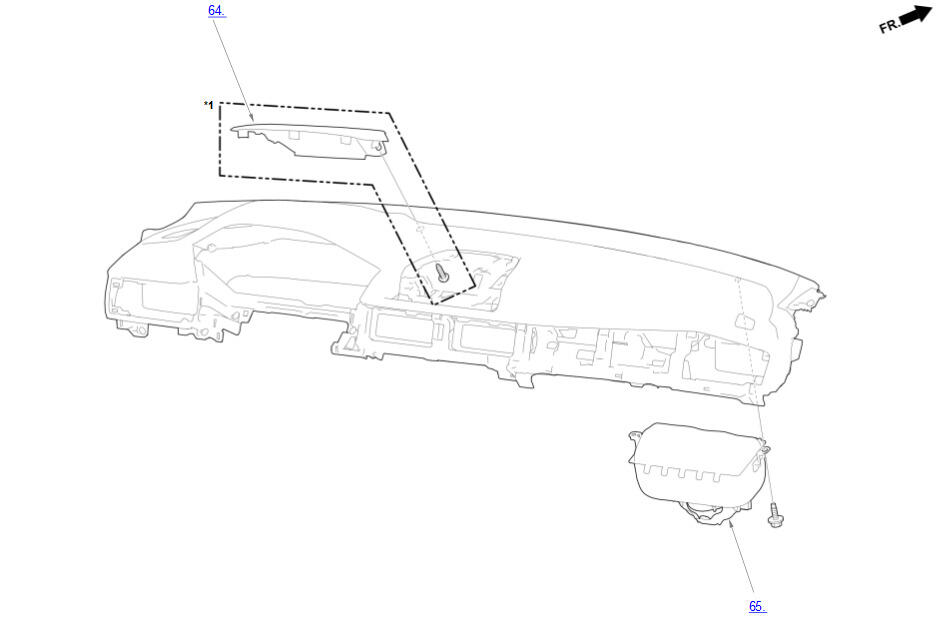

GHH679706Courtesy of HONDA, U.S.A., INC.

*1: With head up display

Dashboard/Steering Hanger Beam Area Components

Component Name Callout
Driver's Dashboard Frame 1
Meter Visor 2
Gauge Control Module 3
Defogger Vent 4
Volume Knob 5
Center Speaker Lid 6
Automatic Lighting Control Unit-Sensor 7
Center Display Unit (Display Audio Type) 8
Audio Unit (Color Audio Type) 9
Rotary Knob 10
Audio Center Bracket 11
Passenger's Dashboard Frame 12
Dashboard Center Trim 13
Dial Knob Panel 14
Passenger's Dashboard Side Lid 15
Glove Box Back Cover 16
Glove Box 17
Passenger's Dashboard Undercover 18
Passenger's Pad 19
Center Lower Cover 20
Humidity/In-Car Temperature Sensor 21
Dial Knob 22
Cap 23
Driver's Dashboard Lower Cover 24
Driver's Dashboard Side Lid 25
Driver's Trim 26
Driver's Knee Airbag 27
Emergency Key 28
Bottom Shell 29
Remote Battery 30
Top Shell 31
Driver's Dashboard Lower Cover 32
Switch Hole Lid/VSA Off Switch 33
Hazard Warning Switch 34
Dashboard Center Vent 35
Passenger's Side Vent 36
Climate Control Switch 37
Switch Trim 38
Engine Start/Stop Switch 39
Front Passenger's Footwell Light 40
Glove Box Light 41
Glove Box Stopper 42
Active Sound Control Unit 43
Cylinder Clip 44
Glove Box Damper 45
Front Center Speaker 46
Front Acceleration Sensor 47
DC-DC Converter 48
Electric Vacuum Pump Control Unit 49
Telematics Control Unit 50
GNSS Antenna 51
Passenger's Knee Airbag 52
Front Seat Heater Control Unit 53
SRS Unit 54
Fuse/Relay Holder 55
Body Control Module 56
Head Up Display 57
Stereo Amplifier 58
CAN Gateway 59
Audio Unit (Display Audio Type) 60
Under-Dash Fuse/Relay Box 61
Steering Hanger Beam 62
Dashboard 63
Head Up Display Cover 64
Front Passenger's Airbag 65
