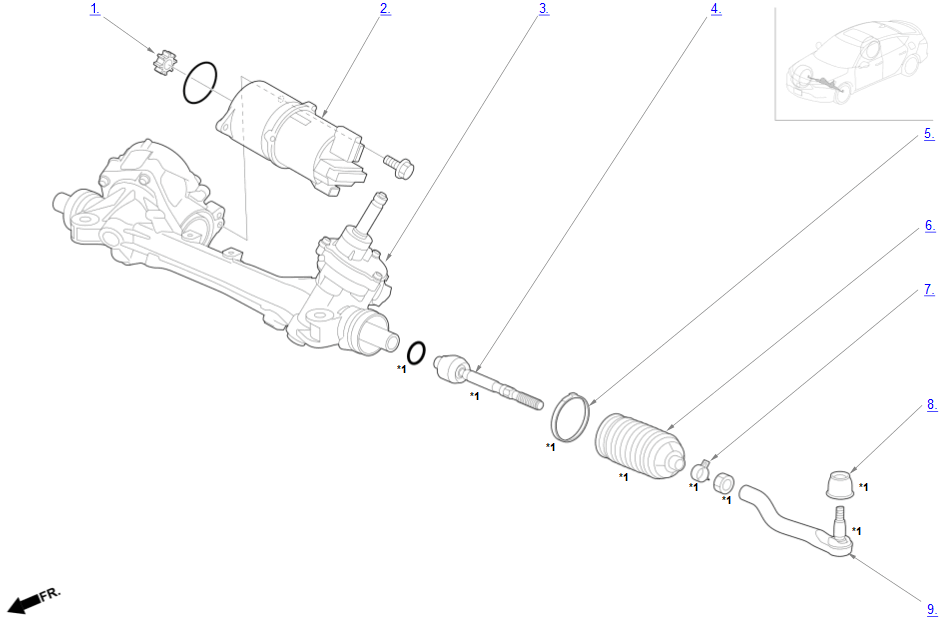

Exploded View

Courtesy of HONDA, U.S.A., INC.

*1: Part(s) are shown for one side only as the procedure is the same for both sides.

1. Motor Bush
2. EPS Motor/Control Unit
3. Steering Gearbox
4. Rack End
5. Boot Band
6. Boot
7. Tie-Rod Clip
8. Tie-Rod End Ball Joint Boot
9. Tie-Rod End
