Exploded View
For replacement of components listed below, see Repair Procedure

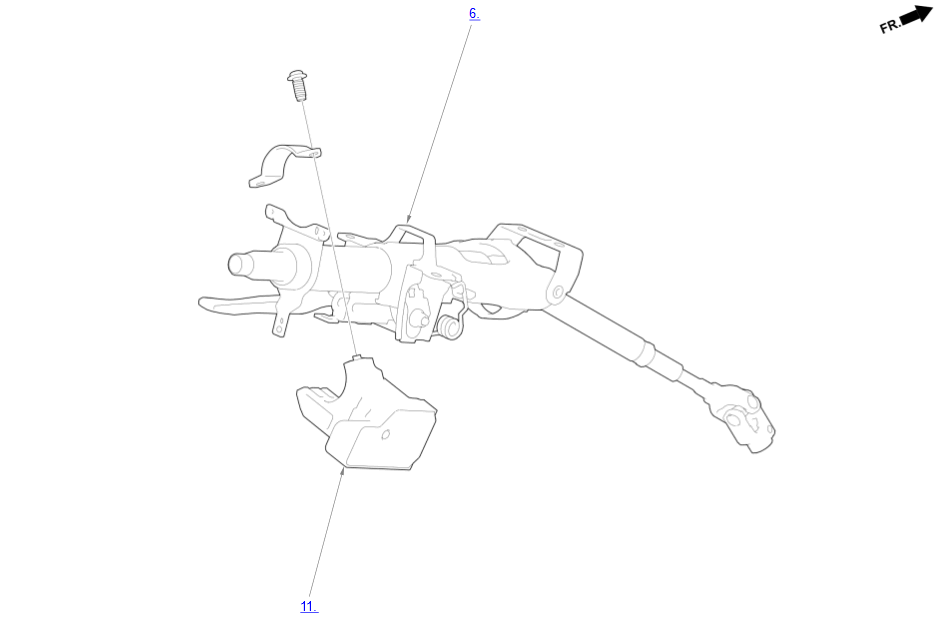

With Electric Steering Lock

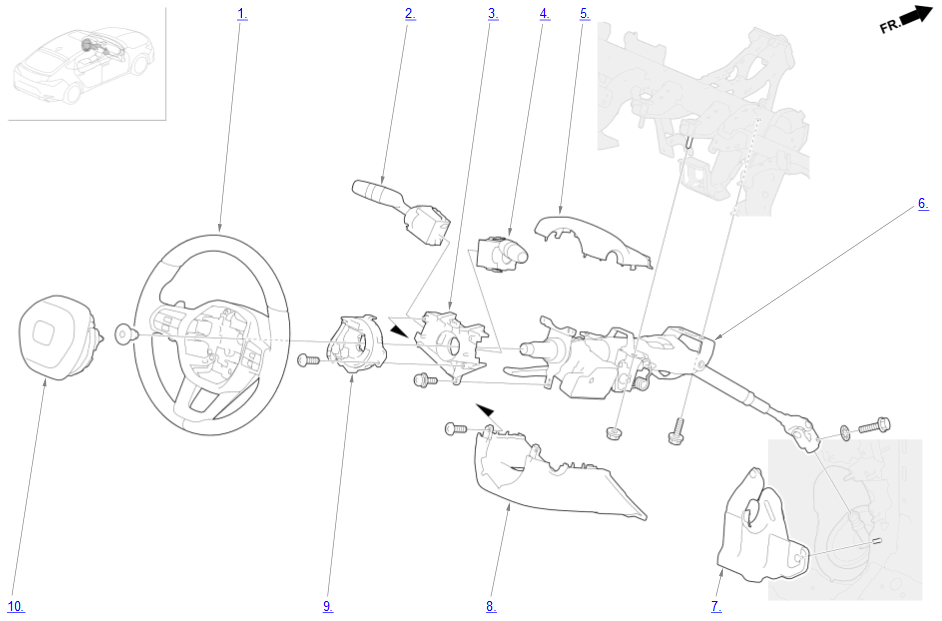

Steering Wheel/Column Area Components
| Component Name | Callout |
|---|---|
| Steering Wheel | 1 |
| Combination Light Switch | 2 |
| Switch Body | 3 |
| Wiper/Washer Switch | 4 |
| Upper Column Cover | 5 |
| Steering Column | 6 |
| Steering Joint Cover | 7 |
| Lower Column Cover | 8 |
| Cable Reel | 9 |
| Driver's Airbag | 10 |
| Electric Steering Lock | 11 |
