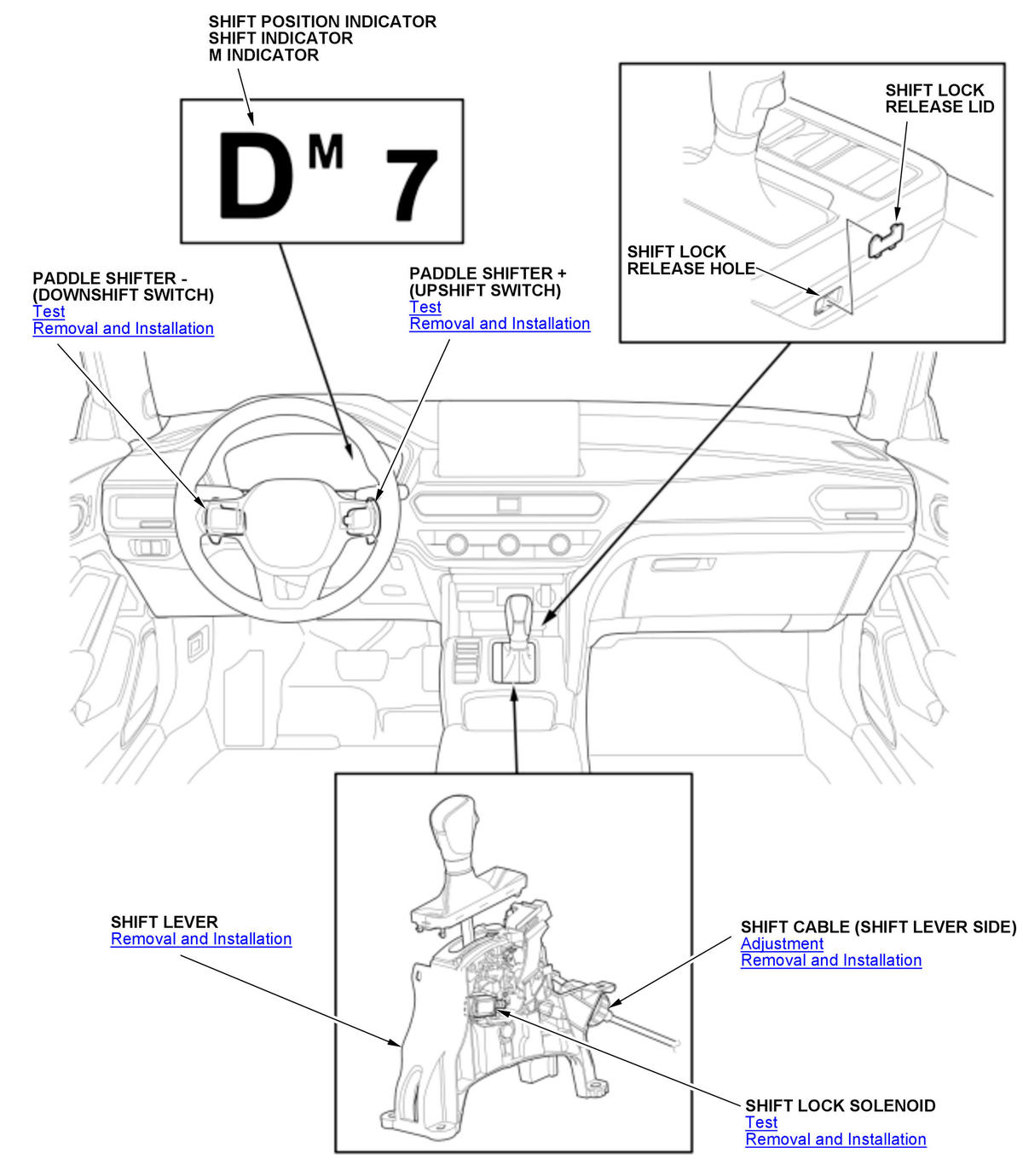

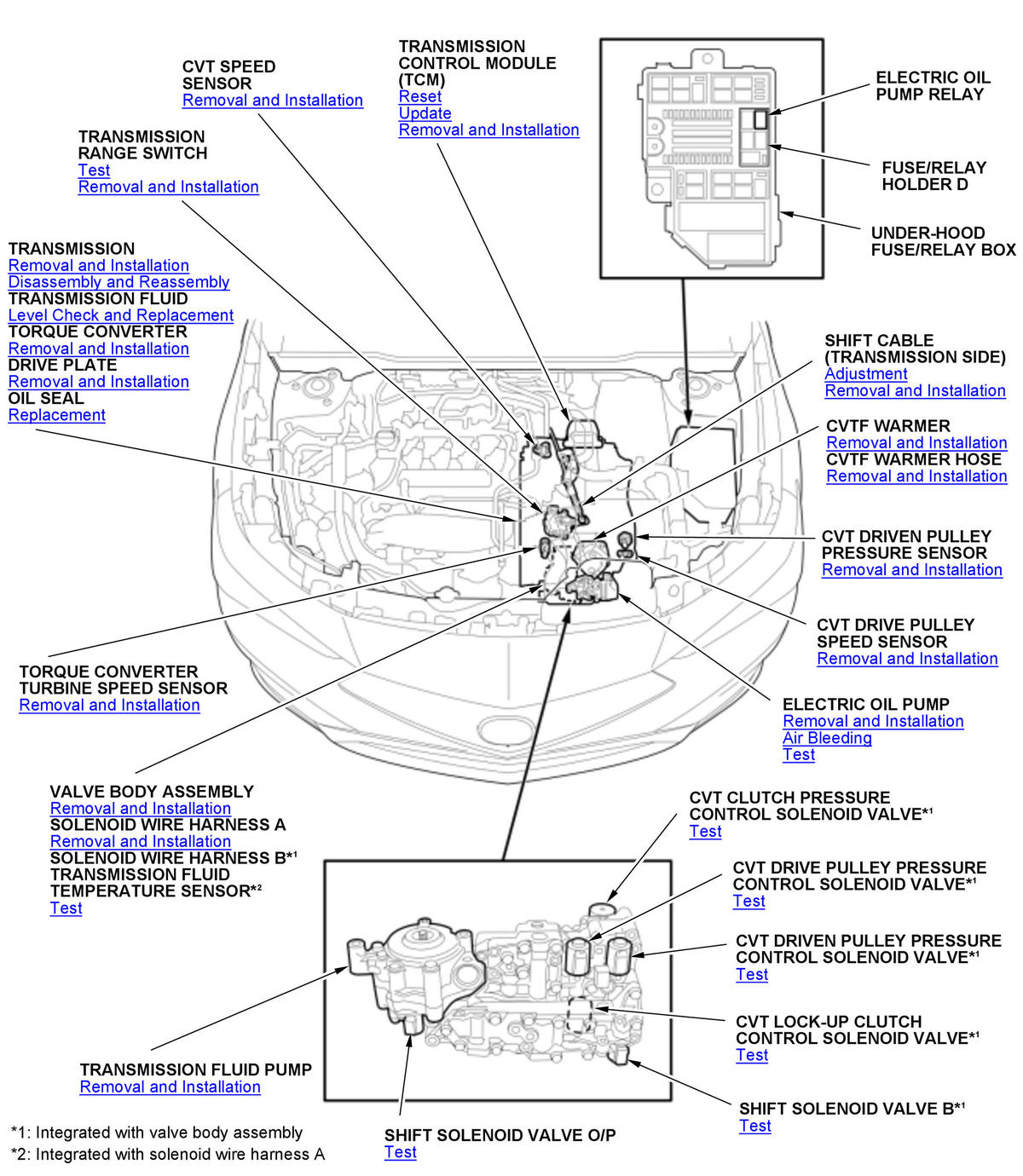

CVT System Component Location Index (CVT)

For relationships between signals in a system, refer to System Diagram - Refer to: CVT System Description - Lock-Up System (CVT)  or CVT System Description - Electronic Control System (CVT) .

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.
