Functional Setup

These screens allows for diagnosis and settings about functions of the infotainment control unit.

Select the item you want to check, and the test begins. To return to the previous screen, select the RETURN icon.

Functional Setup
ANTI-THEFT SKIP	DRIVER DISTRACTION
APPLE CARPLAY	ANDROID AUTO
ARTWORK DISPLAY FOR HD RADIO	TOTAL OPERATION TIME
LANEWATCH DETAILED INFORMATION DISPLAY *	OTA

*: Not supported

Anti-Theft Skip

This selection can cancel the anti-theft mode temporarily (until the vehicle is turned to the OFF (LOCK) mode).

The ANTI-THEFT SKIP icon is grayed out when the anti-theft mode is already canceled.

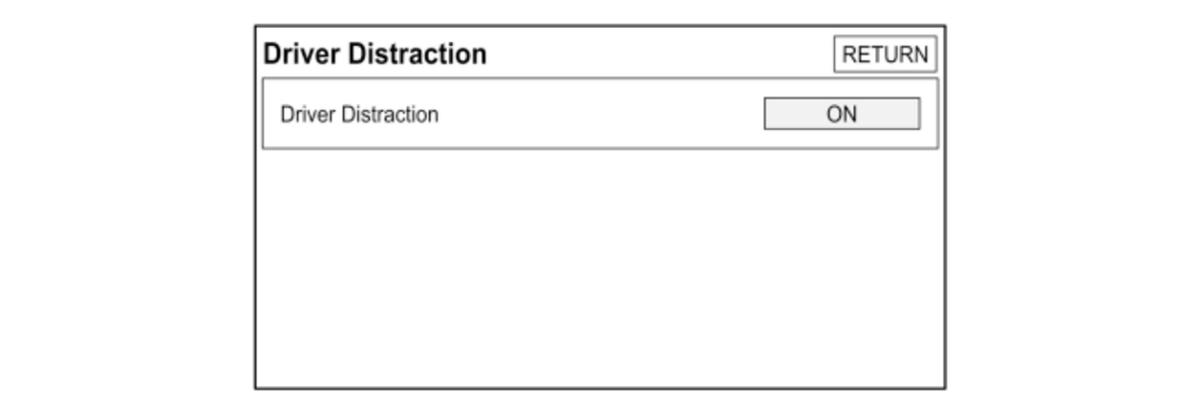

Driver Distraction

This screen allows you to set the operation restriction about audio and visual system.

• Movie function
• Phone pairing function
• Smartphone Linkage function
• Acura approved applications

Courtesy of HONDA, U.S.A., INC.

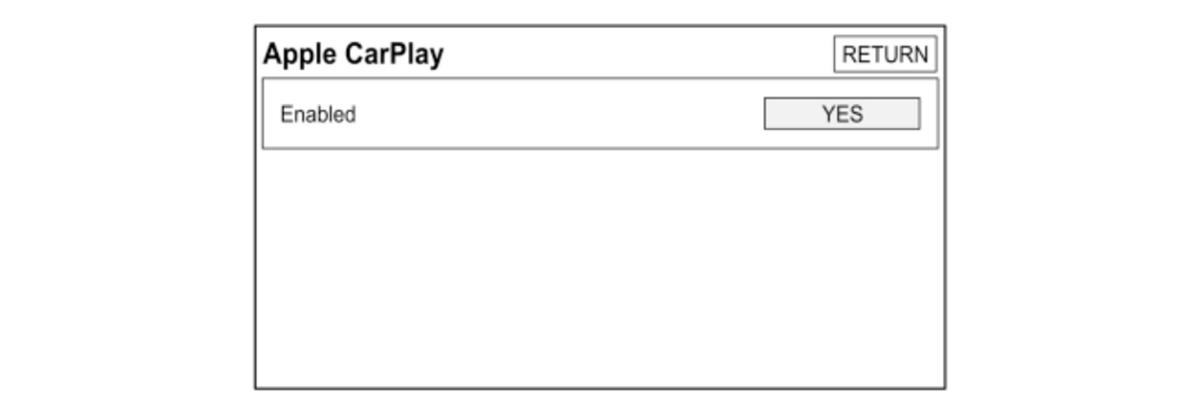

Apple CarPlay

This screen allows you to enable or disable the function about smartphone connection.

Courtesy of HONDA, U.S.A., INC.

Android Auto

This screen allows you to enable or disable the function about smartphone connection.

Courtesy of HONDA, U.S.A., INC.

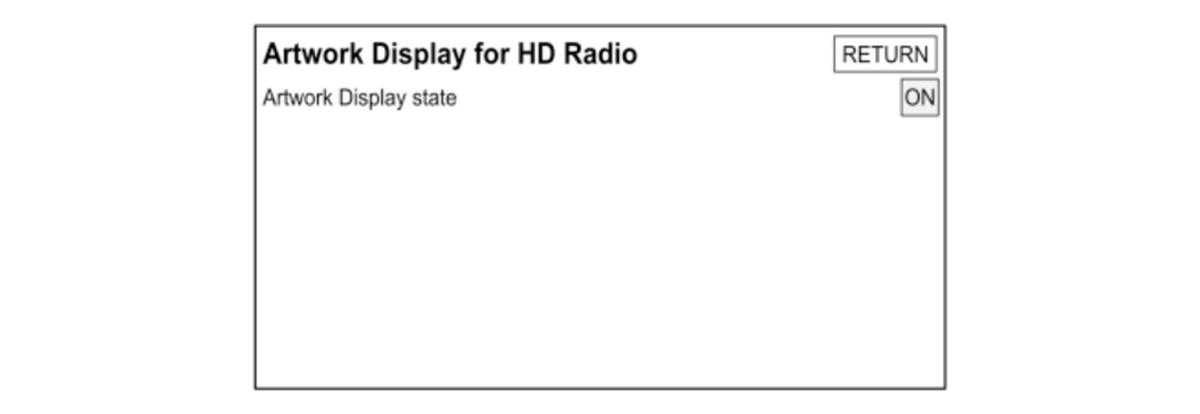

Artwork Display for HD Radio

This screen allows you to restrict the HD RADIO (TM) album art function to the running vehicle. Refer to the Owner's Information for more information about the album art function.

Courtesy of HONDA, U.S.A., INC.

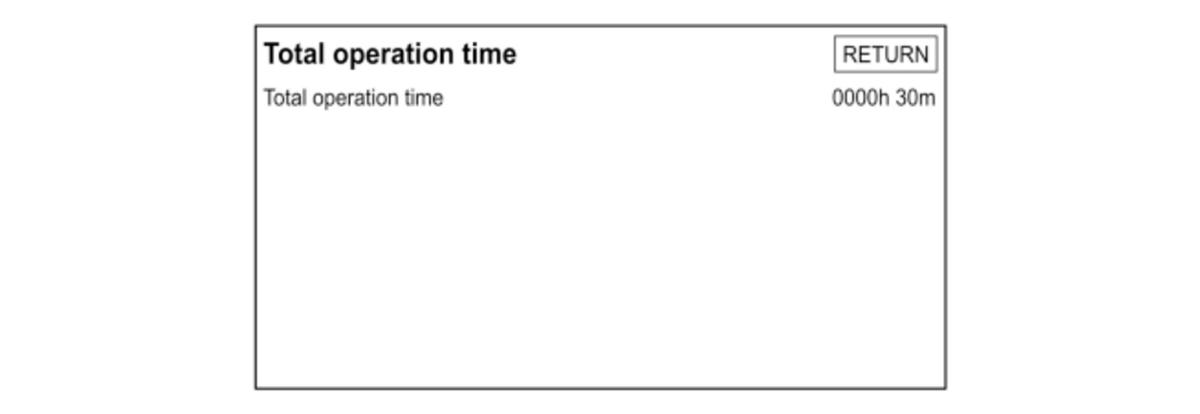

Total Operation Time

This screen shows a total operate time that counted at MOST network ON cycle about the infotainment control unit.

Courtesy of HONDA, U.S.A., INC.

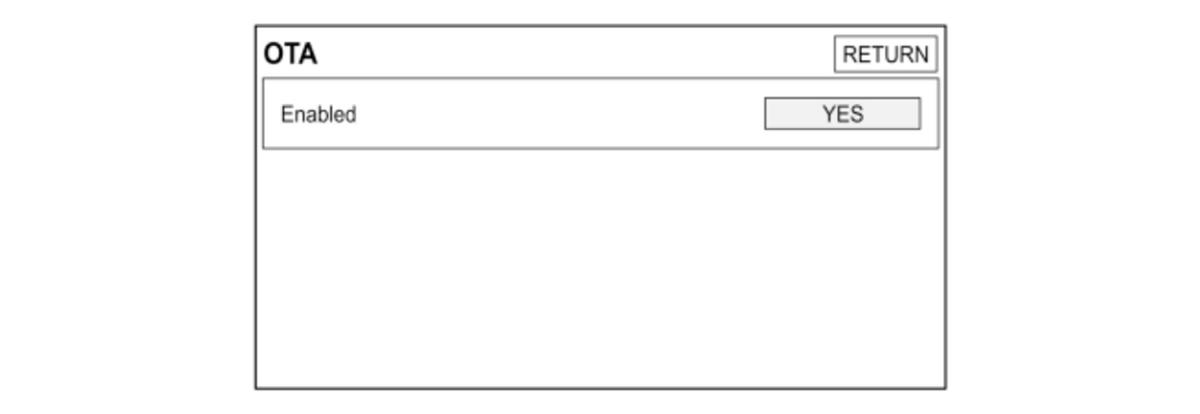

OTA

This screen allows you to enable or disable the function about OTA.

Courtesy of HONDA, U.S.A., INC.
