VSA Modulator-Control Unit Connector for Inputs and Outputs

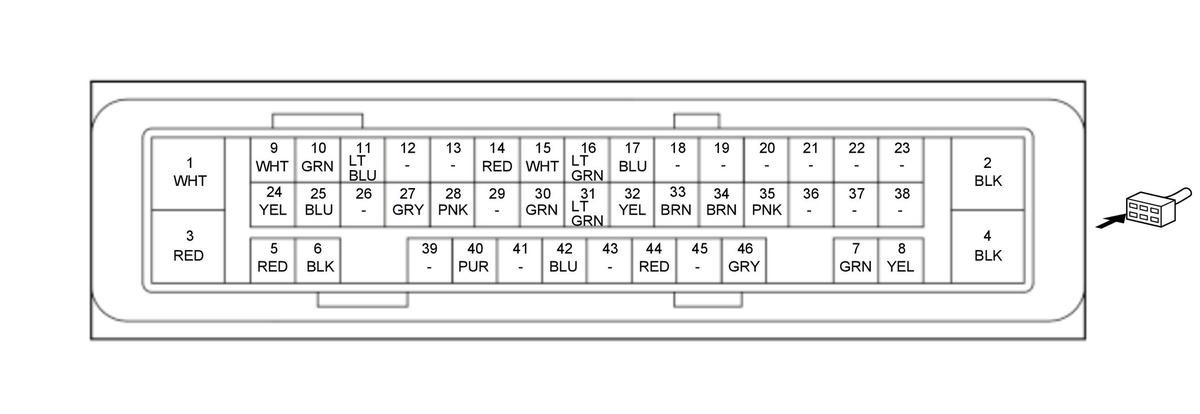

VSA Modulator-Control Unit 46P Connector (female terminals)
 Courtesy of HONDA, U.S.A., INC.
|
| Terminal number |
Terminal sign |
Description |
| 1 |
+B_ABS/VSA_FRS |
Power source for the fail-safe relay |
| 2 |
GND |
Ground for the VSA modulator-control unit |
| 3 |
+B_ABS/VSA_MTR |
Power source for the motor relay |
| 4 |
GND |
Ground for the pump motor |
| 5 |
EPB_R_ACT+ |
Drive the right rear electric parking brake actuator motor |
| 6 |
EPB_R_ACT- |
Drive the right rear electric parking brake actuator motor |
| 7 |
EPB_L_ACT- |
Drive the left rear electric parking brake actuator motor |
| 8 |
EPB_L_ACT+ |
Drive the left rear electric parking brake actuator motor |
| 9 |
SW1 |
Detects electric parking brake switch signal |
| 10 |
SW4 |
Detects electric parking brake switch signal |
| 11 |
BRK_LAMP |
Drives the brake light relay |
| 12 |
Not used |
--- |
| 13 |
Not used |
--- |
| 14 |
IG1_VSA/ABS |
Power source for activating the system |
| 15 |
RR_R_ABS_SNSR- |
Detects right-rear wheel speed sensor signal |
| 16 |
BRK_DIAG |
Detects brake light signal |
| 17 |
RR_L_ABS_SNSR+ |
Detects left-rear wheel speed sensor signal |
| 18 |
Not used |
--- |
| 19 |
Not used |
--- |
| 20 |
Not used |
--- |
| 21 |
Not used |
--- |
| 22 |
Not used |
--- |
| 23 |
Not used |
--- |
| 24 |
SW3 |
Detects electric parking brake switch signal |
| 25 |
SW6 |
Detects electric parking brake switch signal |
| 26 |
Not used |
--- |
| 27 |
PARK_LAMP |
Sends electric parking brake indicator signal |
| 28 |
VF-CAN A_L |
F-CAN communication circuit |
| 29 |
Not used |
--- |
| 30 |
FR_R_ABS_SNSR+ |
Detects right-front wheel speed sensor signal |
| 31 |
RR_R_ABS_SNSR+ |
Detects right-rear wheel speed sensor signal |
| 32 |
RR_L_ABS_SNSR- |
Detects left-rear wheel speed sensor signal |
| Terminal number |
Terminal sign |
Description |
| 33 |
FR_L_ABS_SNSR+ |
Detects left-front wheel speed sensor signal |
| 34 |
VF-CAN C_L |
F-CAN communication circuit |
| 35 |
FR_R_ABS_SNSR- |
Detects right-front wheel speed sensor signal |
| 36 |
Not used |
--- |
| 37 |
Not used |
--- |
| 38 |
Not used |
--- |
| 39 |
Not used |
--- |
| 40 |
VF-CAN A_H |
F-CAN communication circuit |
| 41 |
Not used |
--- |
| 42 |
FR_L_ABS_SNSR- |
Detects left-front wheel speed sensor signal |
| 43 |
Not used |
--- |
| 44 |
EPB_SW_LT |
Drives the electric parking brake switch indicator |
| 45 |
Not used |
--- |
| 46 |
VF-CAN C_H |
F-CAN communication circuit |
