Center Console Assembly Removal

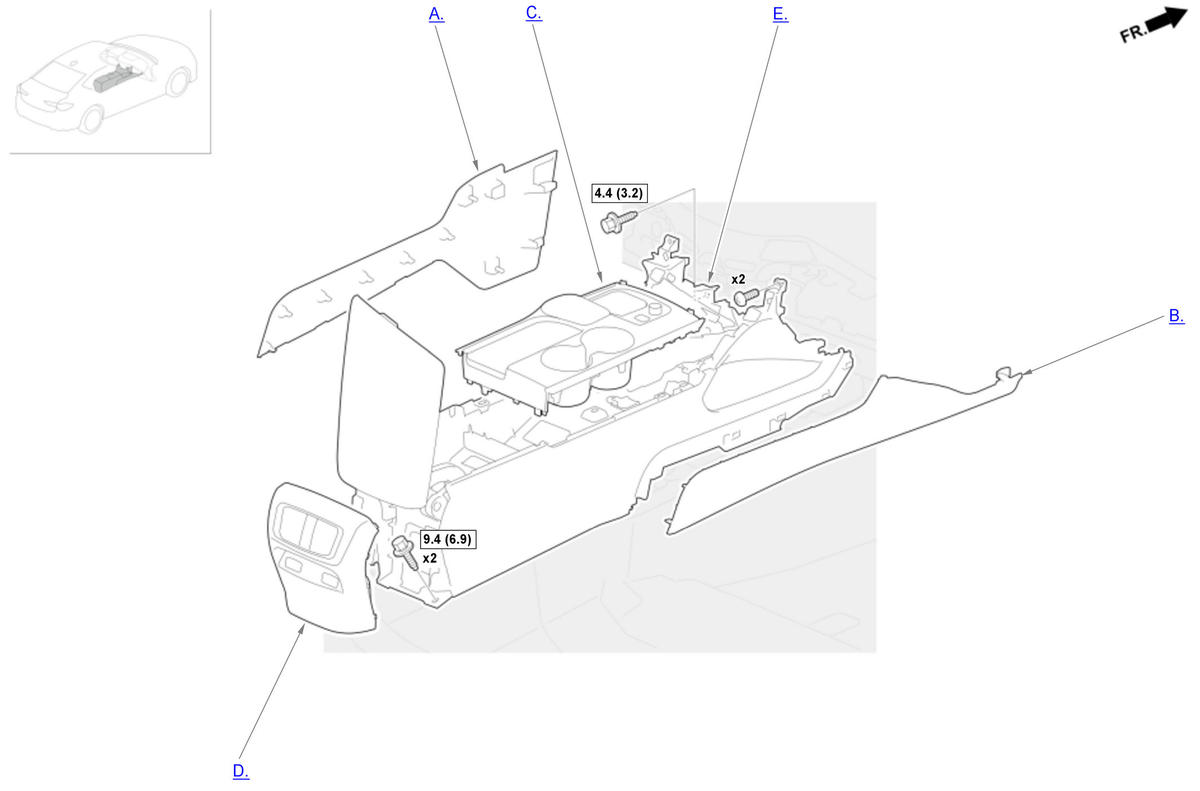

GHH559169Courtesy of HONDA, U.S.A., INC.
: Torque, N.m (lbf.ft) : Replace : Warning/Caution : Inspection/Adjustment *: Learning ■: SPL Tool : Required Removal

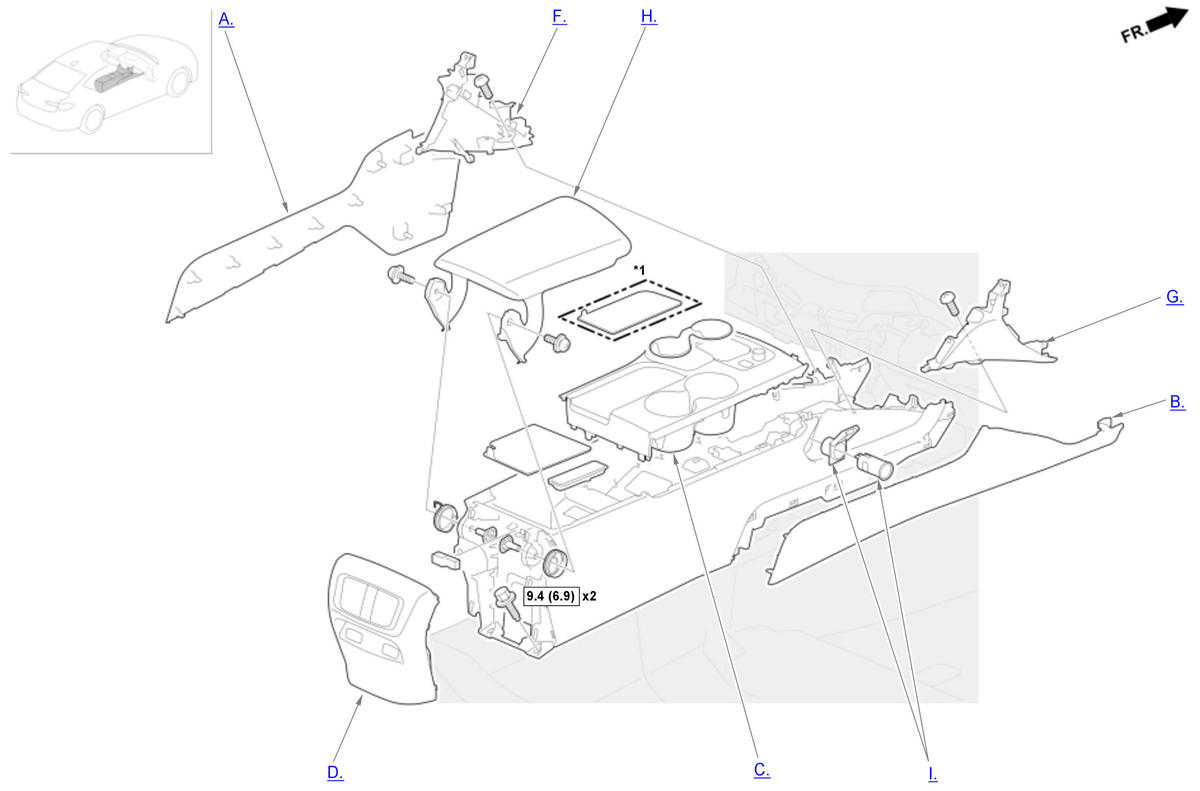

GHH559170Courtesy of HONDA, U.S.A., INC.
: Torque, N.m (lbf.ft) : Replace : Warning/Caution : Inspection/Adjustment *: Learning ■: SPL Tool : Required Removal
*1: With phone tray mat

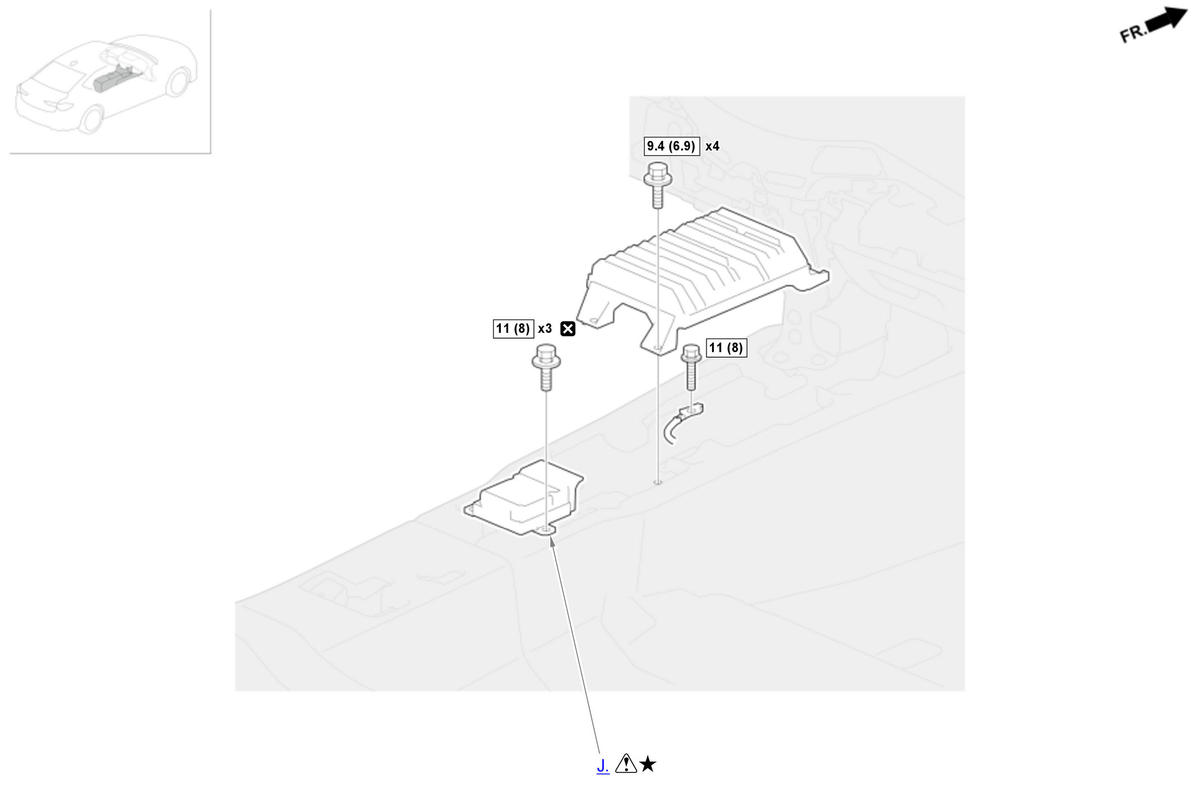

GHH559171Courtesy of HONDA, U.S.A., INC.
: Torque, N.m (lbf.ft) : Replace : Warning/Caution : Inspection/Adjustment *: Learning ■: SPL Tool : Required Removal

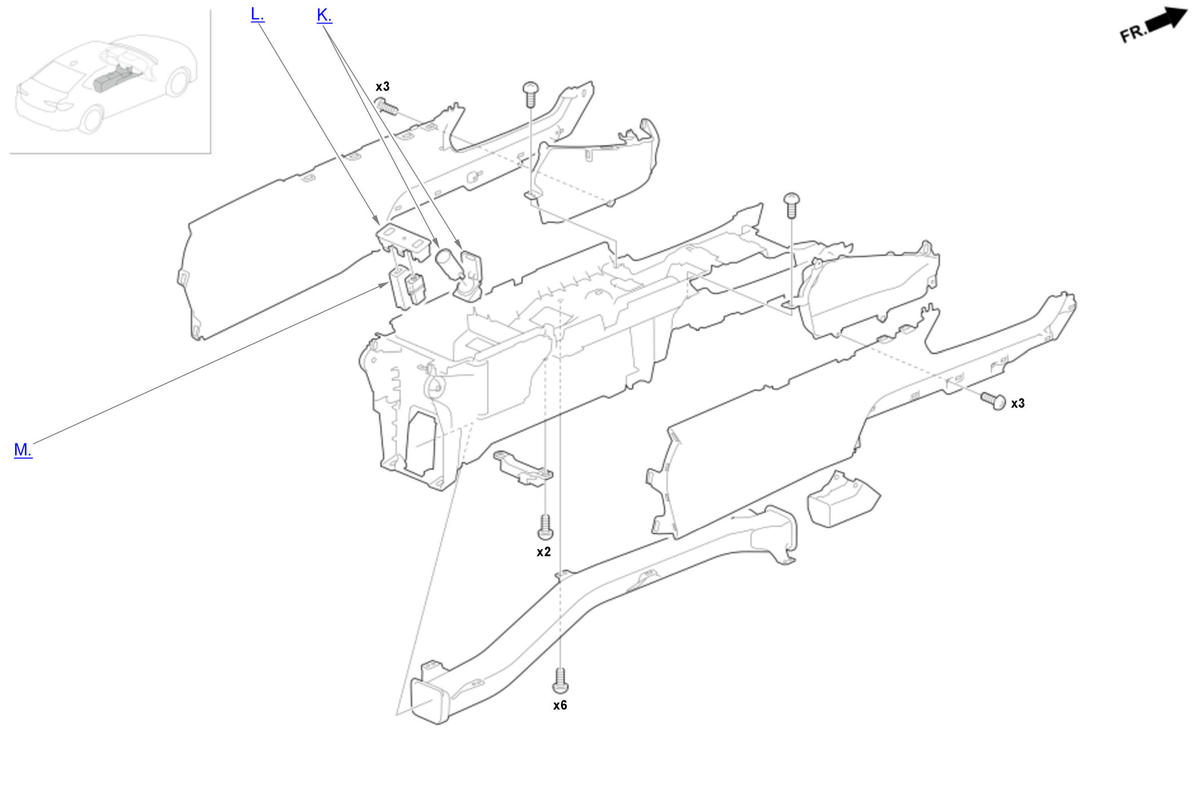

GHH559172Courtesy of HONDA, U.S.A., INC.
: Torque, N.m (lbf.ft) : Replace : Warning/Caution : Inspection/Adjustment *: Learning ■: SPL Tool : Required Removal

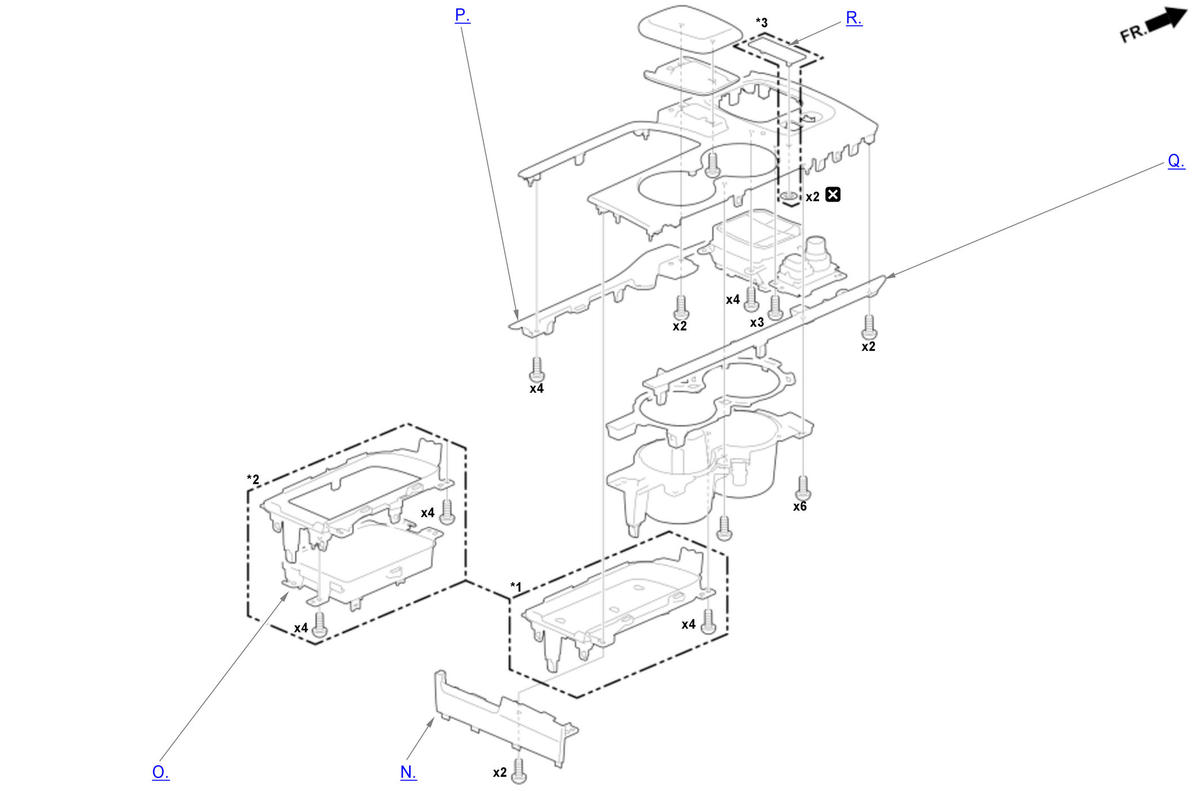

GHH559173Courtesy of HONDA, U.S.A., INC.
: Torque, N.m (lbf.ft) : Replace : Warning/Caution : Inspection/Adjustment *: Learning ■: SPL Tool : Required Removal
*1: Without wireless charger unit

*2: With wireless charger unit

*3: For some models

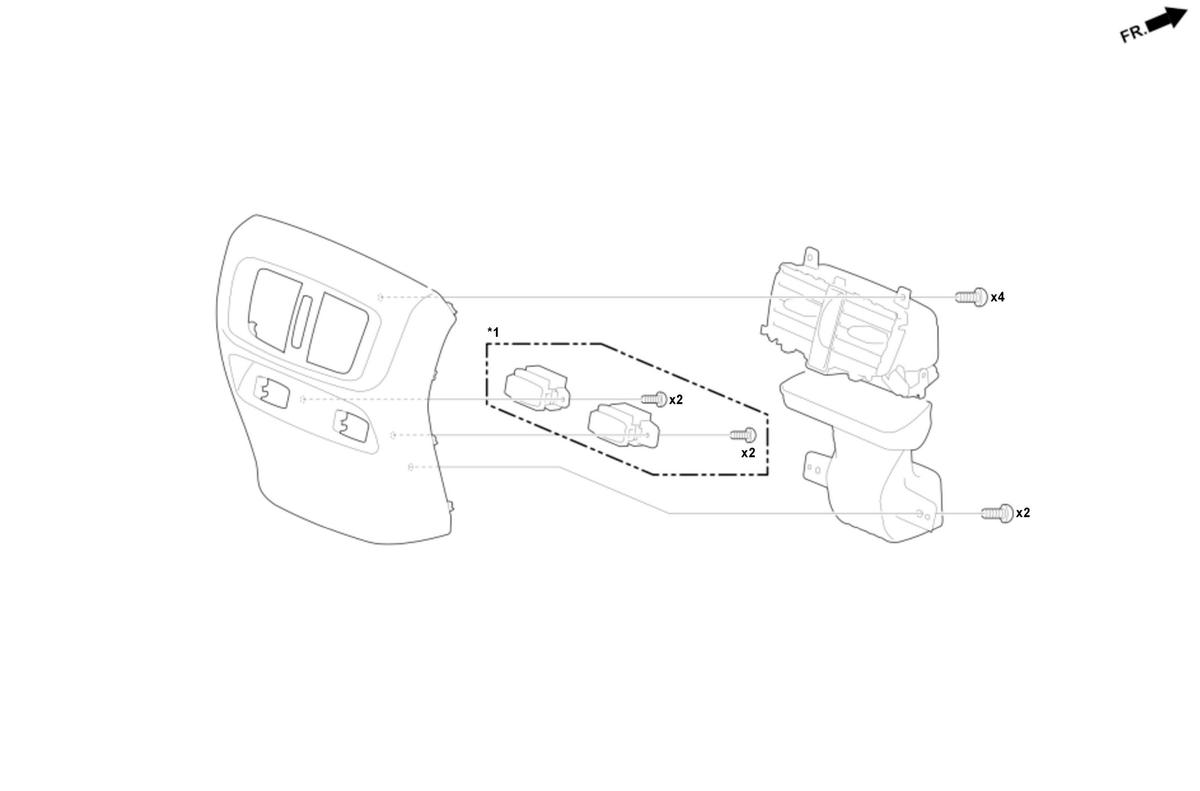

GHH559174Courtesy of HONDA, U.S.A., INC.
: Torque, N.m (lbf.ft) : Replace : Warning/Caution : Inspection/Adjustment *: Learning ■: SPL Tool : Required Removal
*1: With rear seat heater
  1. A.-

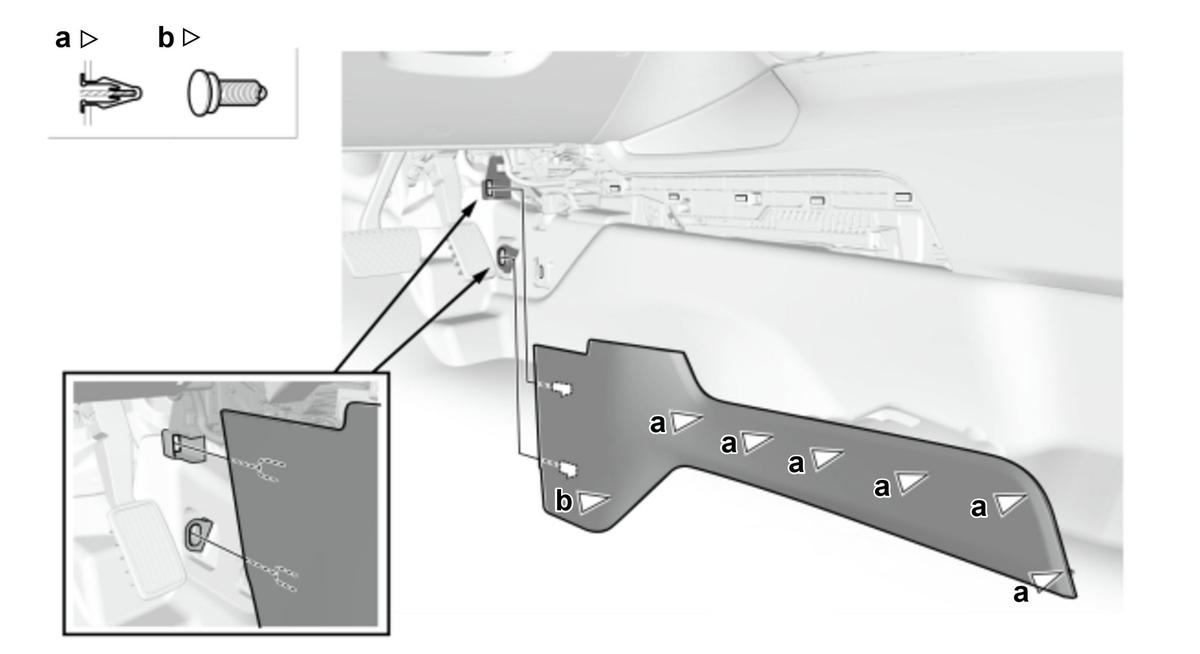

    GHH559175Courtesy of HONDA, U.S.A., INC.

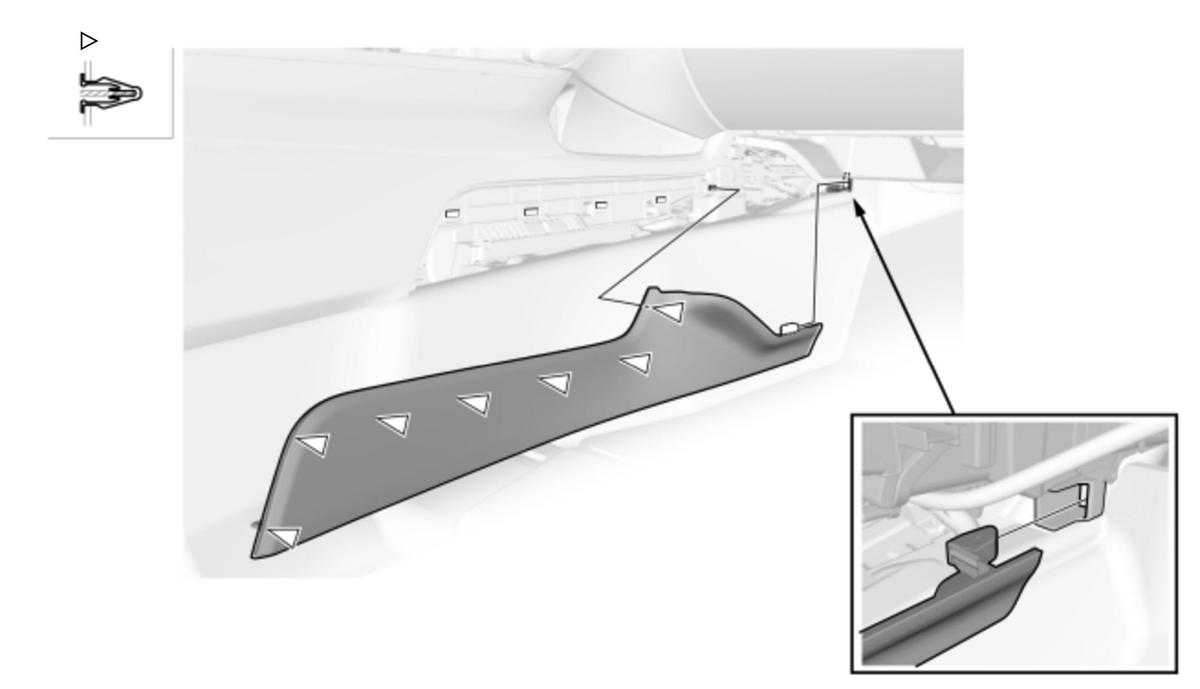

  2. B.-
    GHH559176Courtesy of HONDA, U.S.A., INC.
  3. C.-

    Key Information

    Do the following before starting your work.

    Remove:

    Sub-Procedure

    Removal

    • Refer to the figure.

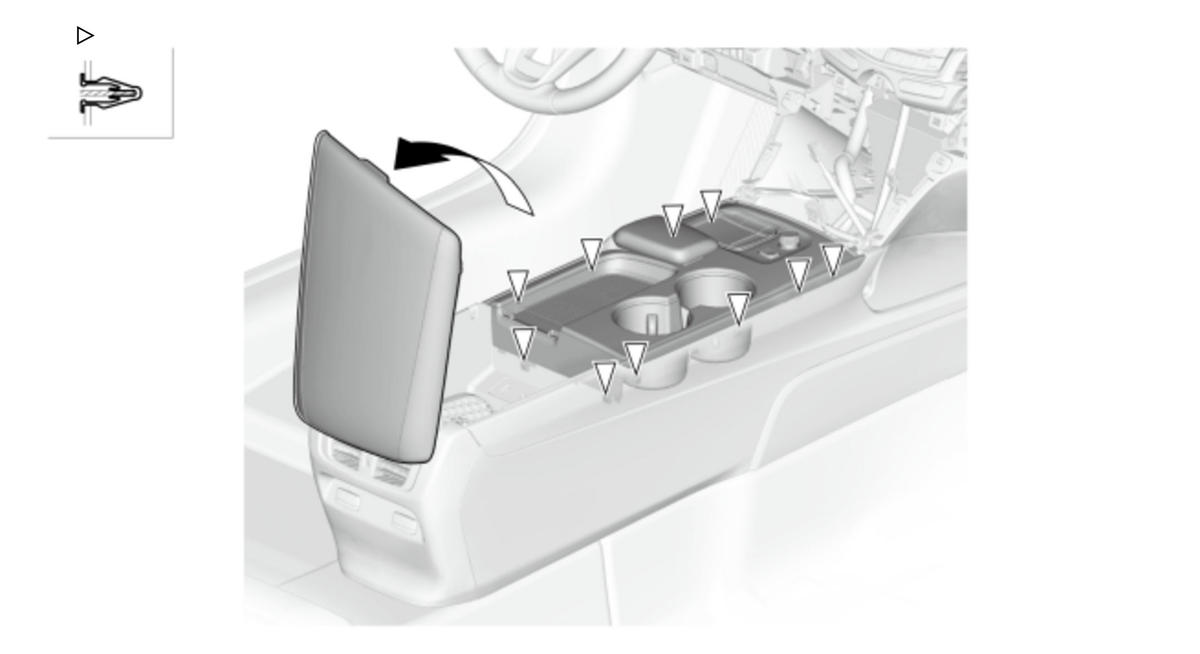

    GHH559177Courtesy of HONDA, U.S.A., INC.
  4. D.-

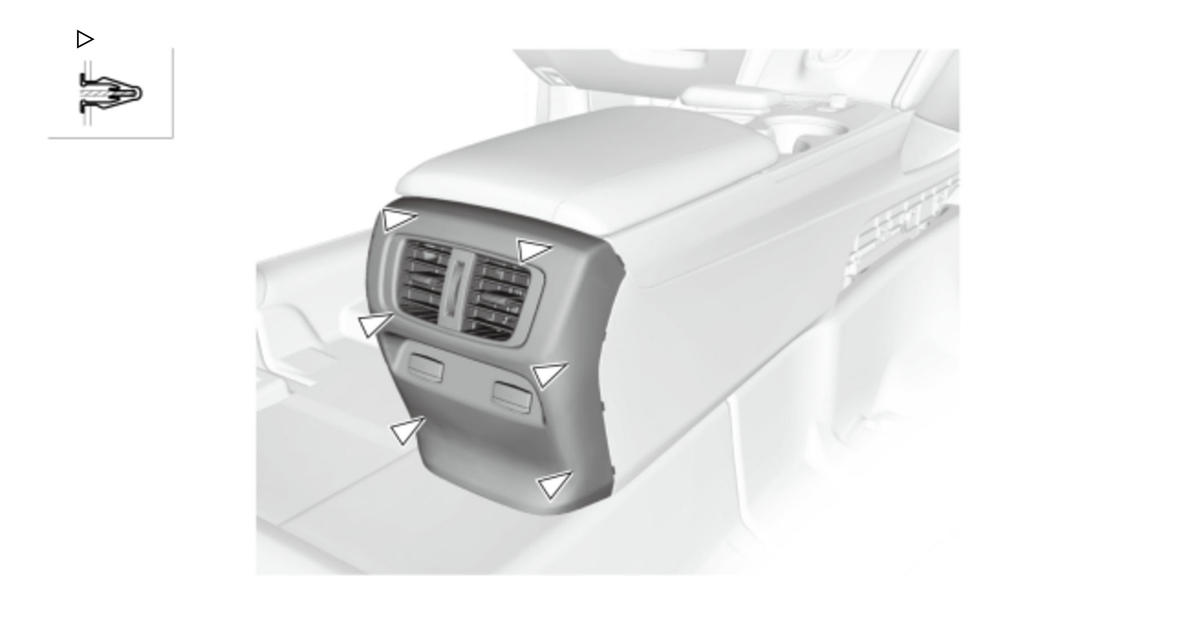

    GHH559178Courtesy of HONDA, U.S.A., INC.
  5. E.-

    Sub-Procedure

    Removal

    • Refer to the figure.

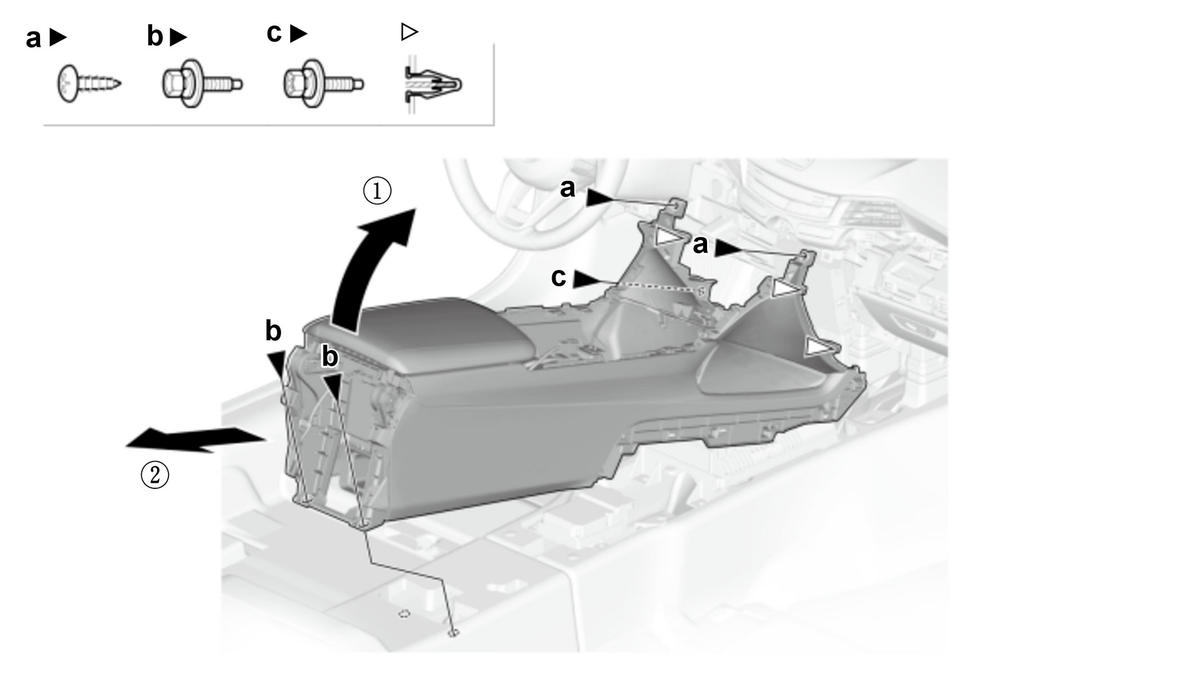

    GHH559179Courtesy of HONDA, U.S.A., INC.
  6. F.-

    Sub-Procedure

    Removal

    • Refer to the figure.

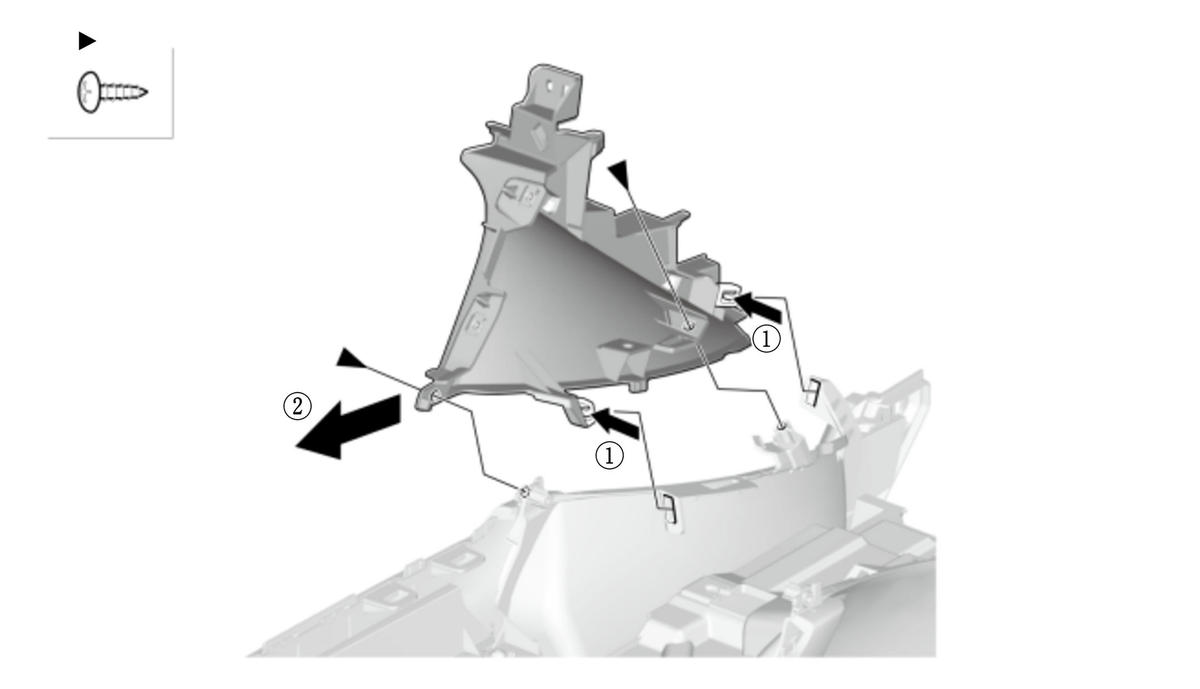

    GHH559180Courtesy of HONDA, U.S.A., INC.
  7. G.-

    Sub-Procedure

    Removal

    • Refer to the figure.

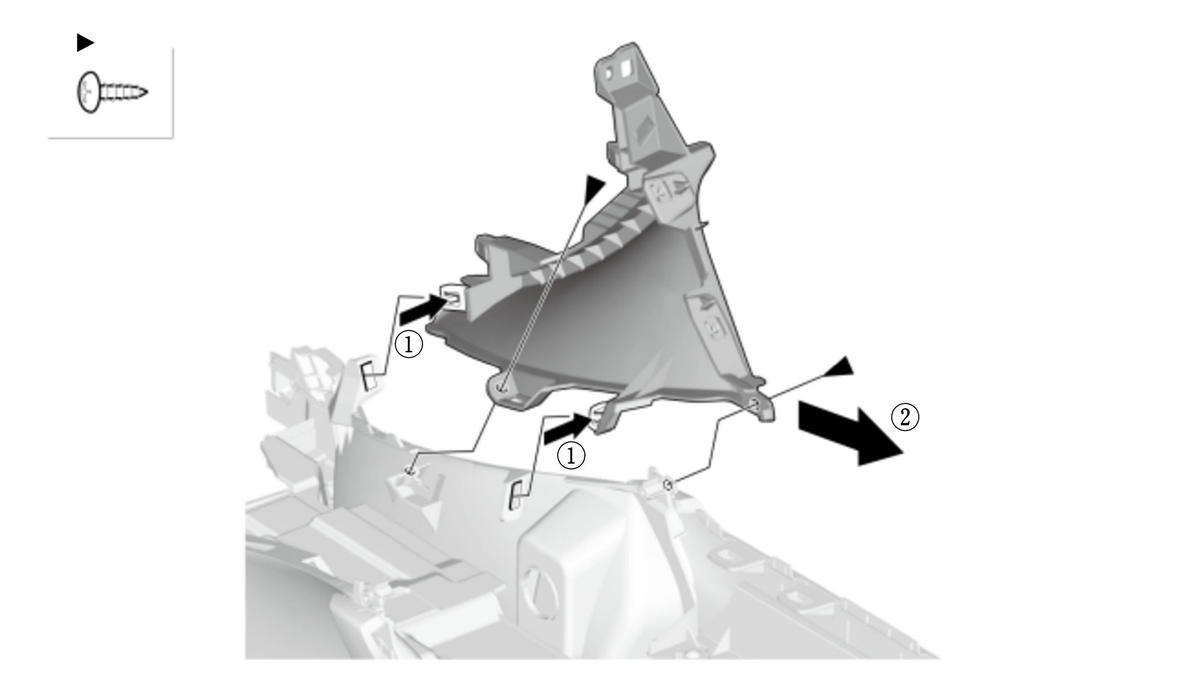

    GHH559181Courtesy of HONDA, U.S.A., INC.
  8. H.-

    Sub-Procedure

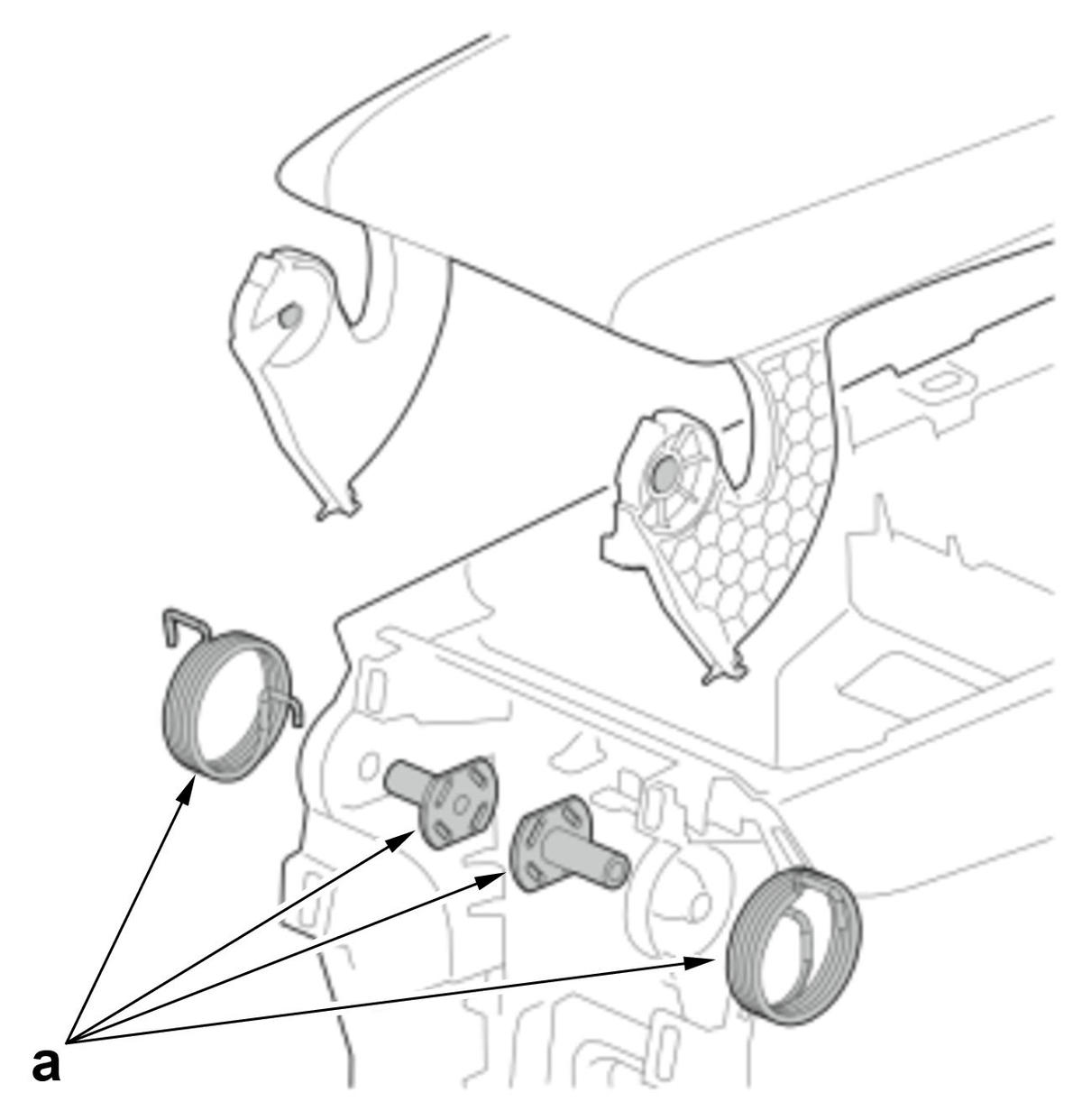

    GHH559182Courtesy of HONDA, U.S.A., INC.

    Removal

    • Refer to the figure.

    Lubricant Specifications

    Position Type
    a Multipurpose Grease
  9. I.-

    Sub-Procedure

    Removal

    • Refer to the figure.

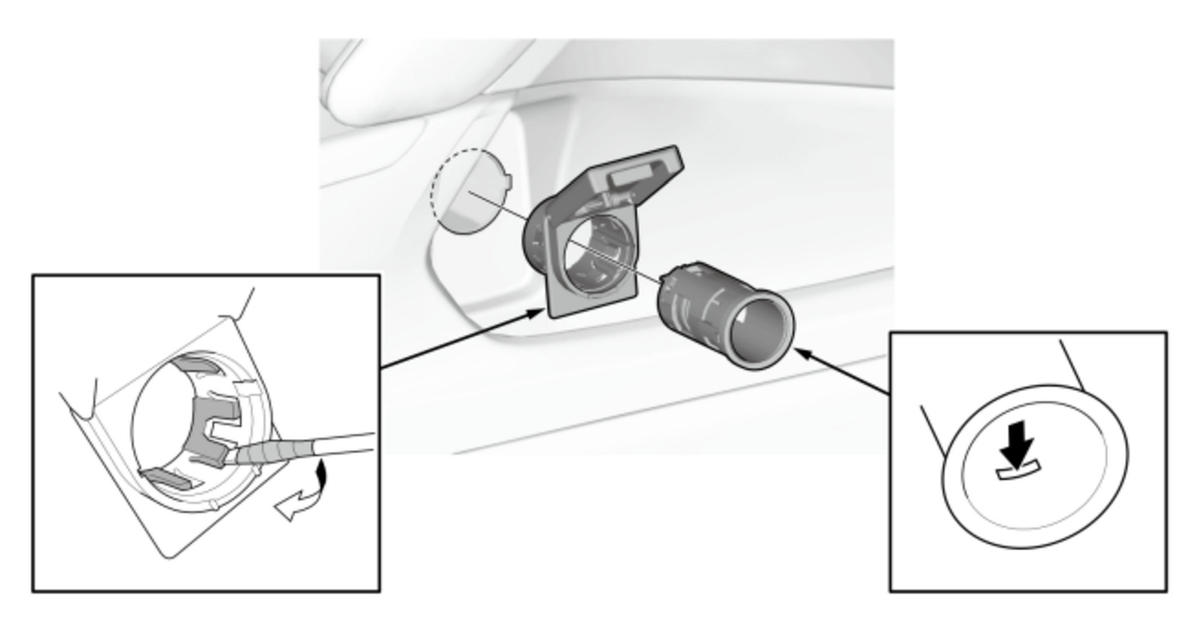

    GHH559183Courtesy of HONDA, U.S.A., INC.
  10. J.-
    WARNING:

    Preconditions

    Sub-Procedure

    Installation

    NOTE:  Before installing the center console, make sure the SRS indicator works normally.

    NOTE:
    • Make sure the SRS unit has the latest software. If it does not have the latest, update the software in the SRS unit .
    • Be careful not to bump (by impact wrench, hammer, etc.) the area around the SRS unit.

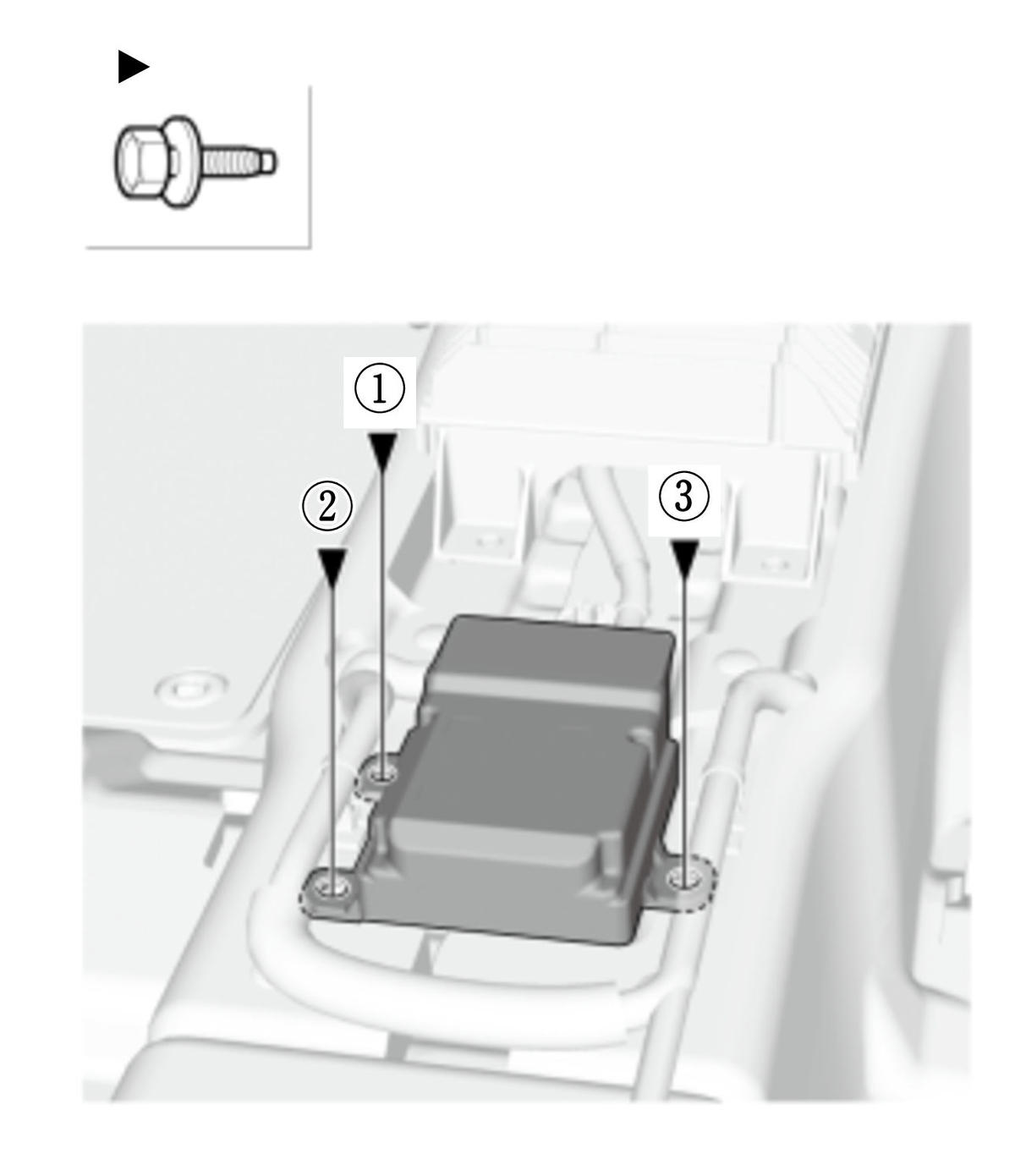

    Tightening Procedure

    Step Operation Object Specification
    1 Tighten All Bolts -> ->
    GHH559187Courtesy of HONDA, U.S.A., INC.

    After Installation

    1. 12 Volt Battery Negative Terminal Reconnect

    2. Yaw Rate-Acceleration Neutral Position Memorization

    NOTE:

    After replacing the SRS unit with a new one, memorize the yaw rate-acceleration neutral position.

    3. Front Passenger's Weight Sensor Initialization - Refer to: Front Passenger's Weight Sensor Initialization

    NOTE:

    After replacing the SRS unit with a new one, initialize the front passenger's weight sensors.

    4. Turn the vehicle to the ON mode, and check that the SRS indicator comes on for about 6 seconds and then goes off.

  11. K.-

    Sub-Procedure

    Removal

    • Refer to the figure.

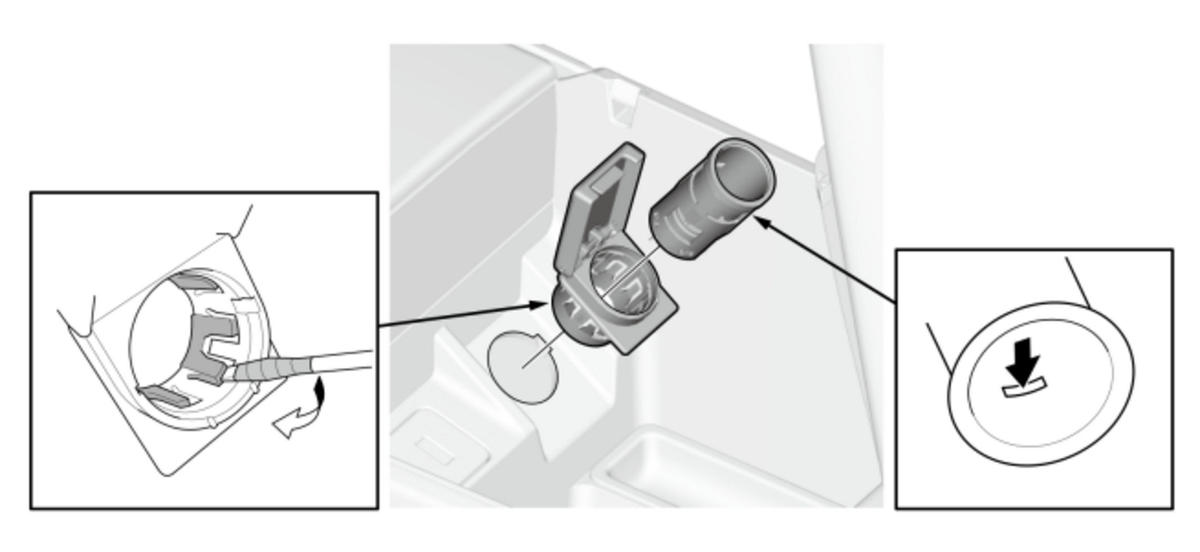

    GHH559188Courtesy of HONDA, U.S.A., INC.
  12. L.-

    Sub-Procedure

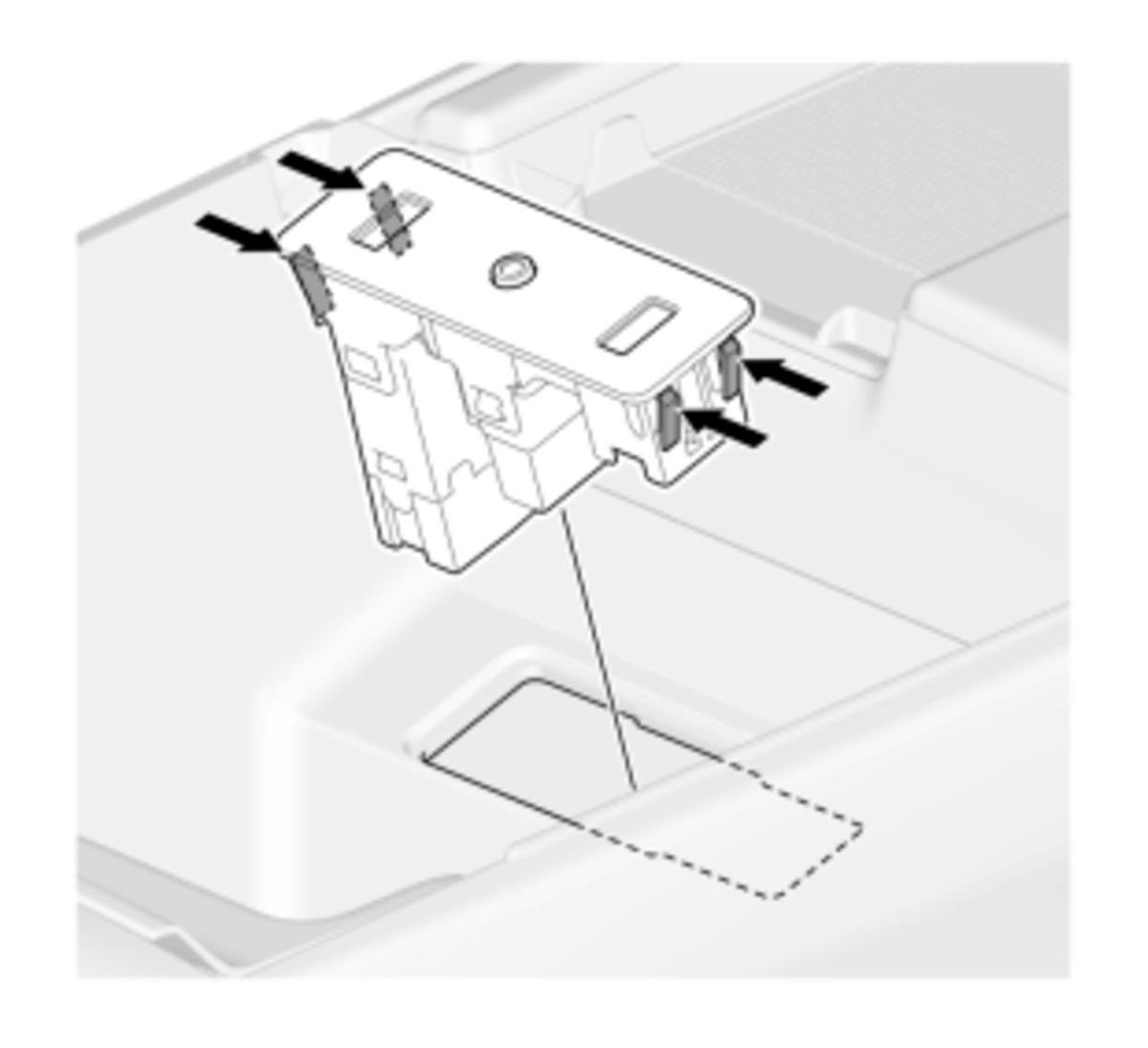

    GHH559189Courtesy of HONDA, U.S.A., INC.

    Removal

    • Refer to the figure.
  13. M.-

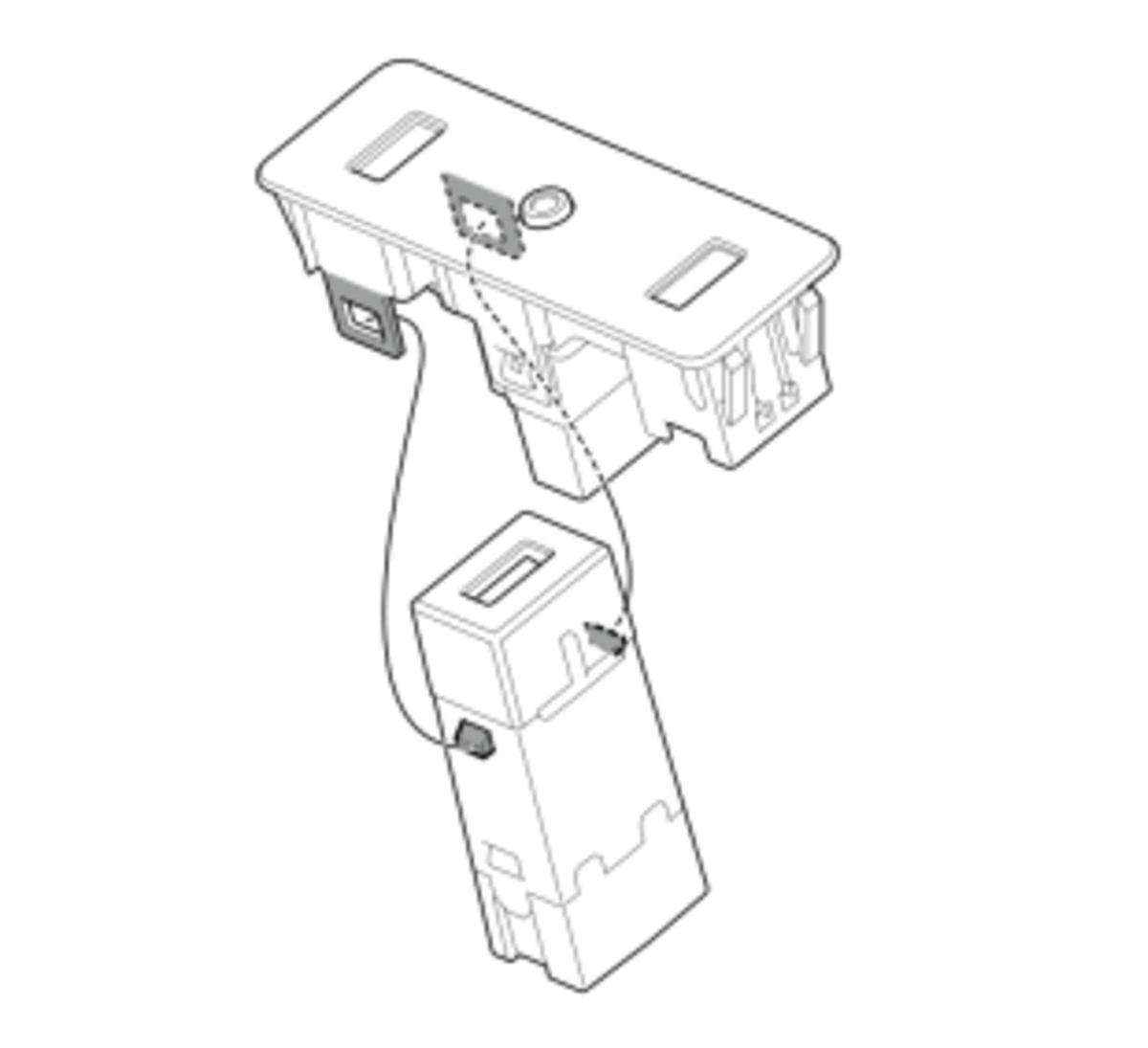

    GHH559190Courtesy of HONDA, U.S.A., INC.
  14. N.-

    Sub-Procedure

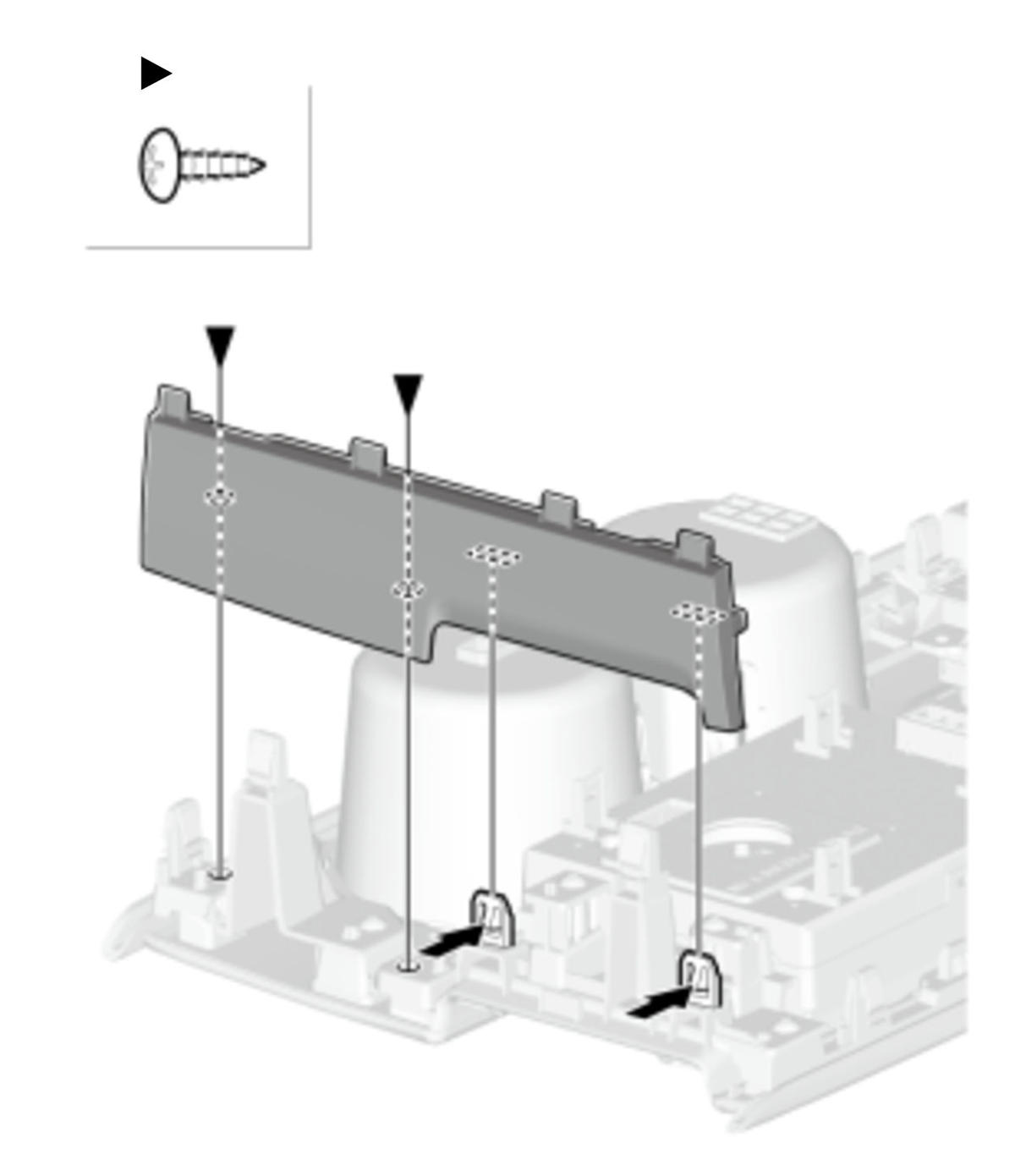

    GHH559191Courtesy of HONDA, U.S.A., INC.

    Removal

    • Refer to the figure.
  15. O.-

    Sub-Procedure

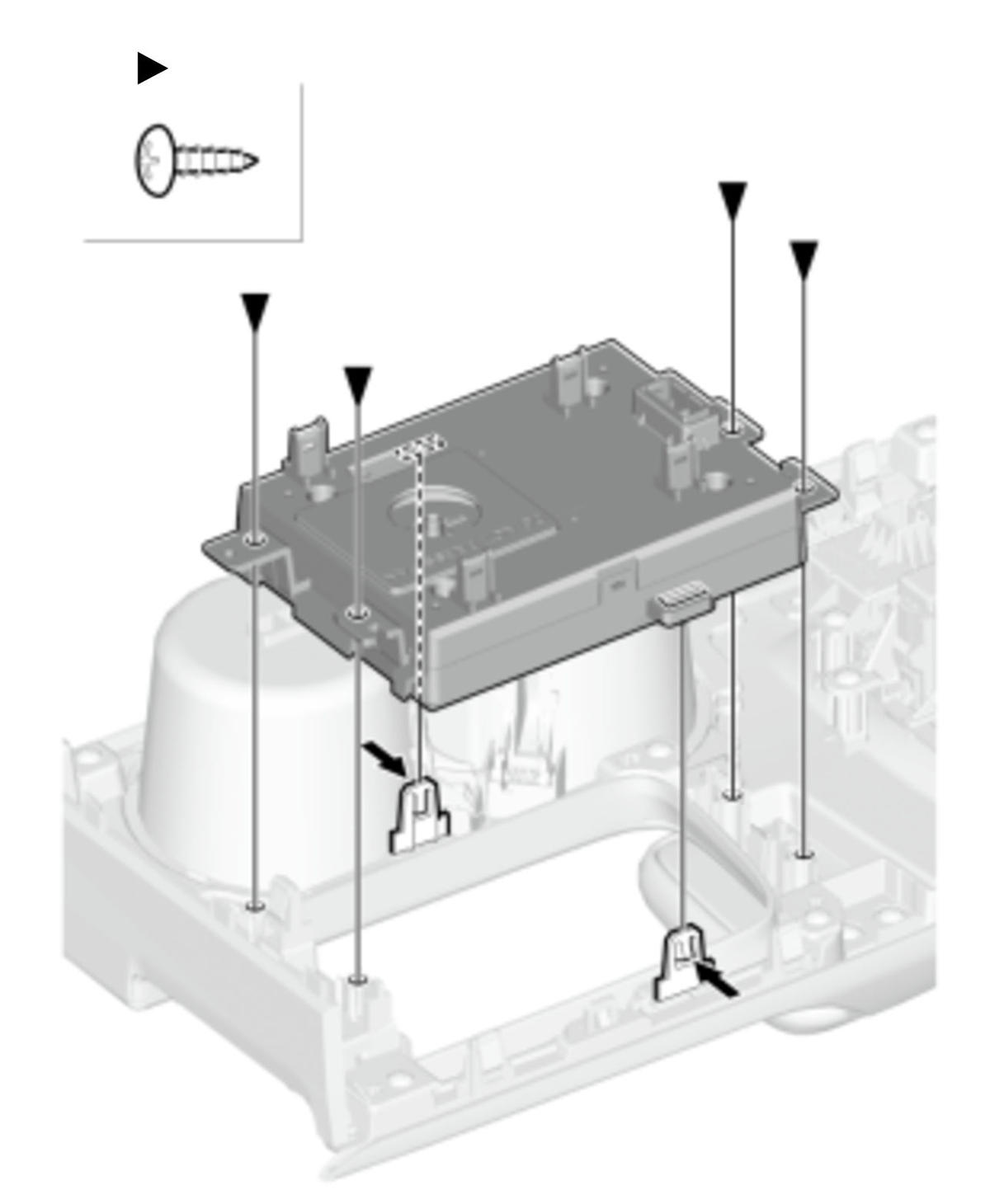

    GHH559192Courtesy of HONDA, U.S.A., INC.

    Removal

    • Refer to the figure.
  16. P.-

    Sub-Procedure

    Removal

    • Refer to the figure.

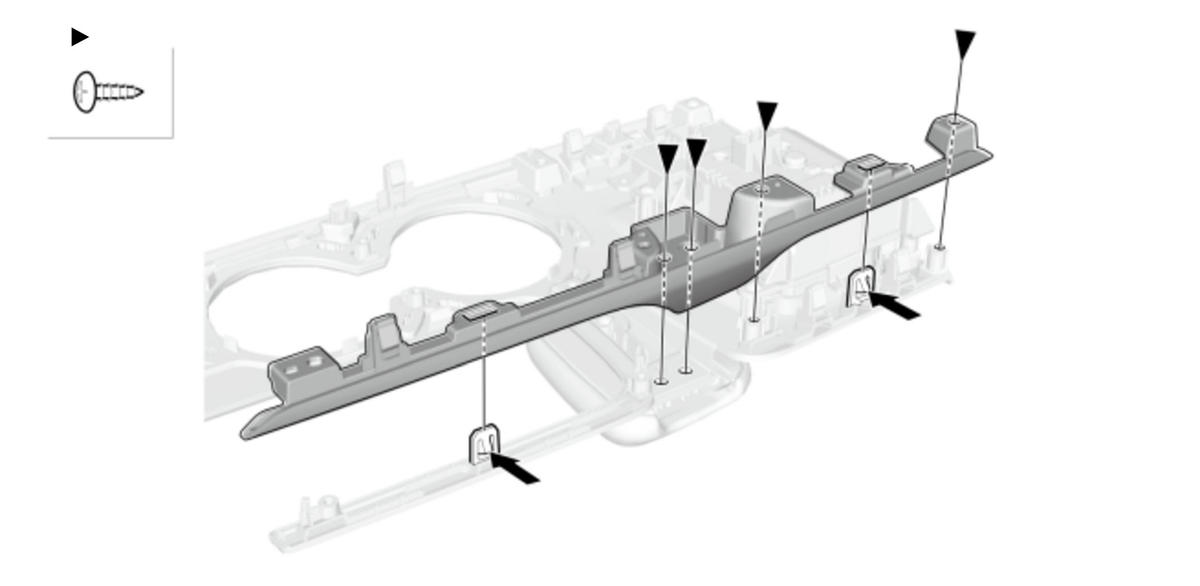

    GHH559193Courtesy of HONDA, U.S.A., INC.
  17. Q.-

    Sub-Procedure

    Removal

    • Refer to the figure.

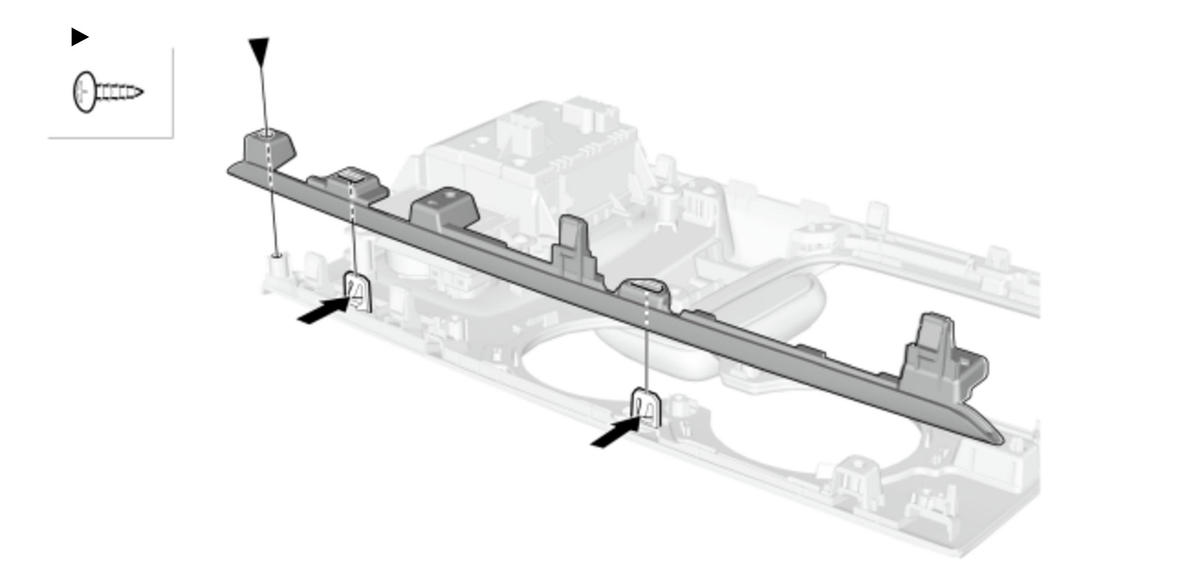

    GHH559194Courtesy of HONDA, U.S.A., INC.
  18. R.-

    Sub-Procedure

    Removal

    • Refer to figure 1.

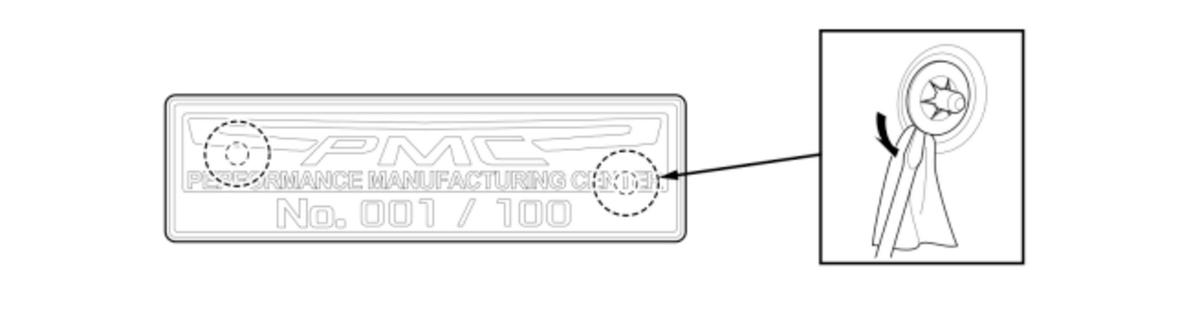

    Figure 1

    GHH559195Courtesy of HONDA, U.S.A., INC.

    Installation

    • Refer to figure 2.

    NOTE:  Clean the plate surface with a shop towel dampened in isopropyl alcohol. After cleaning, keep oil, grease, and water from getting on the surface.

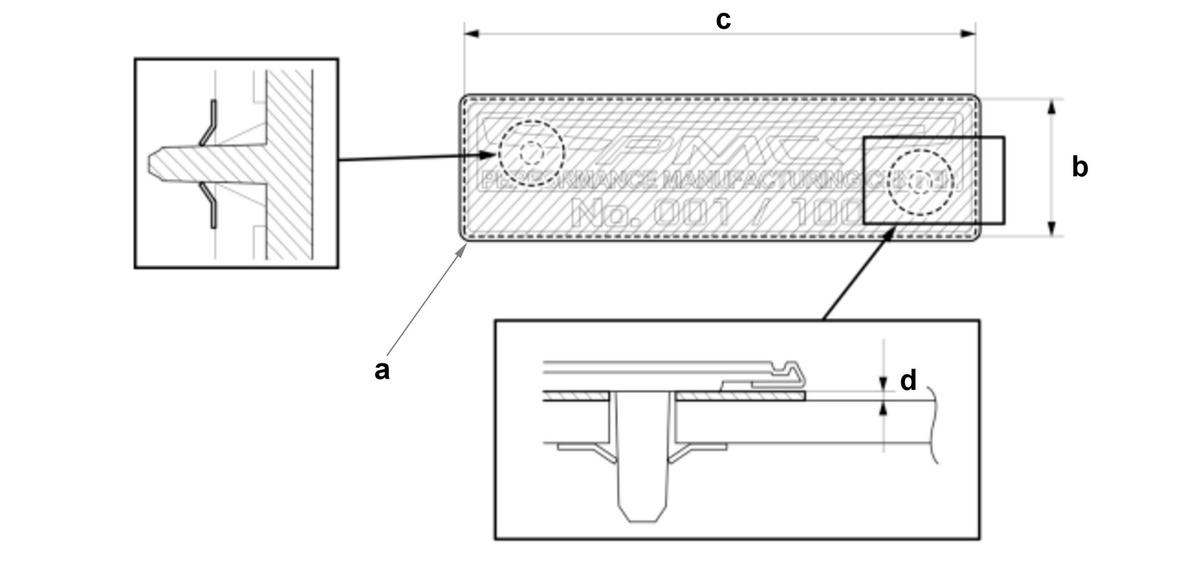

    Tape Specifications (Figure 2)

    Position Standard Value
    a b 16.5 mm (0.650 in)
    c 57.8 mm (2.276 in)
    d 0.5 mm (0.020 in)

    Figure 2

    GHH559196Courtesy of HONDA, U.S.A., INC.
