Exploded View
For replacement of components listed below, see Repair Procedure .

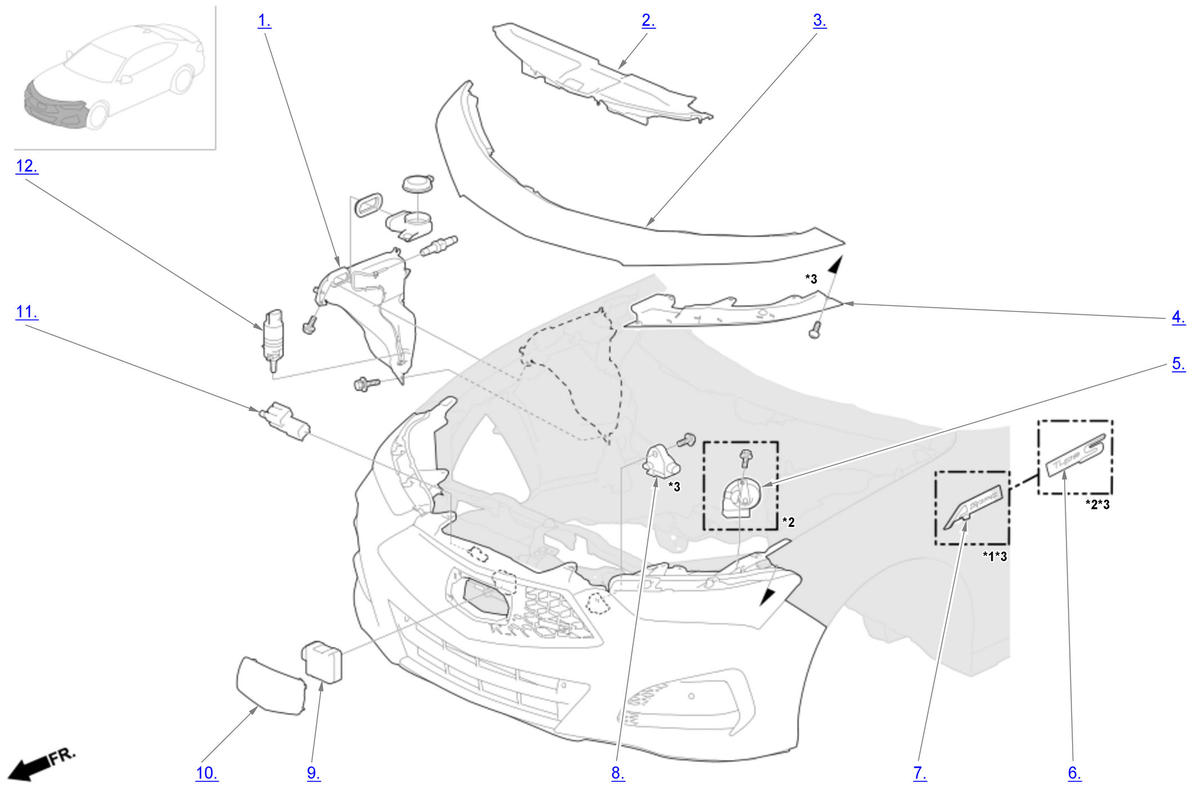

| *1: For some models *2: 2.0 L Engine *3: Part(s) are shown for one side only as the procedure is the same for both sides. |

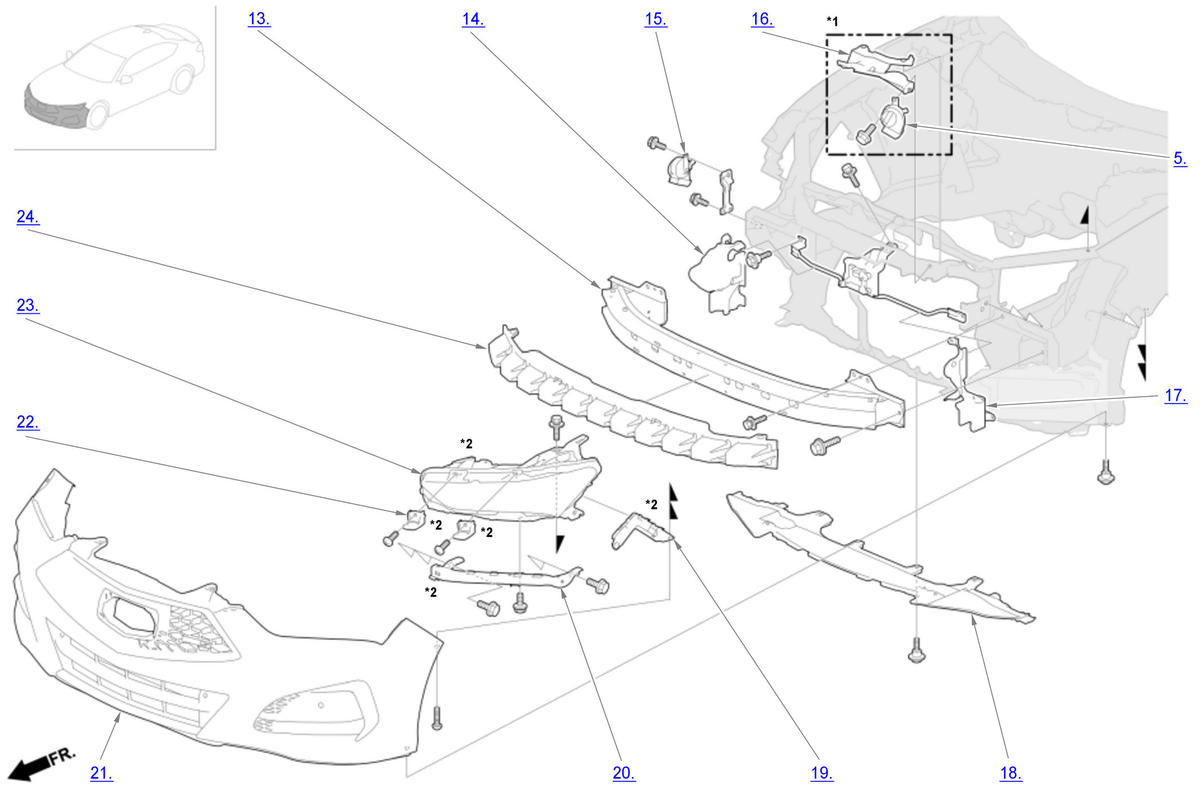

| *1: 3.0 L Engine *2: Part(s) are shown for one side only as the procedure is the same for both sides. |

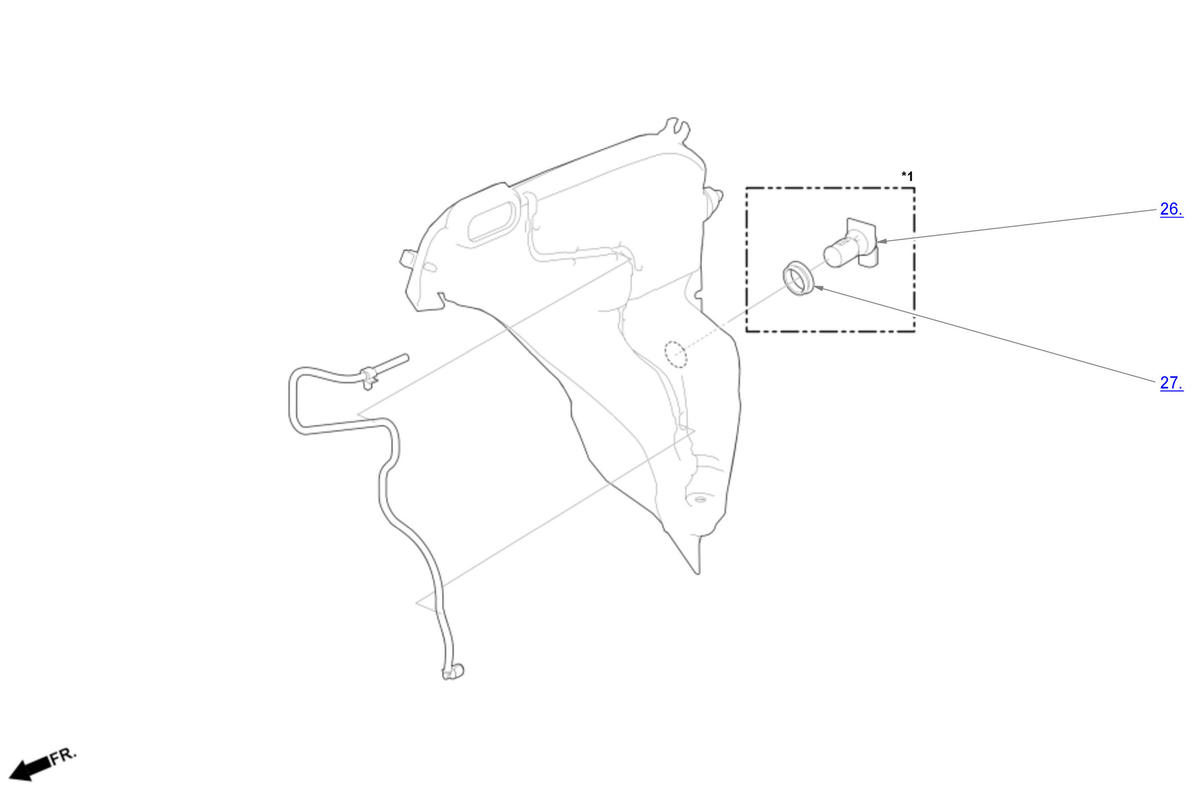

| *1: Canada and Mexico Models |
Front Bumper Area Components
| Component Name | Callout |
|---|---|
| Washer Tank | 1 |
| Front Grille Cover | 2 |
| Front Bumper Upper Trim | 3 |
| Front Bumper Side Upper Trim | 4 |
| Horn (LO) | 5 |
| Front Fender Type S Emblem | 6 |
| Front Fender A Spec Emblem | 7 |
| Front Impact Sensor | 8 |
| Millimeter Wave Radar | 9 |
| Front "A" Emblem/Radar Cover | 10 |
| Outside Air Temperature Sensor | 11 |
| Windshield Washer Motor | 12 |
| Front Bumper Beam | 13 |
| Front Bumper Air Screen (Right) | 14 |
| Horn (HI) | 15 |
| Intake Air Guide | 16 |
| Front Bumper Air Screen (Left) | 17 |
| Front Lower Plate | 18 |
| Front Bumper Side Spacer | 19 |
| Front Bumper Corner Upper Trim | 20 |
| Front Bumper | 21 |
| Clip | 22 |
| Headlight Assembly | 23 |
| Front Beam Absorber | 24 |

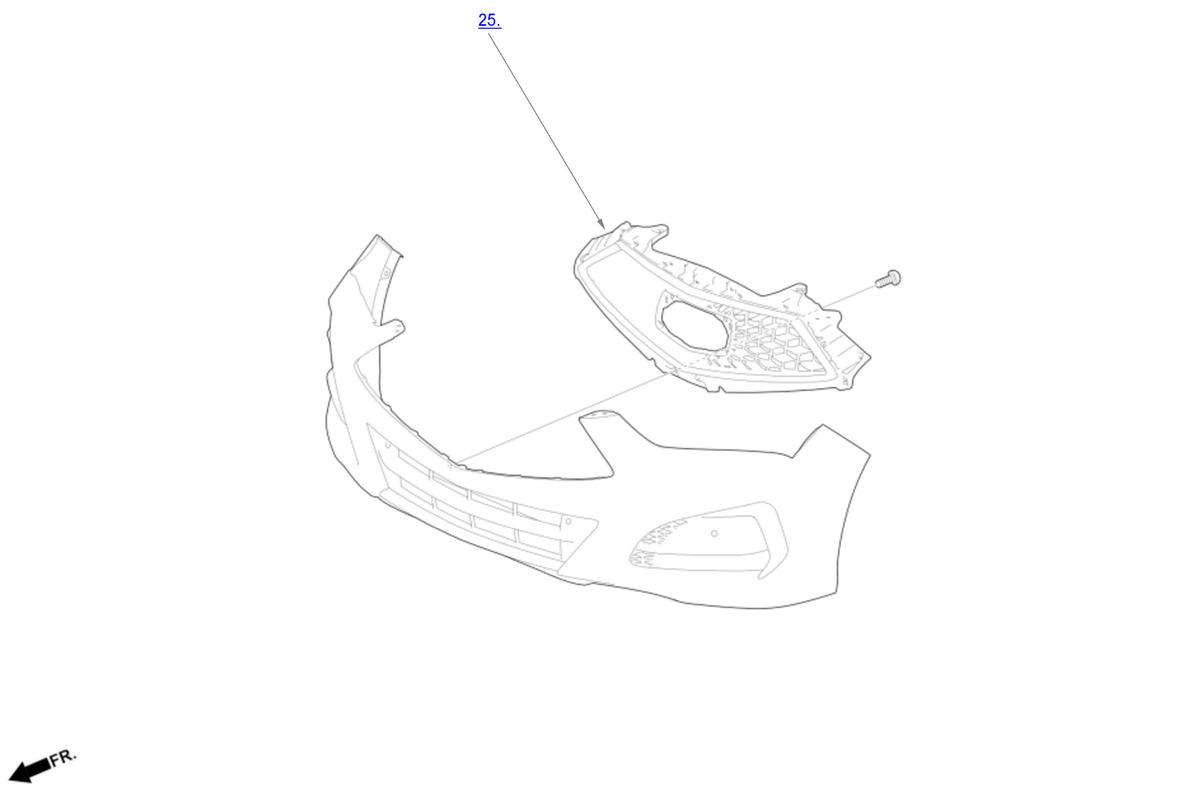

| Front Grille Assembly | 25 |
| Washer Fluid Level Switch | 26 |
| Grommet | 27 |
