Exploded View: Notes

For replacement of components listed below, see Repair Procedure .

2.0 L Engine

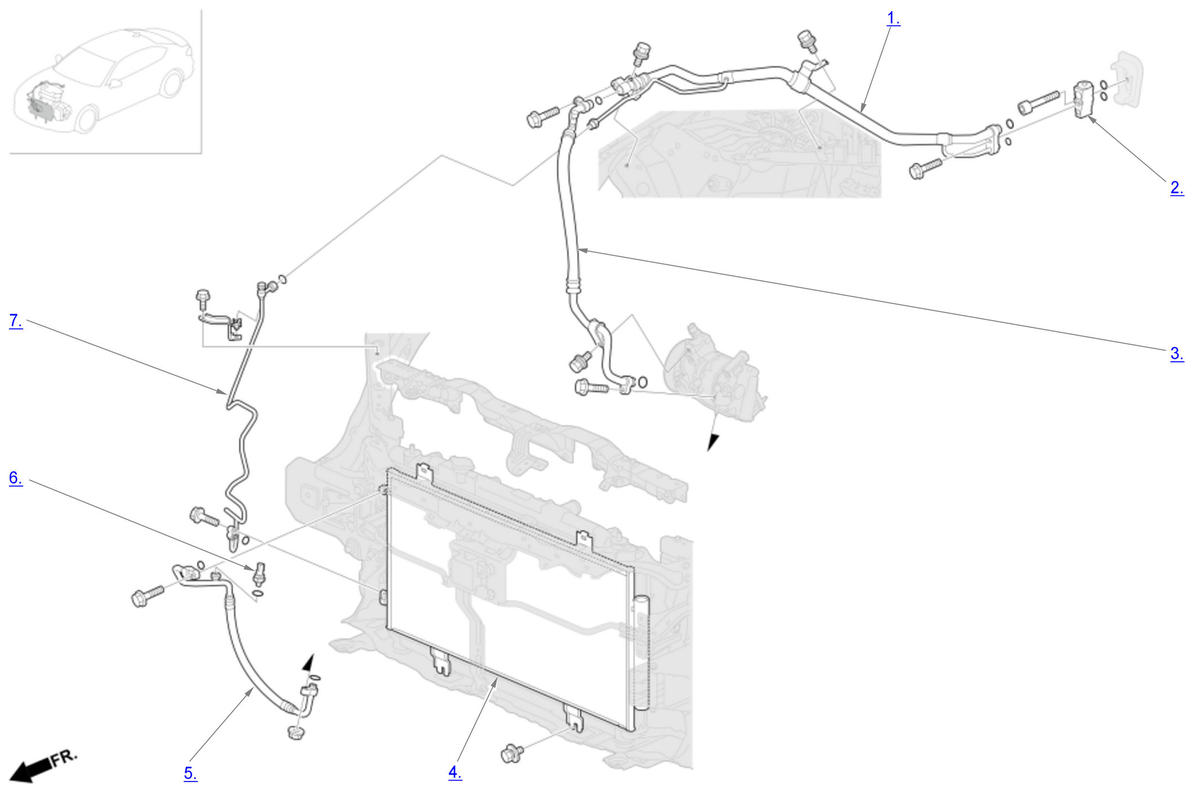

GHH558822Courtesy of HONDA, U.S.A., INC.

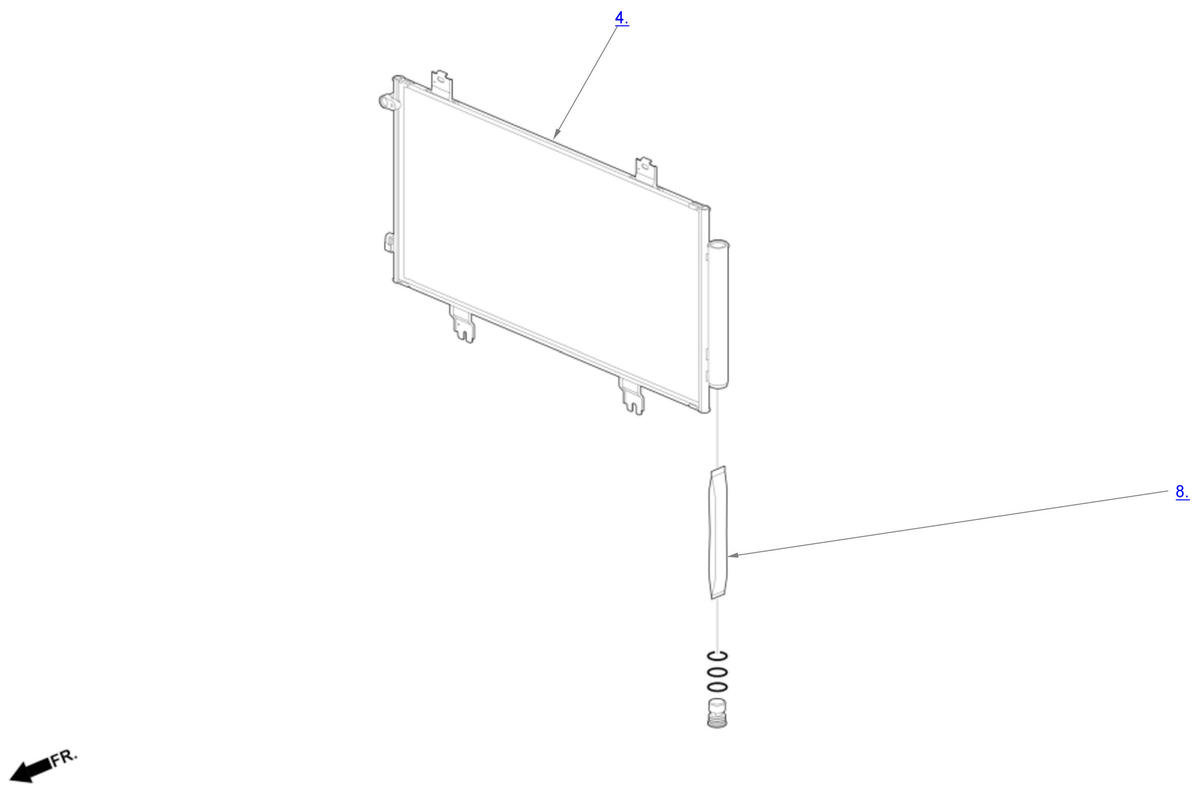

GHH558823Courtesy of HONDA, U.S.A., INC.

3.0 L Engine

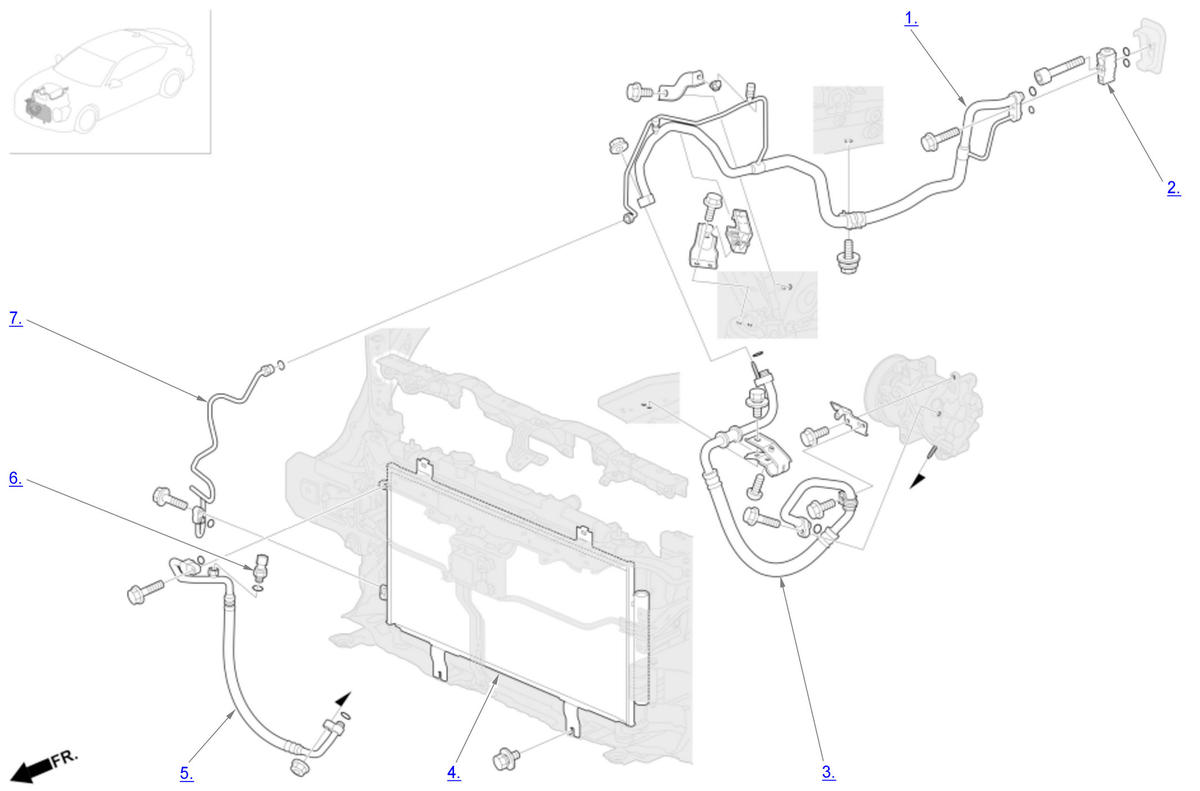

GHH558824Courtesy of HONDA, U.S.A., INC.

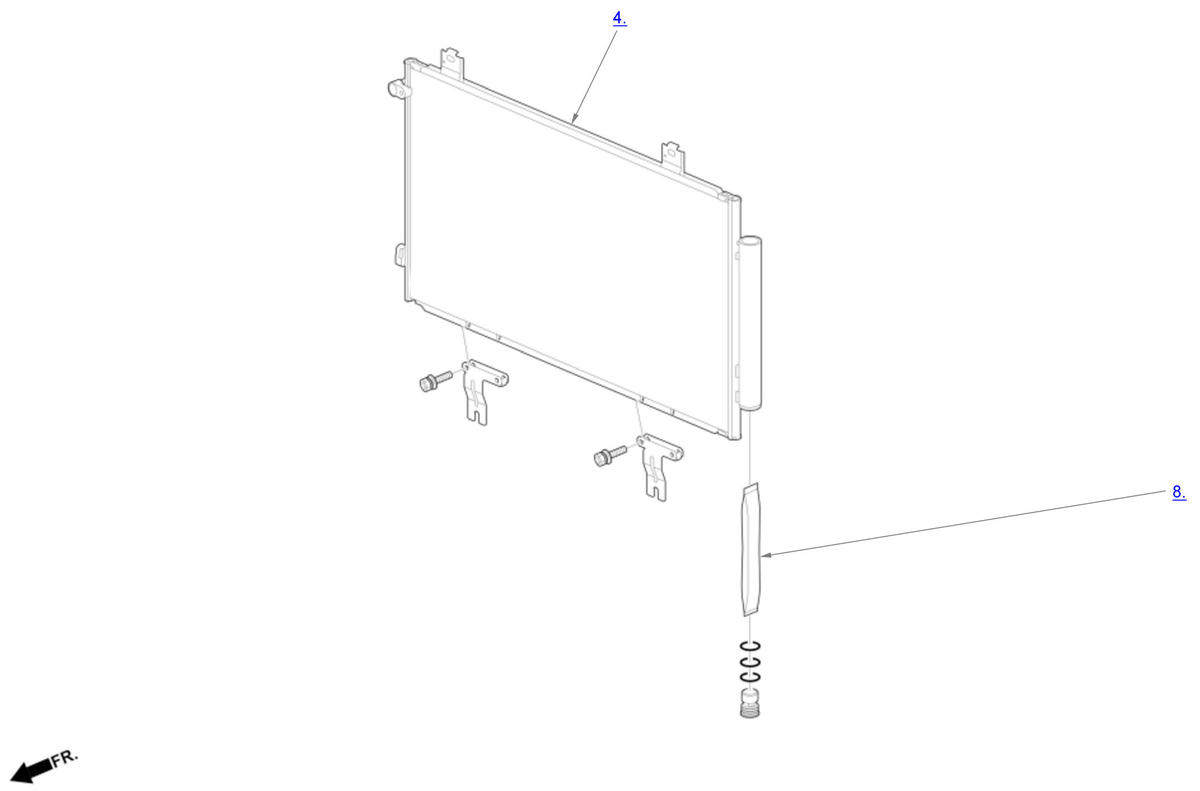

GHH558825Courtesy of HONDA, U.S.A., INC.
