Chain Case/Cam Chain Area (2.0L Engine): Notes

Special Tools Required

Image Description/Tool Number

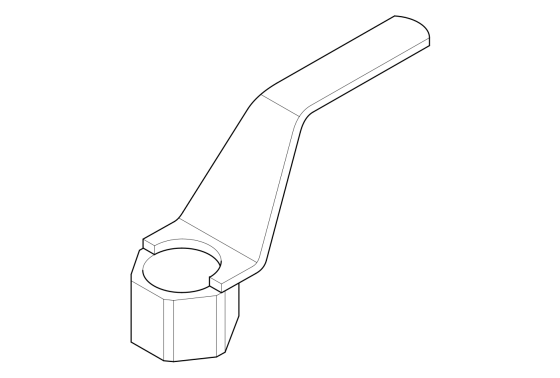

GHH478517Courtesy of HONDA, U.S.A., INC.
Holder, Offset Pulley 07AAB-RJAA101
GHH160781Courtesy of HONDA, U.S.A., INC.
Socket, 19 mm 07JAA-001020A

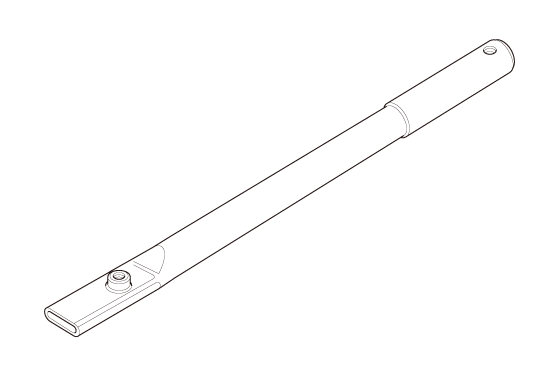

GHH160782Courtesy of HONDA, U.S.A., INC.
Holder Handle 07JAB-001020B

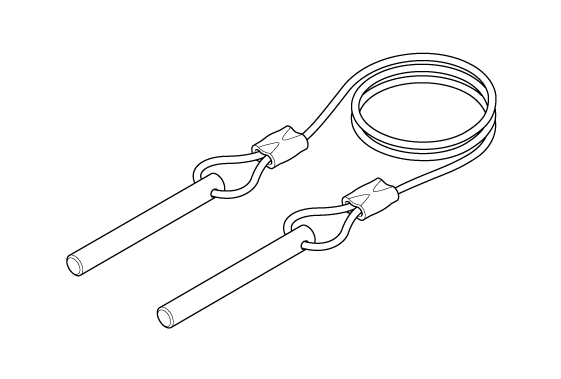

GHH478516Courtesy of HONDA, U.S.A., INC.
Camshaft Lock Pin Set 07AAB-RWCA120

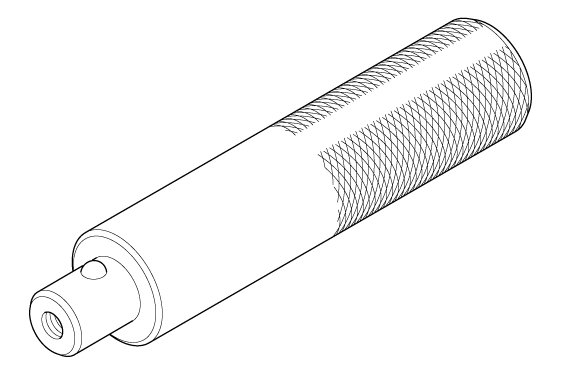

GHH157152Courtesy of HONDA, U.S.A., INC.
Driver Handle, 15 x 135L 07749-0010000

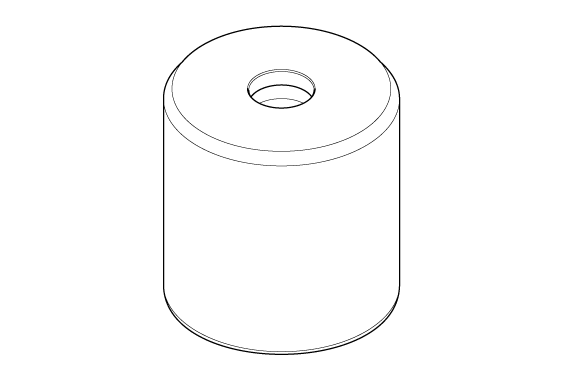

GHH164697Courtesy of HONDA, U.S.A., INC.
Hub Dis/Assembly Tool, 42 mm 07GAF-SD40200
