Exploded View

For replacement of components listed below, see Repair Procedure .

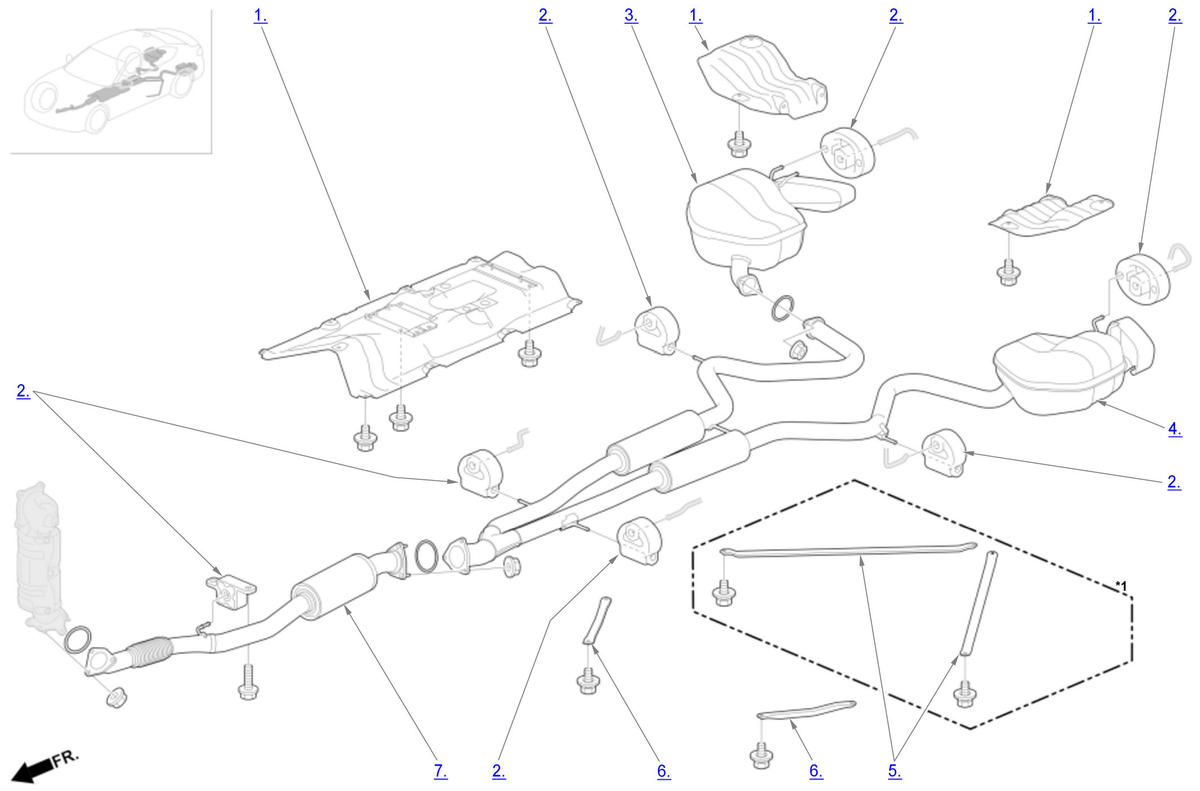

2.0 L Engine

Courtesy of HONDA, U.S.A., INC.

*1: With AWD

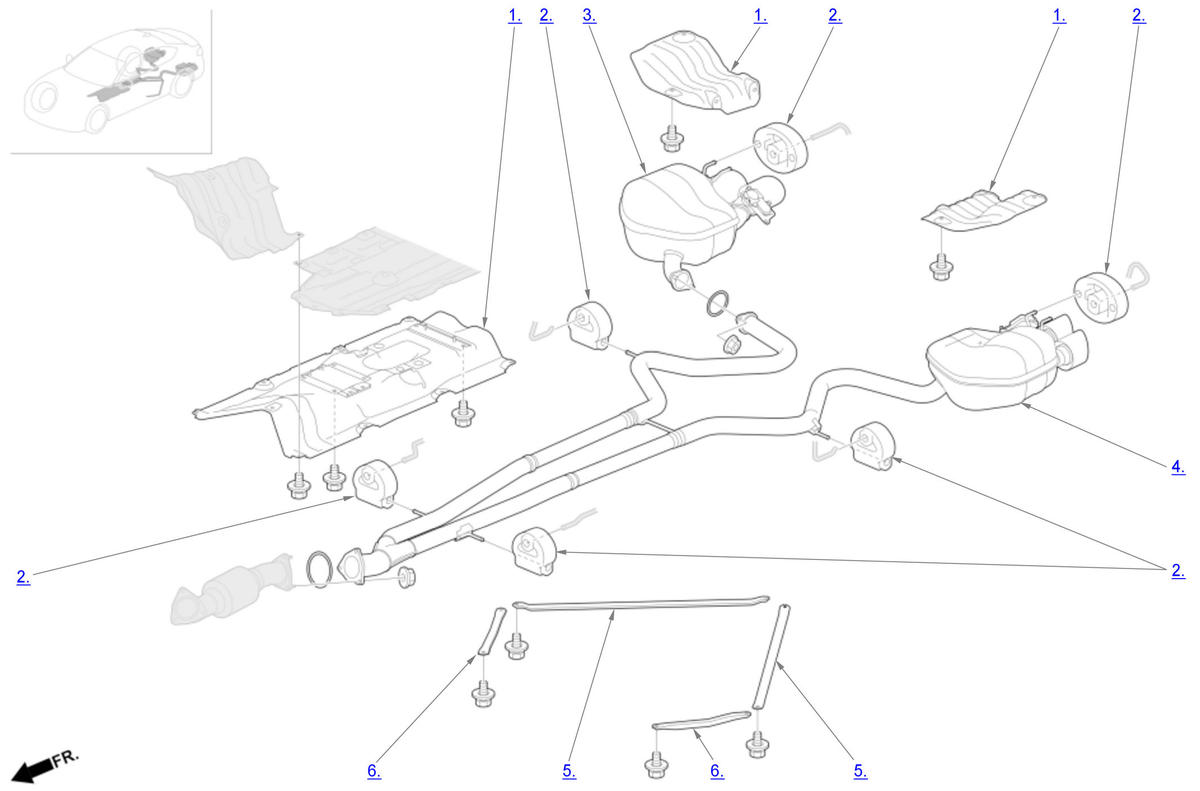

3.0 L Engine

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.

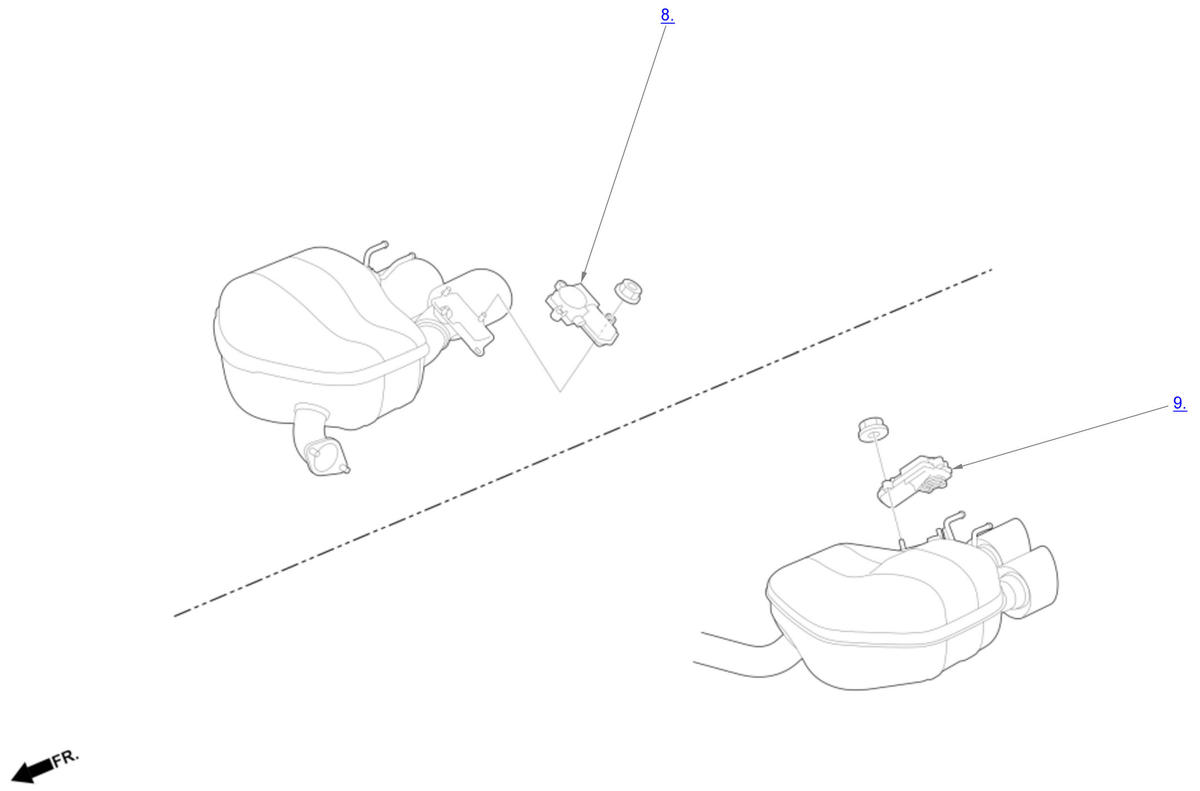

Exhaust Pipe / Muffler Area Components

Component Name	Callout
Heat Shield	1
Rubber Mount	2
Right Muffler	3
Left Muffler	4
Rear Floor Rear Brace	5
Rear Floor Front Brace	6
Exhaust Pipe A	7
Right Active Exhaust Valve Actuator	8
Left Active Exhaust Valve Actuator	9
