Inspection Outline

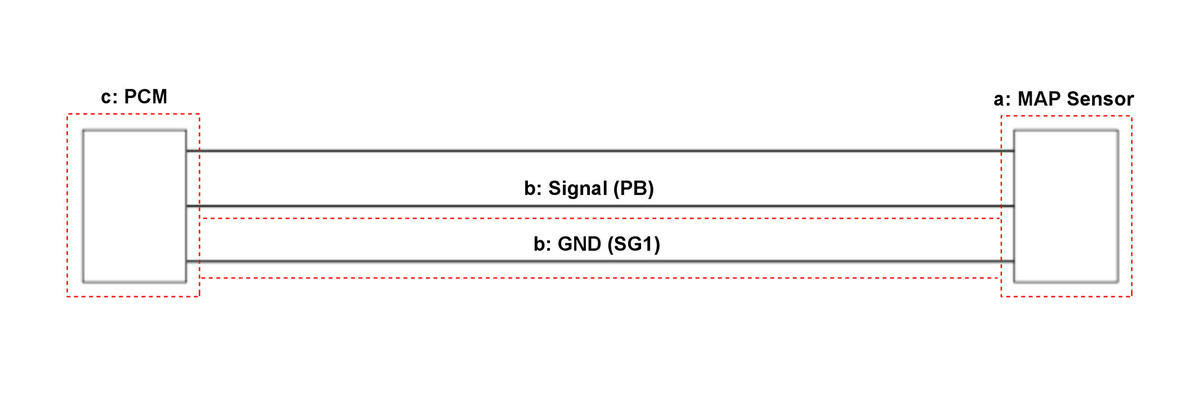

The components to be tested are indicated by a dotted line.
Courtesy of HONDA, U.S.A., INC.
Inspection Items
Work Items
a
MAP Sensor
MAP Sensor Inspection
b
External Circuit
PB, SG1 Open Wire Inspection
c
PCM
PCM Inspection
Courtesy of HONDA, U.S.A., INC.
