Container For Additional Junction Unit In Engine Compartment

REMOVAL

1. Disconnect the negative battery terminal.

   Courtesy of CHRYSLER GROUP, LLC

2. Undo the fixing screws (1a) and remove the cover (1b) for the engine compartment junction unit.

   Courtesy of CHRYSLER GROUP, LLC

3. Undo the fixing nut (1a) and disconnect the cable (1b) from the engine compartment junction unit.
4. Position the engine compartment additional junction unit to one side.

   Courtesy of CHRYSLER GROUP, LLC

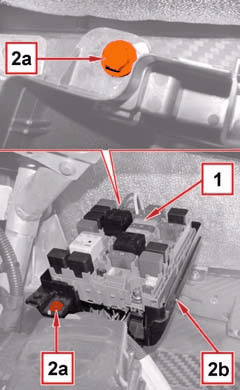

5. Undo the fixing screws (2a) and remove the container (2b) for the engine compartment additional junction unit.

INSTALLATION

1. Place the engine compartment additional junction unit container in its housing and tighten the fixing screws.
2. Position the engine compartment additional junction unit.
3. Connect the cable for the engine compartment junction unit and tighten the fixing nut.
4. Position the engine compartment junction unit cover and tighten the fixing screws.
5. Connect the negative battery terminal.
