Torque Specifications
Courtesy of CHRYSLER GROUP, LLC
Courtesy of CHRYSLER GROUP, LLC
Component
Fixing
Size
Value (Nm)

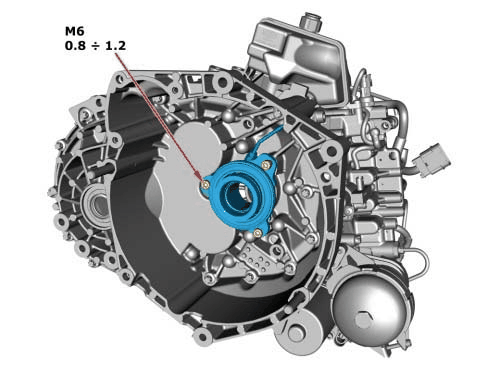

Even speed clutch control hydraulic coaxial actuator
Screw
M6
10

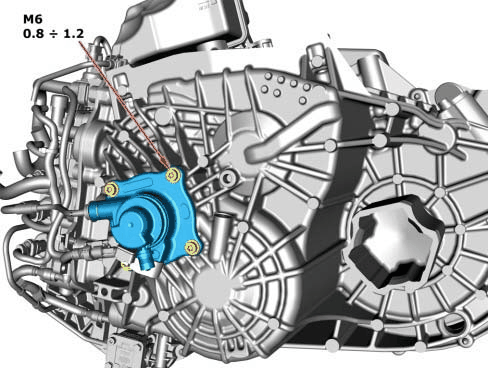

Odd speed clutch control hydraulic actuator
Screw
M6
10
Courtesy of CHRYSLER GROUP, LLC
Component
Fixing
Size
Value (Nm)

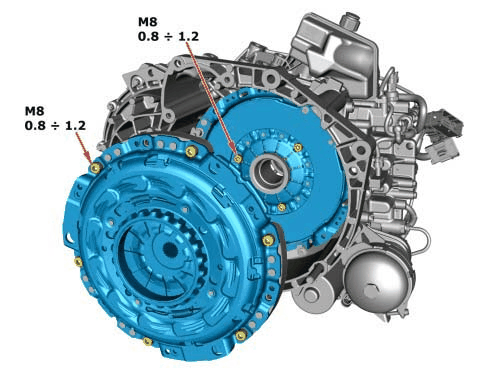

Even speed clutch mechanism
Screw
M8
25
Odd speed clutch mechanism
Screw
M8
25
Courtesy of CHRYSLER GROUP, LLC
