Description And Operation

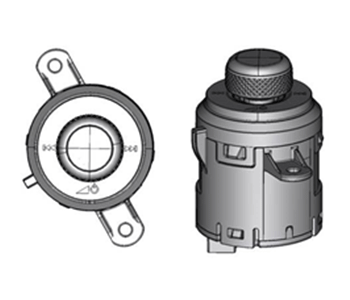

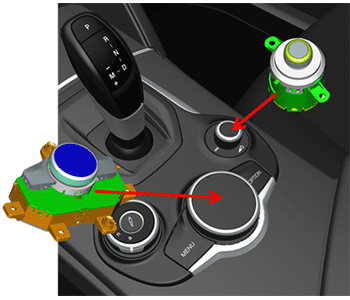

- Control knob for Entertainment Multimedia Control Module (EMCM) infotainment controls
- Volume setting knob
| Movements | Function |
|---|---|
| Rotation | Volume adjustment |
| Right Left |
Next track Next radio station |
| Long press | Radio ON/OFF |

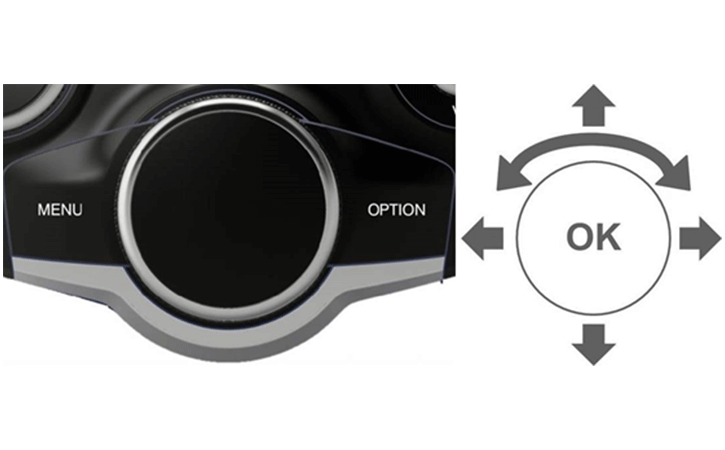

| Movements | Function |
|---|---|
| Rotation | Scroll through the menu items Zoom + / - (maps) |
| Press knob | Brief: confirm (OK) Long: save radio presetting |
| Turn right | Open submenu Move rightwards (maps) Hold pressed to open the navigator control bar |
| Turn left | Go to the previous menu level/go back Move leftwards (maps) |
| Move knob upwards | Open Multitasking menu Move upwards (maps) Hold pressed to exit radio presetting bar |
| Move knob downwards | Open Navigator or Phone (if active and shown on notification bar) Exit Multitasking menu Move downwards (maps) Hold pressed to open radio presetting bar |
| Menu button | Go back to main menu |
| Option button | Button for rapidly accessing general and shortcut settings |
