Description And Operation: 2.0L

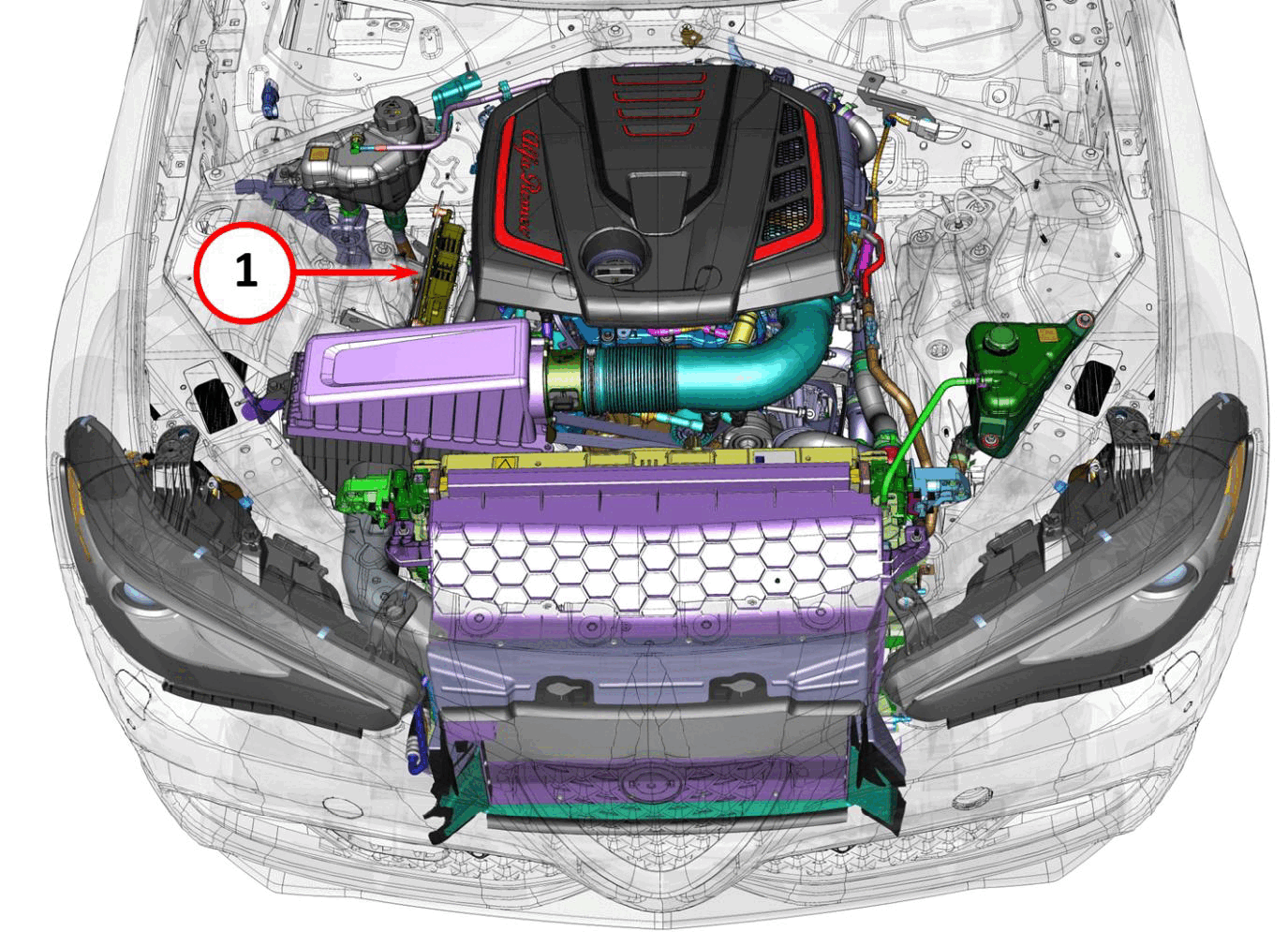

The Powertrain Control Module (PCM) (1) monitors and manages all engine parameters to optimize performance and fuel consumption by use of real-time responses to different operating conditions.
The 2.0 T4 MultiAir engine management is fairly complex, mainly due to the direct fuel injection and the MultiAir module, which the PCM uses to introduce air into the cylinders according to variable intake valve lift laws.
The engine management system is designed with the following goals:
- Achieve power, torque profile and fuel efficiency performance goal.
- Comply with the emission limits expected for each market.
Below, is a list of the main requirements for electronic engine management:
- Direct fuel injection with fuel demand control via high-pressure pump solenoid valve and high-pressure injection into the combustion chamber.
- Multi-injection capacity (up to 2 injections per cycle)
- Monitor the oxygen level in the exhaust using 1 broadband oxygen sensor upstream of the catalytic converter and 1 On/Off oxygen sensor downstream of the catalytic converter.
- Monitor the quantity of intake oxygen using a broadband oxygen sensor.
- Turbocharger with boost pressure control through an electric actuator that varies the geometry.
- Manage the process of introducing air into the cylinders with the MultiAir system
- A PCM that interfaces with the Next-Gen vehicle architecture.

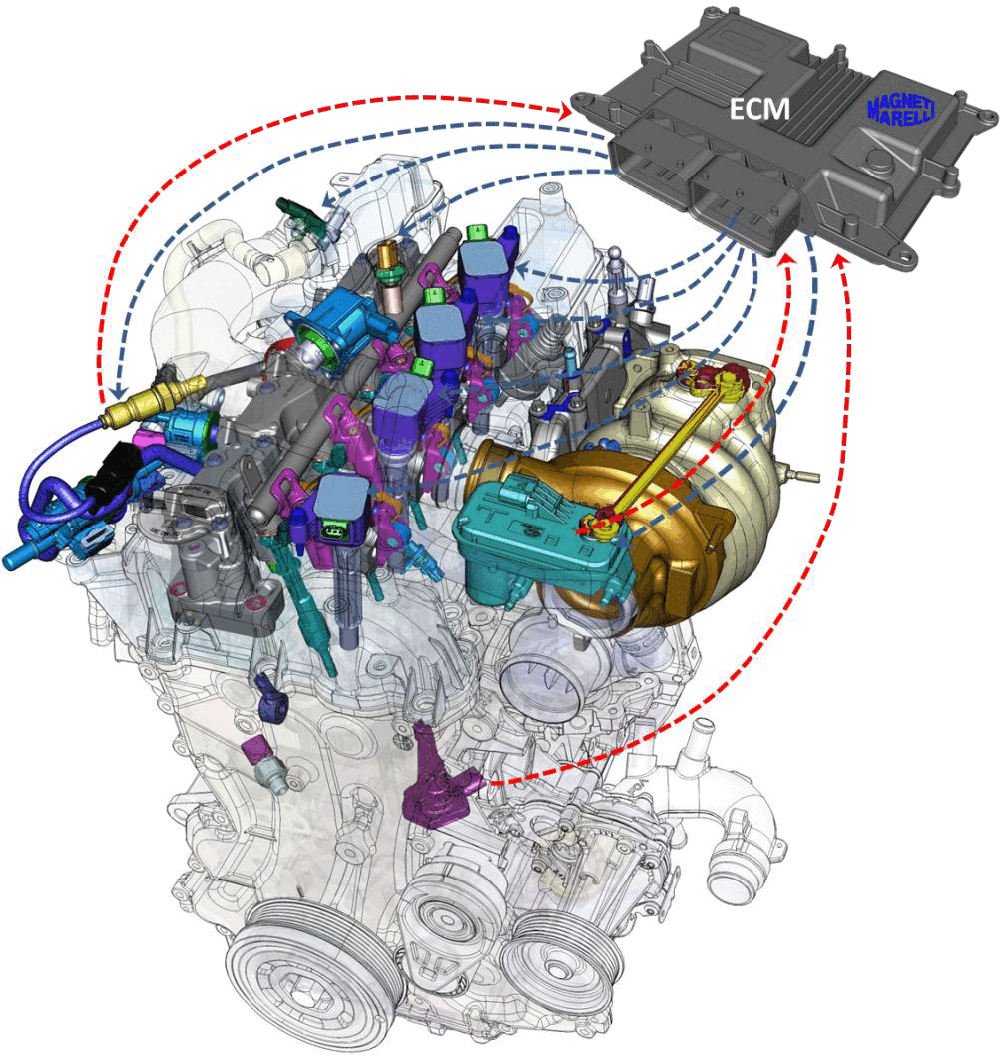

The PCM manages the various engine systems through dedicated sensors and actuators.
Below is a list of sensors and actuators that only respond to PCM Primary and PCM Secondary:
SENSORS
- RPM sensor
- Engine oil temperature sensor
- Turbocharging pressure sensor
- Clutch pedal position sensor
- Hood switch (where provided)
- HT cooling system expansion tank level switch
- Accelerator pedal position sensor
- On/Off oxygen sensor downstream of the catalytic converter
- Broadband planar oxygen sensor upstream of the catalytic converter
- Broadband planar oxygen sensor upstream of the throttle body
- Oil pressure and temperature sensor
- Rail high-pressure fuel sensor
- Intake air temperature and pressure sensor
- Low-pressure system fuel pressure and temperature sensor
- Timing sensor
- Knock sensor (x2)
- Exhaust gas (EGR) temperature sensor
- MultiAir module oil temperature sensor
- Climate control system linear pressure sensor
- Engine coolant temperature sensor for the LT system
- Blow-by pressure sensor
- Engine oil level and temperature sensor
- Flow meter
ACTUATOR
- Canister solenoid valve
- Fuel vapor system check solenoid valve (OBD)
- Dump solenoid valve
- LT cooling circuit electric pump
- PEM module
- Electric fan activation module
- Fuel supply system high-pressure pump flow regulator
- Variable displacement oil pump solenoid valve
- UNIAIR control solenoid valve
- Waste gate valve control actuator
- Injectors
- Throttle body
- Ignition coils
- EGR solenoid valve with built-in position sensor
