Module-Powertrain Control C2 (2.0L) Connector End View (D3821B)

Harness-Family: Engine_20L

Color: BLACK

Gender: FEMALE

Part Number: 1_928_405_735-1_928_405_725-1_928_405-457

Part Description: Not Available

Connector No: D3821B

Option: 2.0L

Repair Kit Part Number: Not Available

Cavity Count: null

Fig 1: Module-Powertrain Control C2 Connector End View (2.0L)
GCWD1000870Courtesy of CHRYSLER

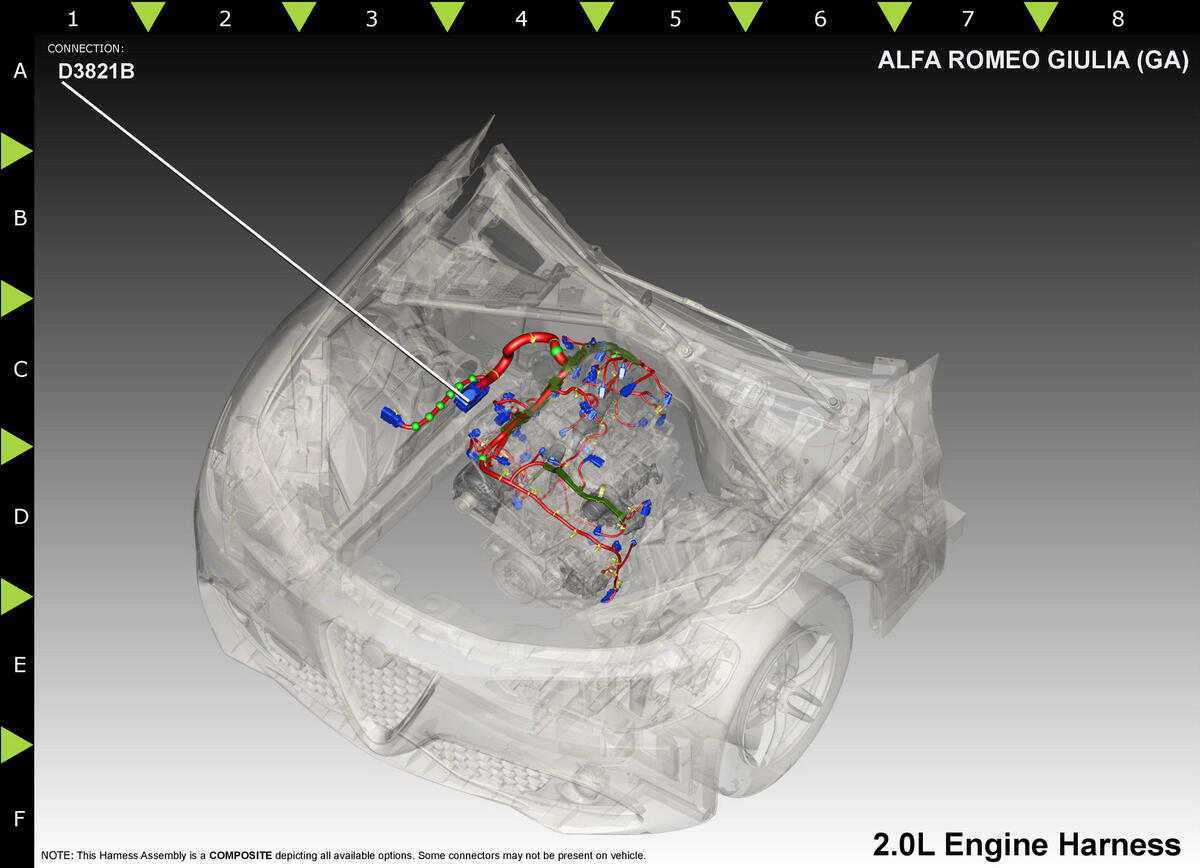

Fig 2: Module-Powertrain Control C2 Component Location (2.0L)
GCWD1267687Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
1 K15 BU/GY 1.0 COIL CONTROL 4 2.0L
2 K18 BU/OG 1.0 COIL CONTROL 3 2.0L
3 K17 BU/BN 1.0 COIL CONTROL 2 2.0L
4 K19 BU/OG 1.0 COIL CONTROL 1 2.0L
7 K932 BU 0.35 EGR TEMP SENSOR SIGNAL 2.0L
8 G24 VT/YE 0.35 EOT SIGNAL 2.0L
9 G224 VT/BN 0.35 EOT SIGNAL 2.0L
10 K48 GN 0.35 CAC SIGNAL 2.0L
11 K2 VT/OG 0.35 ECT SIGNAL 2.0L
14 K162 BN/GY 0.35 FUEL RAIL PRESSURE SIGNAL 2 2.0L
15 K179 YE/BN 0.35 FUEL RAIL PRESSURE SIGNAL 1 2.0L
16 K48 BU/GN 0.35 CAC SIGNAL 2.0L
17 K1 VT/BN 0.35 MAP SIGNAL 2.0L
18 K926 BU/GY 0.5 CRANKCASE SENSOR SIGNAL 2.0L
19 G6 VT/GY 0.35 EOP SIGNAL 2.0L
20 K122 BN/GN 0.35 TP 2 SIGNAL 2.0L
21 K22 BN/OG 0.35 TP SIGNAL 2.0L
22 K14 BN 0.5 INJECTOR 4 CONTROL 2.0L
23 K614 WH/BN 0.5 INJECTOR 4 LOW SIDE CONTROL 2.0L
25 K11 BN/YE 0.5 INJECTOR 1 CONTROL 2.0L
26 K611 OG/BN 0.5 INJECTOR 1 LOW SIDE CONTROL 2.0L
28 K683 BU/GY 0.35 EGR SIGNAL 2.0L
29 K136 BU/OG 0.35 WASTEGATE POSITION SIGNAL 2.0L
30 K37 BN/RD 0.35 BOOST PRESSURE SIGNAL 2.0L
33 K79 BN/OG 0.75 O2 1/1 HEATER CONTROL 2.0L
34 K902 BN/GN 0.35 O2 1/1 RETURN 2.0L
35 K89 BN/RD 0.35 O2 1/1 POSITIVE CURRENT CONTROL 2.0L
36 K41 BU 0.35 O2 1/1 SIGNAL 2.0L
37 K103 BN/BU 0.35 O2 1/1 PUMP CELL CURRENT TRIM 2.0L
38 K81 BN/RD 0.75 O2 INTAKE HEATER CONTROL 2.0L
39 K907 GY/GN 0.5 O2 INTAKE RETURN 2.0L
40 K735 BN/GN 0.5 O2 INTAKE PUMP CURRENT 2.0L
41 K45 BU/GN 0.5 O2 INTAKE SIGNAL 2.0L
42 K732 BN 0.5 O2 INTAKE PUMP CELL CURRENT TRIM 2.0L
43 K13 BN/BU 0.5 INJECTOR 3 CONTROL 2.0L
44 K613 GY/BN 0.5 INJECTOR 3 LOW SIDE CONTROL 2.0L
46 K12 BN/BU 0.5 INJECTOR 2 CONTROL 2.0L
47 K612 YE/BN 0.5 INJECTOR 2 LOW SIDE CONTROL 2.0L
48 K916 BN/OG 0.35 SENSOR GROUND 2.0L
49 F853 BN/VT 0.35 5 VOLT SUPPLY 2.0L
50 K915 BN/WH 0.35 SENSOR GROUND 2.0L
51 F854 GY/VT 0.35 5 VOLT SUPPLY 2.0L
52 K917 BN/BU 0.35 SENSOR GROUND 2.0L
53 F851 BU/VT 0.35 5 VOLT SUPPLY 2.0L
54 K924 BK 0.35 KS 2 RETURN 2.0L
55 K242 YE 0.35 KS 2 SIGNAL 2.0L
56 K942 RD 0.35 KS 1 RETURN 2.0L
57 K42 WH 0.35 KS 1 SIGNAL 2.0L
60 D511 WH/BN 0.5 LIN BUS 2.0L
61 G62 VT/YE 0.35 OIL PUMP CONTROL 2.0L
62 K52 BU/WH 0.5 EVAP PURGE CONTROL 2.0L
64 K365 BU/OG 0.75 FUEL QUANTITY CONTROL 2.0L
65 N38 GN/VT 0.75 VVA SOLENOID 4 SIGNAL 2.0L
66 N36 BU/VT 0.75 VVA SOLENOID 3 SIGNAL 2.0L
67 N34 VT/RD 0.75 VVA SOLENOID 2 SIGNAL 2.0L
68 N32 BN/VT 0.75 VVA SOLENOID 1 SIGNAL 2.0L
69 K914 BN/WH 0.35 SENSOR GROUND 2.0L
70 F855 VT/YE 0.35 5 VOLT SUPPLY 2.0L
71 K900 BU/GN 0.35 SENSOR GROUND 2.0L
72 F856 YE/VT 0.35 5 VOLT SUPPLY 2.0L
73 K922 BN/BU 0.35 TP SENSOR RETURN 2.0L
74 F851 GN/VT 0.35 5 VOLT SUPPLY 2.0L
75 K148 BK/GY 0.35 KNOCK SENSOR 2 SHIELD 2.0L
76 Z902 BK 0.35 GROUND 2.0L
77 K358 GN 0.35 OIL LEVEL SIGNAL 2.0L
78 K44 BU/GY 0.35 CMP SIGNAL 2.0L
79 K925 BU/GY 0.35 CKP GROUND 2.0L
80 K24 BN/BU 0.35 CKP SIGNAL 2.0L
82 K150 BN/GN 0.5 TURBOCHARGER SURGE VALVE CONTROL 2.0L
84 K72 BN/YE 0.5 OBD VENT VALVE CONTROL 2.0L
85 K366 BU/GN 0.75 FUEL QUANTITY SOLENOID 12 VOLT SUPPLY 2.0L
86 N39 GN 0.75 VVA SOLENOID 4 RETURN 2.0L
87 N37 BU 0.75 VVA SOLENOID 3 RETURN 2.0L
88 N35 RD 0.75 VVA SOLENOID 2 RETURN 2.0L
89 N33 BN 0.75 VVA SOLENOID 1 RETURN 2.0L
96 K139 BN 0.35 WASTEGATE SOLENOID (-) CONTROL 2.0L
97 K131 BU/VT 0.35 WASTEGATE SOLENOID (+) CONTROL 2.0L
98 K682 VT 0.75 EGR CONTROL 1 2.0L
99 K685 BN/RD 0.75 EGR CONTROL 2 2.0L
100 K448 BN/RD 0.75 ETC MOTOR (-) 2.0L
101 K447 BN/YE 0.75 ETC MOTOR (+) 2.0L
102 F344 BN/GY 0.5 FUSED ASD RELAY OUTPUT 2.0L
(1) Pins not listed are not used for this connector
