Sensor-Occupant Detection (Standard) Connector End View (D2457A)

Harness-Family: Seat_Passenger

Color: BLACK

Gender: MALE

Part Number: 6098-4868

Part Description: Not Available

Connector No: D2457A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

Fig 1: Sensor-Occupant Detection Connector End View (Standard)

Courtesy of CHRYSLER

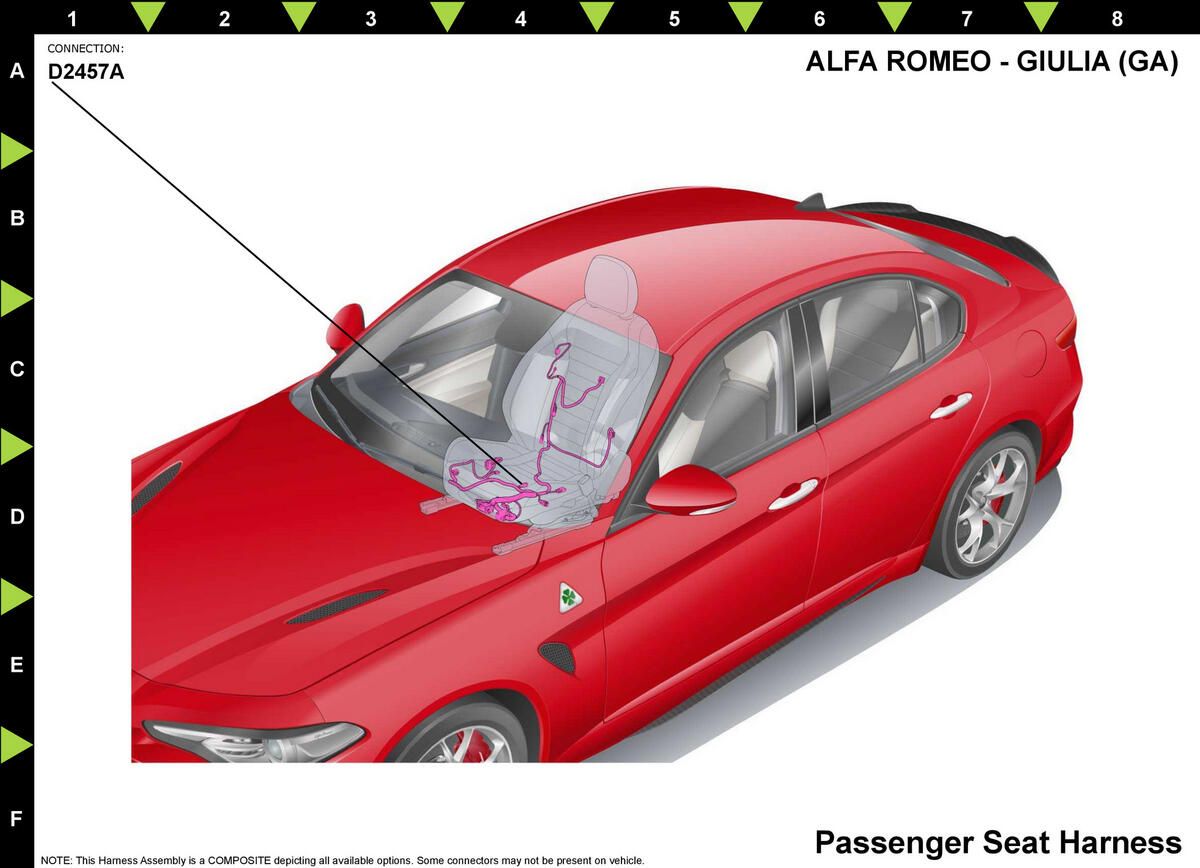

Fig 2: Sensor-Occupant Detection Component Location (Standard)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

R730

0.5

PASSENGER SEAT DETECTION RETURN

N/A

R140

0.5

RIGHT SIDE IMPACT PRESSURE SENSOR SIGNAL

N/A

⁽¹⁾	Pins not listed are not used for this connector
