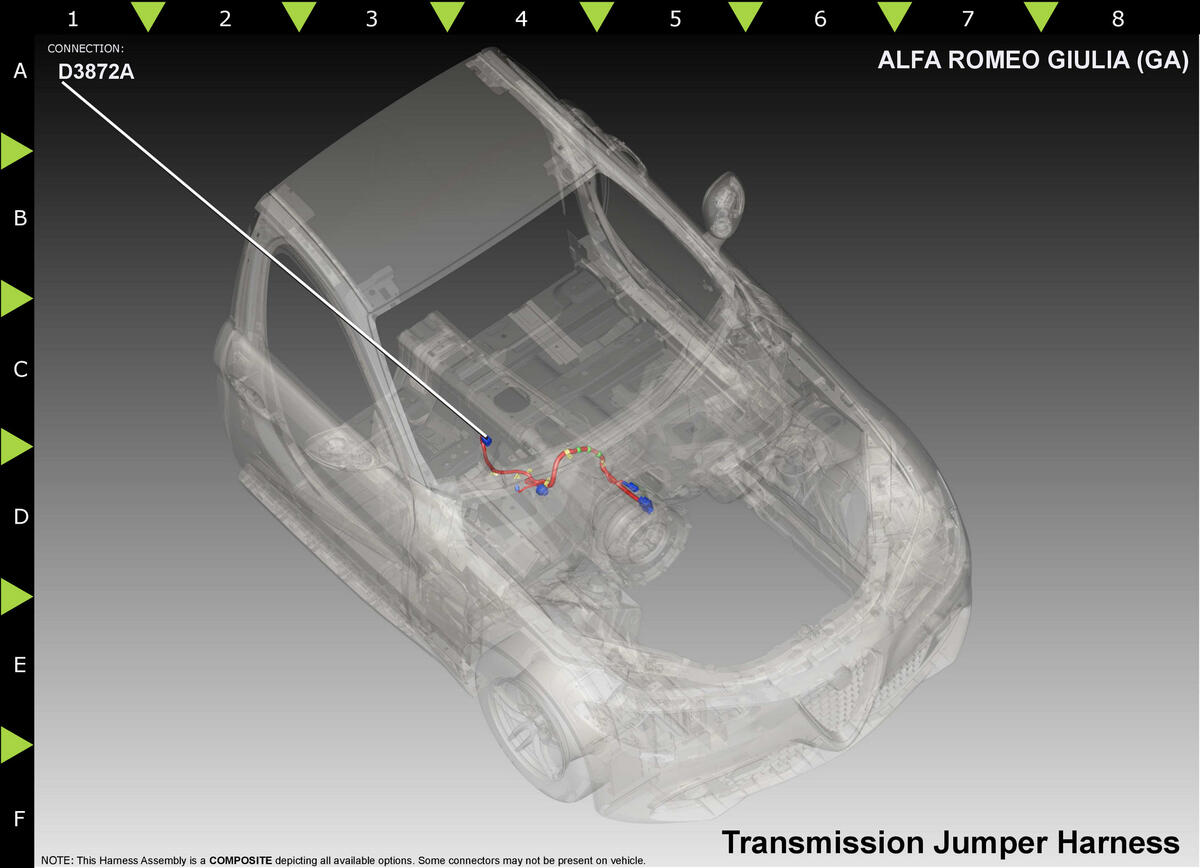

Module-Drive Train Control C1 (AWD) Connector End View (D3872A)
Harness-Family: Transmission_Jumper
Color: BLACK
Gender: FEMALE
Part Number: 1/14601/87
Part Description: Not Available
Connector No: D3872A
Option: AWD
Repair Kit Part Number: Not Available
Cavity Count: null
| Pin | Circuit | Wire Color | Gauge/Size | Function | Option | ||
|---|---|---|---|---|---|---|---|
| 1 | Z101 | BK | 2.5 | GROUND | AWD EXCEPT EU6 | ||
| 3 | A901 | RD | 2.5 | FUSED B(+) | AWD EXCEPT EU6 | ||
| 6 | D11 | GN | 0.5 | CAN C (+) | AWD EXCEPT EU6 | ||
| 7 | D12 | BN | 0.5 | CAN C (-) | AWD EXCEPT EU6 | ||
| 8 | F741 | DB | 0.5 | IGNITION RUN/START OUTPUT | AWD EXCEPT EU6 | ||
|
|||||||
