Module-Electronic Overhead (Standard) Connector End View (D6627A)

Harness-Family: Body

Color: BROWN

Gender: FEMALE

Part Number: 1/11365/98

Part Description: Not Available

Connector No: D6627A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

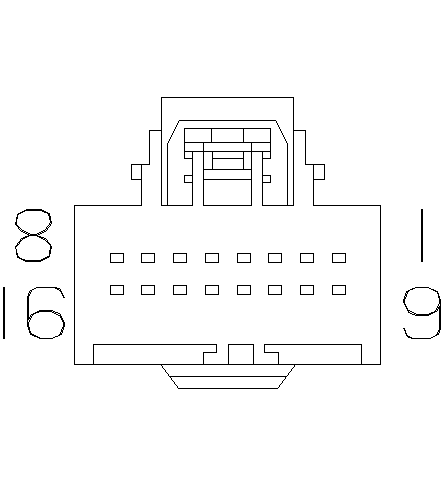

Fig 1: Module-Electronic Overhead Connector End View (Standard)
GCWD1011985Courtesy of CHRYSLER

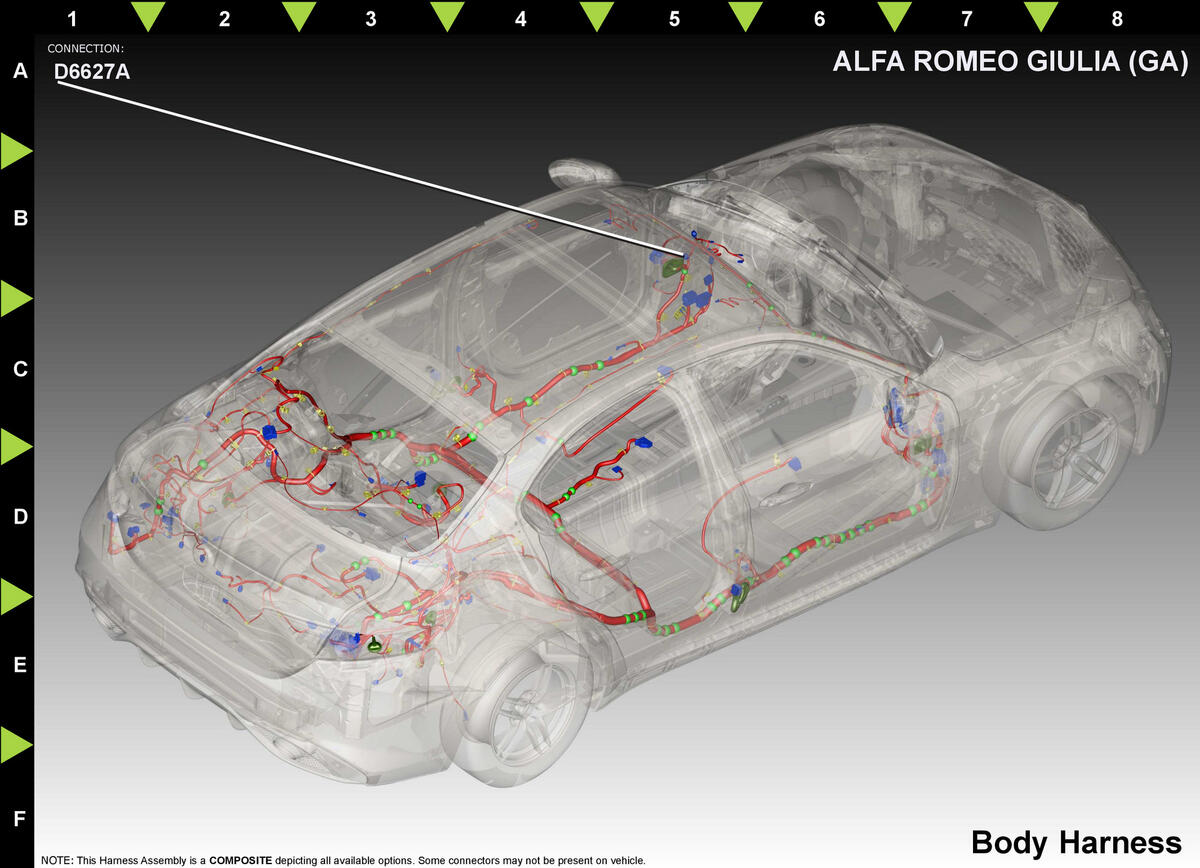

Fig 2: Module-Electronic Overhead Component Location (Standard)
GCWD1267299Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
1 A901 RD/GN 0.75 FUSED B(+) N/A
2 Z332 BK 0.75 GROUND N/A
3 E3 YE 0.5 PANEL LAMPS DIMMER SWITCH MUX N/A
4 M108 YE/GN 0.5 AMBIENT LIGHTING CONTROL N/A
5 M11 BK/VT 0.5 COURTESY LAMPS DRIVER N/A
6 M1 VT 0.5 COURTESY LAMPS DRIVER N/A
7 M20 WH 0.5 DOME LAMP CONTROL N/A
8 R168 GN/GY 0.35 AIRBAG OFF LAMP PASSENGER N/A
9 R167 GN/YE 0.35 AIRBAG ON LAMP PASSENGER N/A
10 D401 GN/GY 0.35 LIN BUS 1 SECURITY
11 F741 DB/WH 0.5 IGNITION RUN/START OUTPUT SECURITY
12 Q4 OG/DB 0.35 SUNROOF VENT SWITCH SENSE SUNROOF
13 Q3 YE/DB 0.35 SUNROOF OPEN SWITCH SENSE SUNROOF
14 Q5 YE/RD 0.35 SUNROOF CLOSE SWITCH SENSE SUNROOF
15 Q556 OG/BK 0.35 SUNROOF SHADE PWR OPEN (+) SUNROOF
16 Q56 OG/GY 0.35 SUNROOF SHADE PWR CLOSE (+) SUNROOF
(1) Pins not listed are not used for this connector
