Module-Entertainment-Multimedia Control C1 (Standard) Connector End View (D2275A)

Harness-Family: Console_Center

Color: BLACK

Gender: FEMALE

Part Number: 0/12099/07

Part Description: Not Available

Connector No: D2275A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

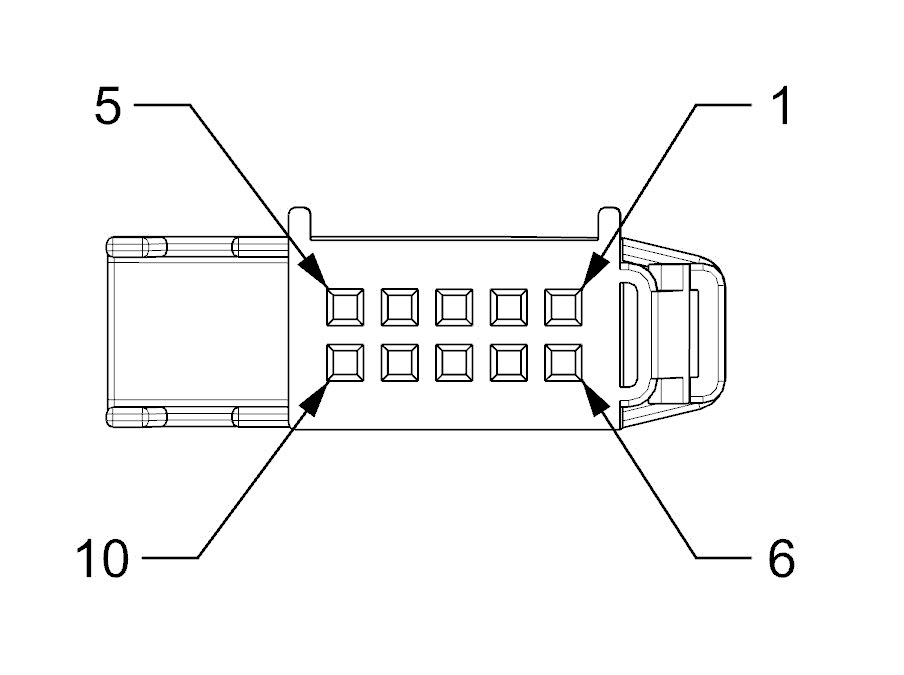

Fig 1: Module-Entertainment-Multimedia Control C1 Connector End View (Standard)
GCWD1204490Courtesy of CHRYSLER
Fig 2: Module-Entertainment-Multimedia Control C1 Component Location (Standard)
GCWD1267629Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
1 A901 WH/RD 0.5 FUSED B(+) BASE EXCEPT EU6
2 D408 WH/YE 0.35 LIN BUS LHD
3 Z221 BK 0.5 GROUND EXCEPT REAR HEATED SEATS
4 D157 DB 0.35 CAN IHS (+) BASE EXCEPT EU6
5 D158 WH 0.35 CAN IHS (-) BASE EXCEPT EU6
8 A901 WH/DB 0.5 FUSED B(+) LHD
9 Z221 WH/BK 0.5 GROUND LHD
10 X175 WH/GN 0.5 VOLUME SIGNAL 1 LHD
(1) Pins not listed are not used for this connector
