Module-HVAC (Standard) Connector End View (D3828A)

Harness-Family: HVAC

Color: GREEN

Gender: FEMALE

Part Number: 13589780

Part Description: Not Available

Connector No: D3828A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

Fig 1: Module-Hvac Connector End View (Standard)
GCWD1079483Courtesy of CHRYSLER

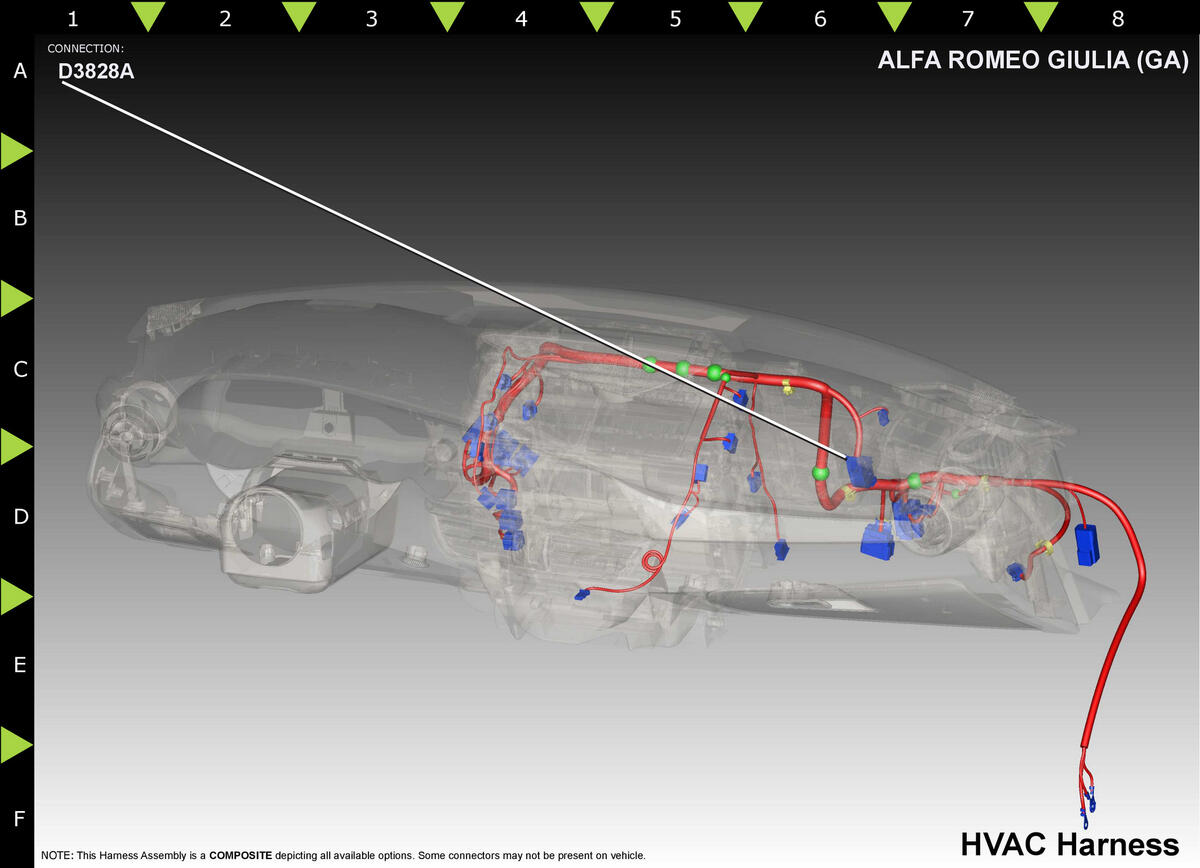

Fig 2: Module-Hvac Component Location (Standard)
GCWD1267538Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
1 K149 DB 0.5 AIR QUALITY SENSOR SIGNAL N/A
2 D158 WH/PK 0.35 CAN IHS (-) N/A
3 D157 YE/GY 0.35 CAN IHS (+) N/A
4 D158 BK/PK 0.35 CAN IHS (-) N/A
5 D157 WH/GY 0.35 CAN IHS (+) N/A
6 C235 WH/VT 0.35 LEFT MODE DOOR SIGNAL N/A
7 C324 BU/VT 0.35 LEFT DEFROST MODE DOOR SIGNAL N/A
8 C164 OG 0.35 LEFT FLOOR TEMPERATURE SENSOR SIGNAL N/A
9 C162 GN 0.5 LEFT PANEL TEMPERATURE SENSOR SIGNAL N/A
11 C806 BU/BK 0.35 BLOWER MOTOR RETURN N/A
12 D409 DB/GN 0.35 LIN BUS N/A
13 C131 BK/GN 0.5 SENSOR GROUND N/A
15 A901 YE/RD 0.5 FUSED B(+) N/A
16 C65 BU/WH 0.35 RIGHT MODE DOOR DRIVER 1 N/A
18 C326 GY/GN 0.35 REAR MODE DOOR SIGNAL N/A
19 C224 WH/BK 0.35 RIGHT BLEND DOOR SIGNAL N/A
20 C328 BU/RD 0.35 RIGHT DEFROST MODE DOOR SIGNAL N/A
21 C36 BU/PK 0.35 SNSR IN CAR TEMP SIG N/A
22 G39 DB/PK 0.35 SUN SENSOR SIGNAL 1 BASE
23 C130 WH 0.35 RIGHT FLOOR TEMPERATURE SENSOR SIGNAL N/A
24 C134 BN 0.5 RIGHT PANEL TEMPERATURE SENSOR SIGNAL N/A
26 C245 BN/GN 0.35 RIGHT MODE DOOR SIGNAL N/A
27 C144 BN/WH 0.35 RECIRC DOOR SIG N/A
28 Z103 BK/VT 0.35 GROUND N/A
29 C233 BU/WH 0.35 LEFT BLEND DOOR SIGNAL N/A
31 C68 GY/RD 0.35 RECIRCULATION DOOR DRIVER 1 N/A
33 C799 GY/BN 0.35 RIGHT DEFROST MODE DOOR DRIVER 1 N/A
34 C69 RD/PK 0.35 REAR MODE DOOR DRIVER 2 N/A
36 C268 BN/BK 0.35 RECIRCULATION DOOR DRIVER 2 N/A
37 C67 WH/OG 0.35 REAR MODE DOOR DRIVER 1 N/A
38 C807 YE/GN 0.35 LEFT DEFROST MODE DOOR DRIVER 2 BASE
39 C26 WH/GN 0.5 REFERENCE VOLTAGE SUPPLY N/A
41 C21 BU/DB 0.35 EVAPORATOR TEMPERATURE SENSOR SIGNAL BASE
42 G139 GY/VT 0.35 SUN SENSOR SIGNAL 2 N/A
43 C333 GY/BK 0.5 ACTUATOR GROUND N/A
44 K361 VT 0.5 PTC 2 RELAY CONTROL N/A
45 K360 YE 0.5 PTC 1 RELAY CONTROL N/A
46 K363 PK 0.5 PTC 3 RELAY CONTROL N/A
47 C255 OG/BK 0.35 LEFT BLEND DOOR DRIVER 2 N/A
48 C801 OG/GY 0.35 LEFT DEFROST MODE DOOR DRIVER 1 N/A
49 C252 YE/BK 0.35 RIGHT BLEND DOOR DRIVER 2 N/A
50 C66 GY/YE 0.35 LEFT MODE DOOR DRIVER 1 N/A
51 C265 GN/PK 0.35 RIGHT MODE DOOR DRIVER 2 N/A
52 C55 WH/RD 0.35 LEFT BLEND DOOR DRIVER 1 N/A
53 C266 RD/YE 0.35 LEFT MODE DOOR DRIVER 2 N/A
54 C808 PK/VT 0.35 RIGHT DEFROST MODE DOOR DRIVER 2 N/A
55 C52 GN/BK 0.35 RIGHT BLEND DOOR DRIVER 1 N/A
56 C27 RD/GN 0.5 A/C COMPRESSOR CONTROL N/A
57 C56 BU/GN 0.35 BLOWER MOTOR CONTROL N/A
59 F741 OG/WH 0.35 IGNITION RUN/START OUTPUT N/A
60 F741 PK/GN 0.5 IGNITION RUN/START OUTPUT N/A
(1) Pins not listed are not used for this connector
