Module-Keyless Ignition Node (Standard) Connector End View (D2664A)

Harness-Family: Steering_Wheel

Color: BLACK

Gender: FEMALE

Part Number: 50-57-9404

Part Description: Not Available

Connector No: D2664A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

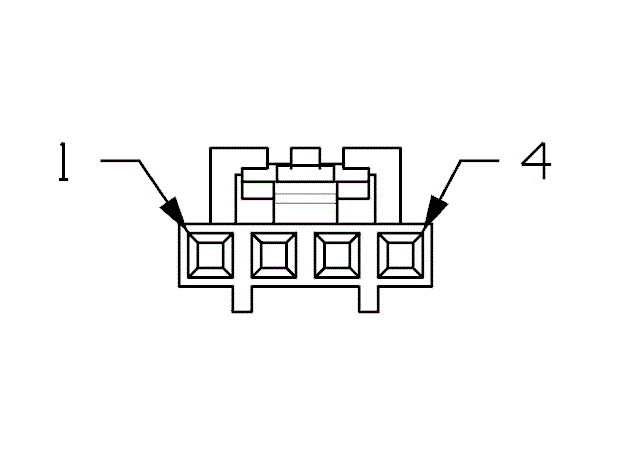

Fig 1: Module-Keyless Ignition Node Connector End View (Standard)

Courtesy of CHRYSLER

Fig 2: Module-Keyless Ignition Node Component Location (Standard)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

E12

RD/WH

0.35

PANEL LAMPS DRIVER

N/A

D122

0.35

SECURITY K LINE COMMUNICATION

N/A

Z908

0.35

GROUND

N/A

G20

0.35

IGNITION SWITCH SENSE

N/A

⁽¹⁾	Pins not listed are not used for this connector
