Module-Leak Detection (Standard) Connector End View (D6623A)

Harness-Family: Body

Color: BLACK

Gender: FEMALE

Part Number: 1/13359/97

Part Description: Not Available

Connector No: D6623A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

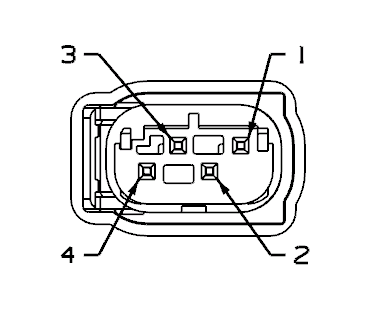

Fig 1: Module-Leak Detection Connector End View (Standard)

Courtesy of CHRYSLER

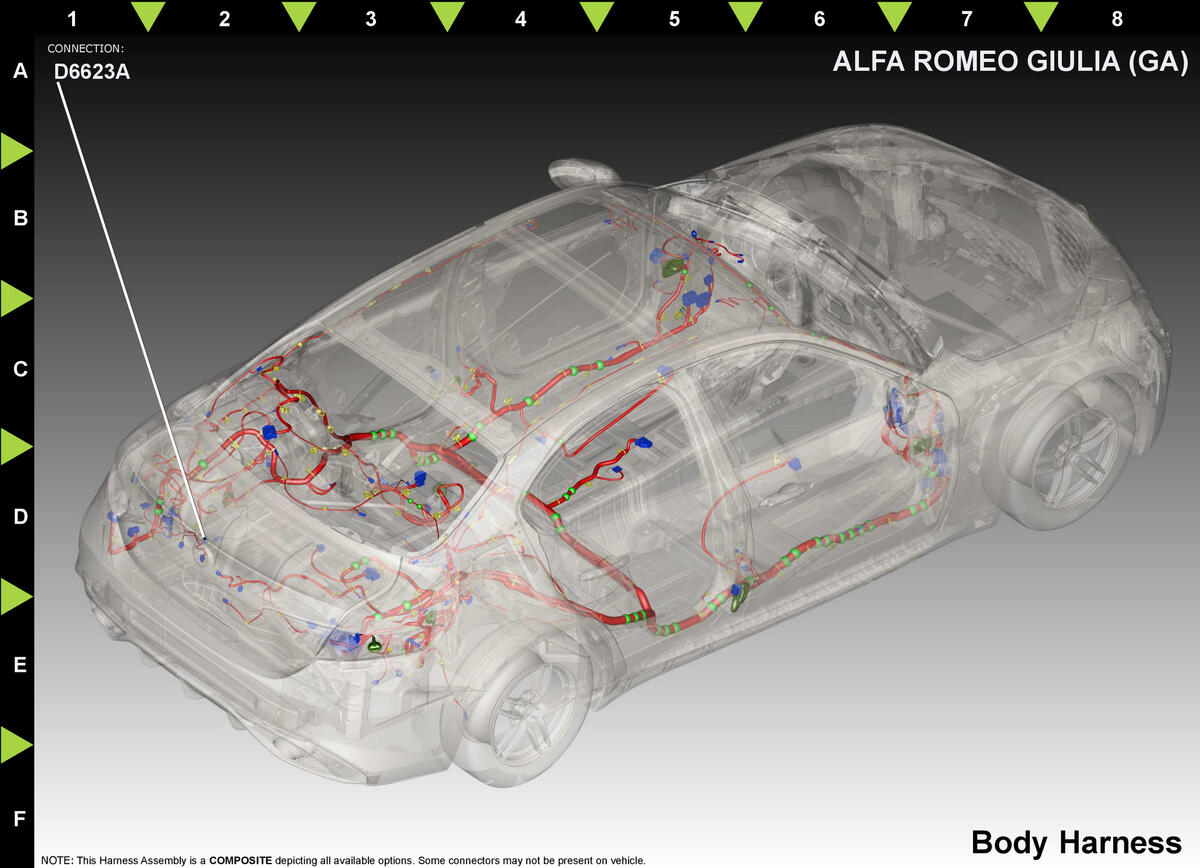

Fig 2: Module-Leak Detection Component Location (Standard)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

N46

0.5

LEAK DETECTION PUMP CONTROL

2.9L

N47

0.5

LEAK DETECTION PRESSURE SENSOR

2.9L

N48

DB/RD

0.5

FTIV CONTROL

2.9L

F342

OG/WH

0.5

FUSED ASD RELAY OUTPUT

2.9L

⁽¹⁾	Pins not listed are not used for this connector
