Module-Steering Column Control C1 (Standard) Connector End View (D3816A)

Harness-Family: IP

Color: BLUE

Gender: FEMALE

Part Number: 0/13552/02

Part Description: Not Available

Connector No: D3816A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

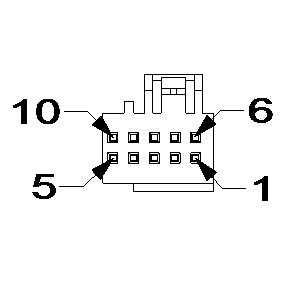

Fig 1: Module-Steering Column Control C1 Connector End View (Standard)
GCWD1000364Courtesy of CHRYSLER

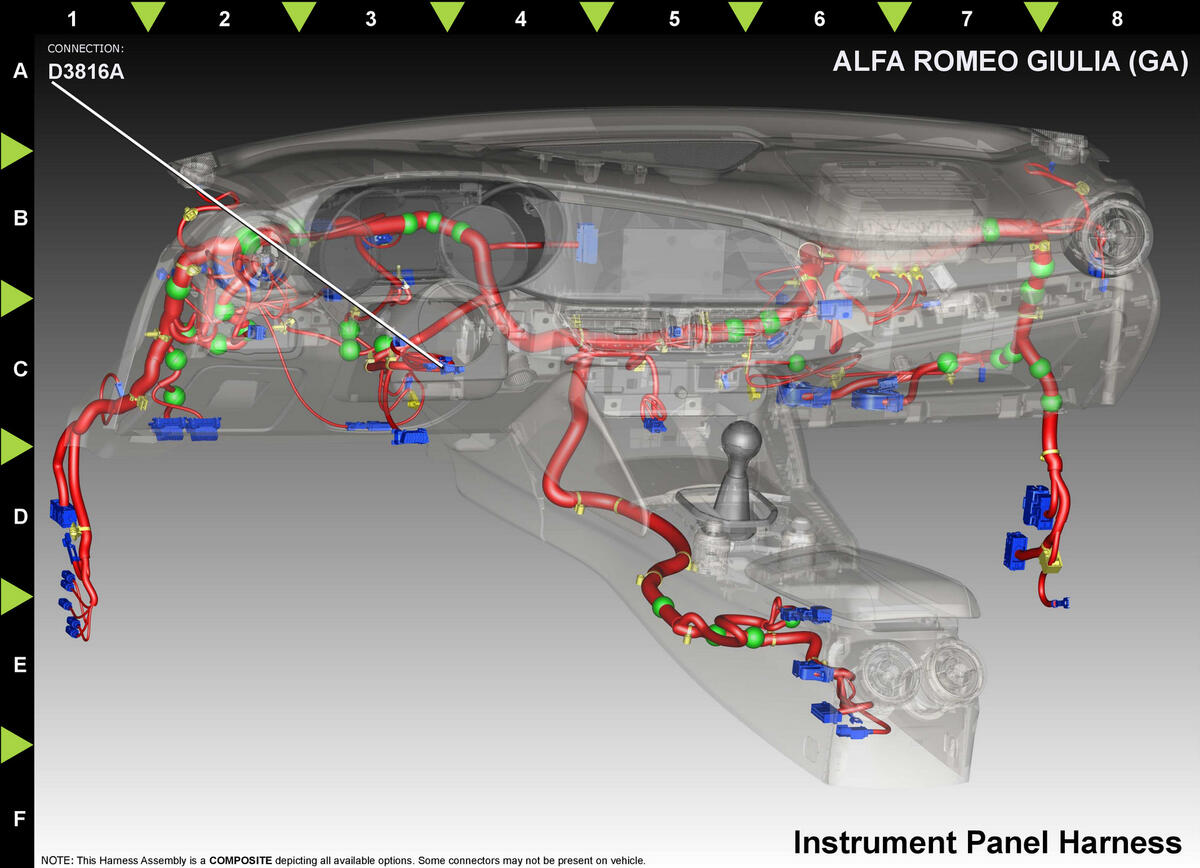

Fig 2: Module-Steering Column Control C1 Component Location (Standard)
GCWD1267739Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
1 D504 GN/BN 0.35 LIN BUS LIGHTING SIG RT LHD
2 D402 GY/GN 0.35 LIN BUS 2 EXCEPT REAR CAMERA
3 D122 VT/GN 0.35 SECURITY K LINE COMMUNICATION LHD
4 G20 WH/GN 0.35 IGNITION SWITCH SENSE LHD
5 E12 YE 0.35 PANEL LAMPS DRIVER LHD
7 Z908 BK/GN 0.35 GROUND LHD
8 A901 RD/GN 0.5 FUSED B(+) N/A
9 X3 GN/WH 0.35 HORN SWITCH SENSE LHD
10 Z908 BK/VT 0.5 GROUND N/A
(1) Pins not listed are not used for this connector
