Module-Steering Column Control C3 (Standard) Connector End View (D3816C)

Harness-Family: IP

Color: BLACK

Gender: FEMALE

Part Number: 0/14400/87

Part Description: Not Available

Connector No: D3816C

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

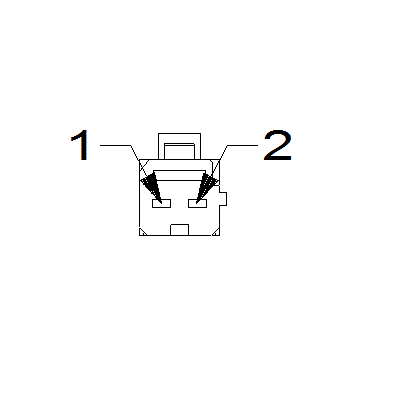

Fig 1: Module-Steering Column Control C3 Connector End View (Standard)

Courtesy of CHRYSLER

Fig 2: Module-Steering Column Control C3 Component Location (Standard)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

C91

GY/GN

HEATED STEERING WHEEL FEED

HEATED STEERING WHEEL

Z908

GROUND

HEATED STEERING WHEEL

⁽¹⁾	Pins not listed are not used for this connector
