Module-Torque Vectoring C2 (Standard) Connector End View (D3901B)

Harness-Family: Rear_Differential

Color: BLACK

Gender: FEMALE

Part Number: 1355204-1_967634-1

Part Description: Not Available

Connector No: D3901B

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

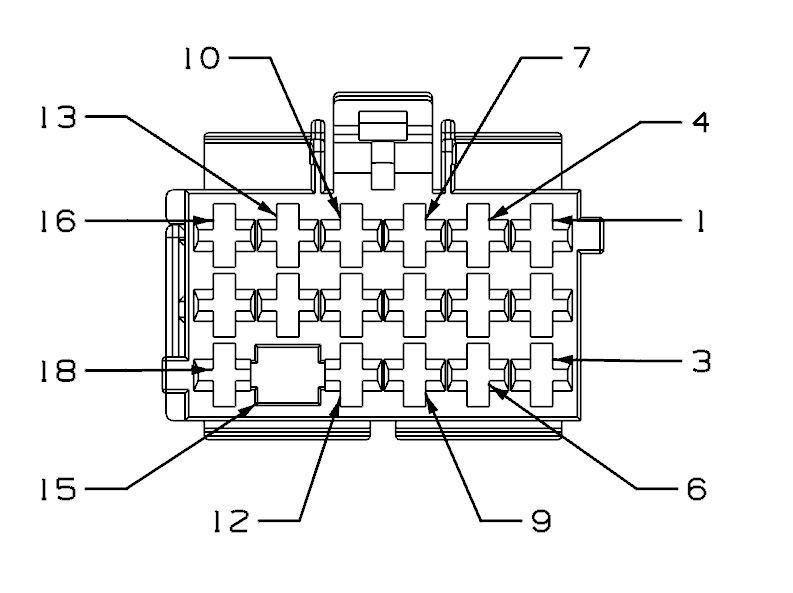

Fig 1: Module-Torque Vectoring C2 Connector End View (Standard)

Courtesy of CHRYSLER

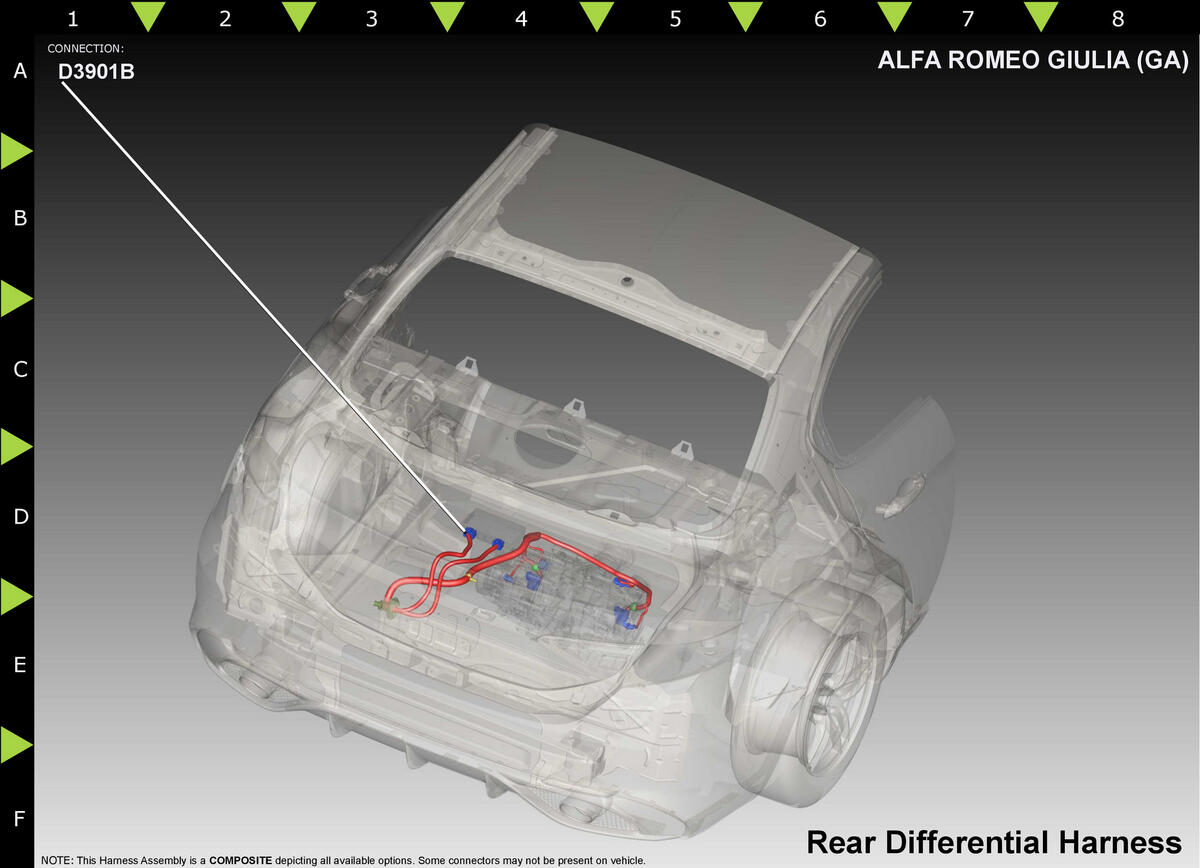

Fig 2: Module-Torque Vectoring C2 Component Location (Standard)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

T430

2.5

LEFT TORQUE MOTOR U SIGNAL

N/A

T431

2.5

LEFT TORQUE MOTOR W SIGNAL

N/A

T432

2.5

LEFT TORQUE MOTOR V SIGNAL

N/A

T331

YE/RD

0.5

LEFT TORQUE MOTOR OIL TEMPERATURE SENSOR SIGNAL

N/A

T330

0.5

LEFT TORQUE MOTOR OIL TEMPERATURE SENSOR RETURN

N/A

S000

2.5

CLUTCH SPEED SIGNAL SHIELD

N/A

T436

0.5

LEFT TORQUE MOTOR TEMPERATURE SIGNAL

N/A

T437

0.5

LEFT TORQUE MOTOR GROUND

N/A

T438

0.5

LEFT TORQUE MOTOR POSITION SENSOR FEED

N/A

T439

YE/DB

0.5

LEFT TORQUE MOTOR POSITION SENSOR SIGNAL

N/A

T440

DB/BK

0.5

LEFT TORQUE MOTOR POSITION SENSOR RETURN

N/A

⁽¹⁾	Pins not listed are not used for this connector
