Lower Shroud: Installation

  1. Check that the steering column trim is undamaged.

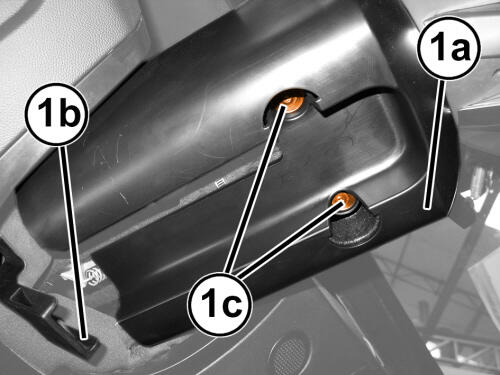

    GC0195116Courtesy of CHRYSLER GROUP, LLC
  2. Position the lower steering column shroud into position, engage the lever (1b) with the shroud.
  3. Install the two lower steering column shroud to steering column mounting bolts and tighten securely.
