Removal And Installation: Module

NOTE:

The Global Telematics Box Module (TBM2) is mounted on a bracket which is bolted to the Instrument Panel (IP) carrier over the center tunnel.

REMOVAL

  1. Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.
  2. Remove the floor console. Refer to CONSOLE, FLOOR, REMOVAL AND INSTALLATION .

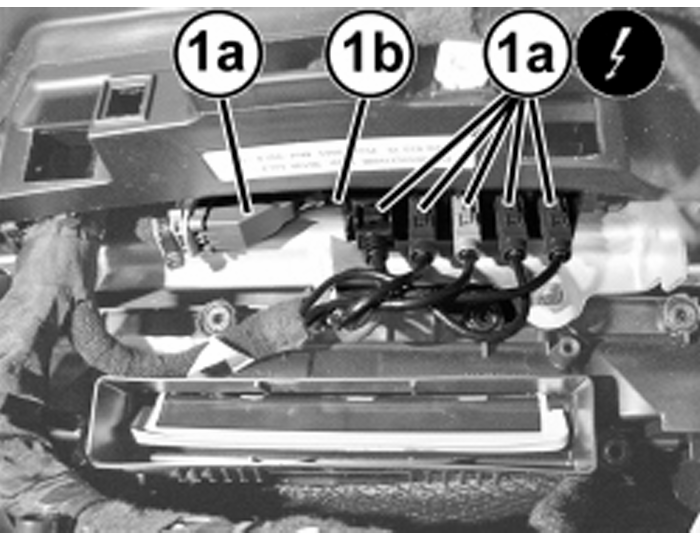

    GC0198815Courtesy of CHRYSLER GROUP, LLC
  3. Disconnect the wire harness connectors (1a) from the TBM2 (1b).

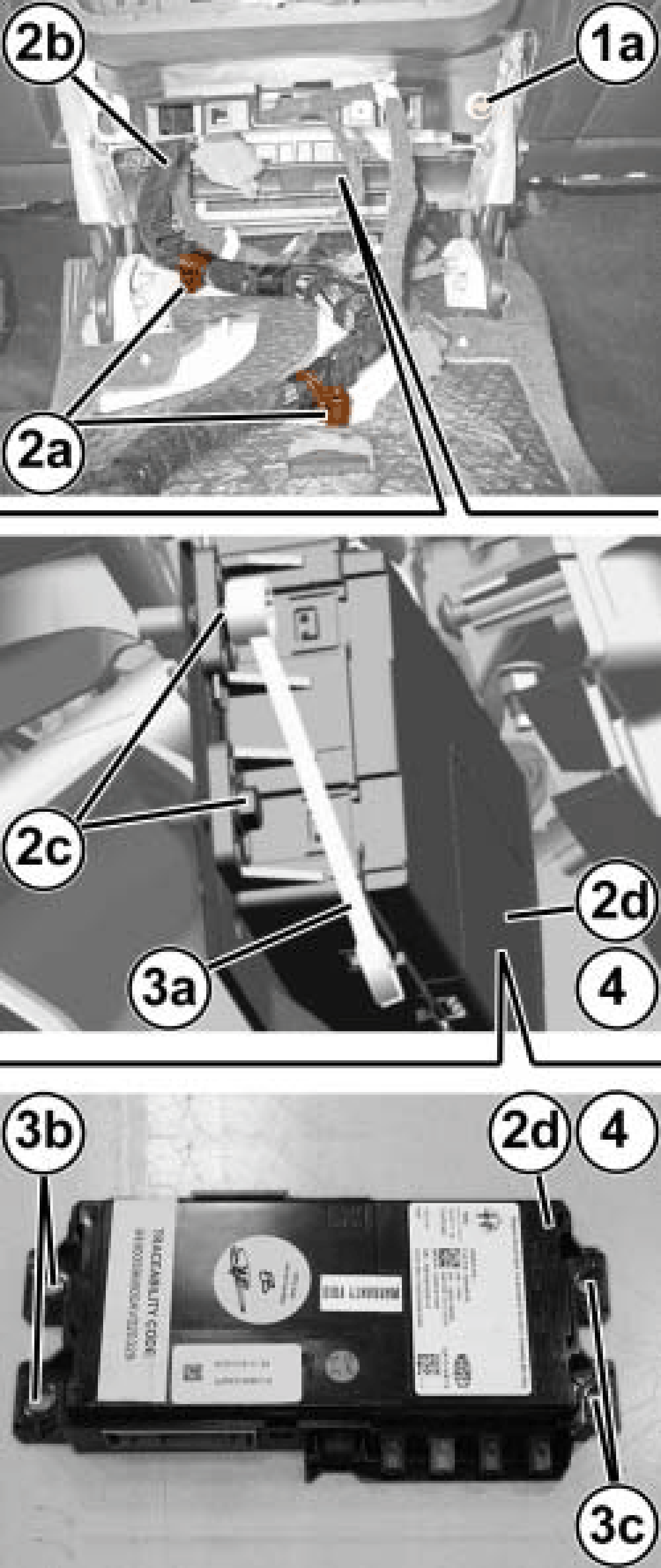

    GC0198710Courtesy of CHRYSLER GROUP, LLC
  4. Remove the fastener (1a) from the I/P carrier.
  5. Release the wire harness retainers (2a). Position the wire harness (2b) aside to gain access to the TBM2 fasteners.
  6. Remove the fasteners (2c) from both sides of the TBM2 (2d). Remove the TBM2 (2d) from the vehicle.

INSTALLATION

GC0198710Courtesy of CHRYSLER GROUP, LLC
  1. Position the TBM2 (2d) to the lower I/P carrier. Install the fasteners (2c) to both sides of the TBM2 (2d) and tighten securely.
  2. Position the wire harness (2b) and securely seat the wire harness retainers (2a).
  3. Install and securely tighten the fastener (1a) that secures the lower I/P carrier.
    GC0198815Courtesy of CHRYSLER GROUP, LLC
  4. Connect all the wire harness connectors (1a) to the TBM2 (1b).
  5. Install the floor console. Refer to CONSOLE, FLOOR, REMOVAL AND INSTALLATION .
  6. Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector.
