Removal And Installation: Removal
If this Electronic Control Unit (ECU) is being replaced with a new unit, use a diagnostic scan tool to perform the Flash Programming Procedure (if available). This will confirm that the module is updated to the latest applicable software level.
To avoid serious or fatal injury on vehicles equipped with airbags, disable the Supplemental Restraint System (SRS) before attempting any steering wheel, steering column, airbags, airbag curtains, knee blocker, seat belt tensioner, impact sensor or instrument panel component diagnosis or service. Disconnect the Intelligent Battery Sensor (IBS)/negative battery cable assembly from the negative battery post, then wait two minutes for the system capacitor to discharge before performing further diagnosis or service. This is the only sure way to disable the SRS. Failure to take the proper precautions could result in accidental airbag deployment.
- Disconnect and isolate the negative cable from the battery. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector before disconnecting the negative cable from the battery.
- Remove the shifter bezel. Refer to BEZEL, SHIFTER, REMOVAL AND INSTALLATION
.

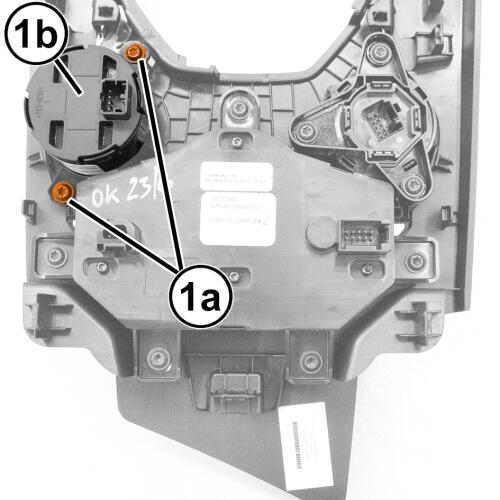

For the Volume/Tune Control Switch Assembly
- Remove the two volume/tune control switch assembly screws (1a).
- Remove the volume/tune control switch assembly (1b) from the shifter bezel.

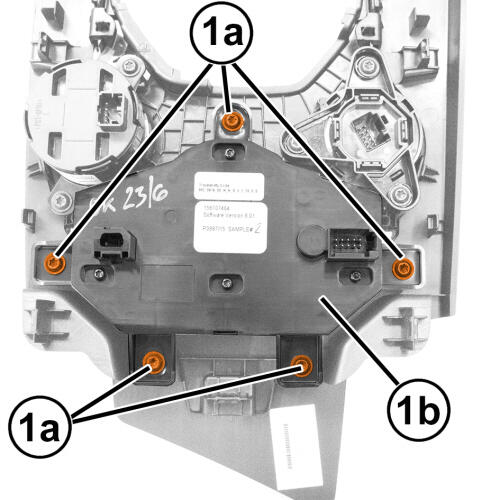

For the Menu/Knob/Option Control Switch Assembly
- Remove the five menu/knob/option control switch assembly screws (1a).
- Remove the menu/knob/option control switch assembly (1b) from the shifter bezel.
