Removal And Installation

NOTE:

If this Electronic Control Unit (ECU) is being replaced with a new unit, use a diagnostic scan tool to perform the Flash Programming Procedure (if available). This will confirm that the module is updated to the latest applicable software level.

REMOVAL

NOTE:

After performing a flash programming procedure on a BCM, the vehicle must be driven above 20kp/h (13 mph) to make sure all vehicle functions will operate normally.

  1. Disconnect and isolate the negative battery cable.

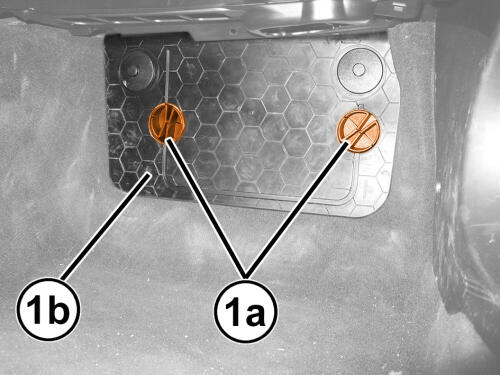

    GC0195171Courtesy of CHRYSLER GROUP, LLC
  2. Remove the fasteners (1a) securing the BCM access cover.
  3. Remove the access cover (1b) by releasing it from the lower side.

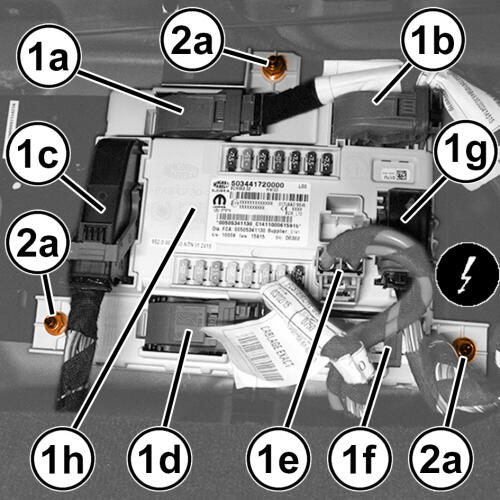

    GC0194171Courtesy of CHRYSLER GROUP, LLC
  4. Disconnect the Body Computer Module (BCM) (1h) electrical connections (1a, 1b, 1c, 1d, 1e, 1f, 1g).
  5. Remove the nuts (2a) securing the BCM.
  6. Remove the BCM (1h).

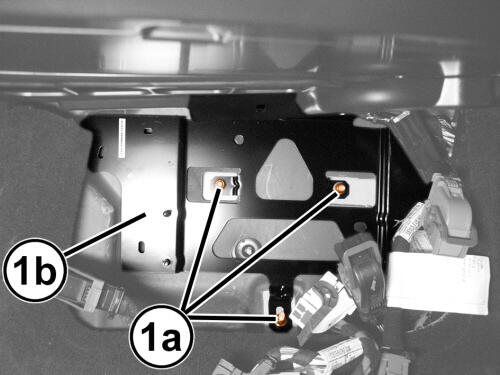

    GC0193354Courtesy of CHRYSLER GROUP, LLC
  7. If necessary, remove the screws (1a) to separate the BCM from the BCM support bracket (1b).

INSTALLATION

  1. Inspect the BCM and the bracket for damage.

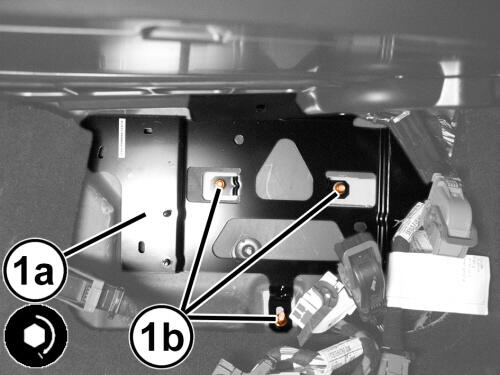

    GC0193376Courtesy of CHRYSLER GROUP, LLC
  2. If necessary, position and secure the BCM to the BCM support bracket using screws. Tighten the screws to the proper torque specification. Refer to TORQUE SPECIFICATIONS  .
  3. Position the BCM to the vehicle for installation.

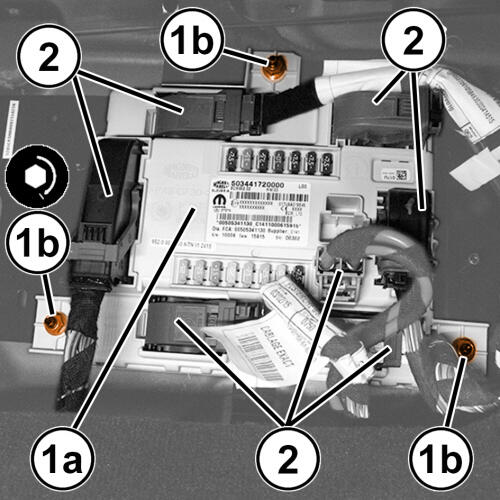

    GC0194961Courtesy of CHRYSLER GROUP, LLC
  4. Tighten the BCM retaining screws (1b) to the proper torque specification. Refer to TORQUE SPECIFICATIONS  .
  5. Connect the wiring harness connectors to the BCM.
    GC0194061Courtesy of CHRYSLER GROUP, LLC
  6. Install the access cover (1a) and tighten its fasteners (1b) to secure the cover.
  7. Connect the negative battery cable.
  8. Using the diagnostic scan tool, navigate to the BCM and launch the "BCM replacement" routine. This procedure should be performed anytime the BCM is replaced, or if the ECM Immobilizer Transfer or ESL Immobilizer Transfer routines instruct the user to run this procedure.
  9. After performing a flash programming procedure on the BCM, the vehicle must be driven above 20kph (13 mph) to make sure all vehicle functions will operate normally
NOTE:

If this Electronic Control Unit (ECU) is being replaced with a new unit, a diagnostic scan tool MUST be used to determine if alignment of the PROXI configuration data into the new ECU is needed. If PROXI alignment is needed, follow the routine outlined in the diagnostic scan tool for PROXI Configuration Alignment under the Body Control Module (BCM) Miscellaneous Functions menu.
