Primary Resistance

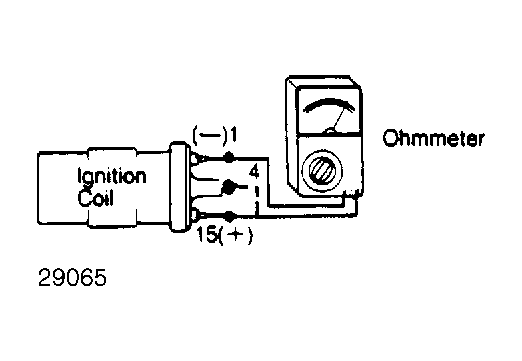

Turn ignition off. Remove all wires from ignition coil. Set an ohmmeter in the low scale and attach its leads to ignition coil primary terminals 1 and 15. See Figure.
