Engine Identification

Engine can be identified by code and serial number stamped on machined surface of cylinder block. See Fig 1 -Fig 4 . Engine code is also identified on vehicle data label.

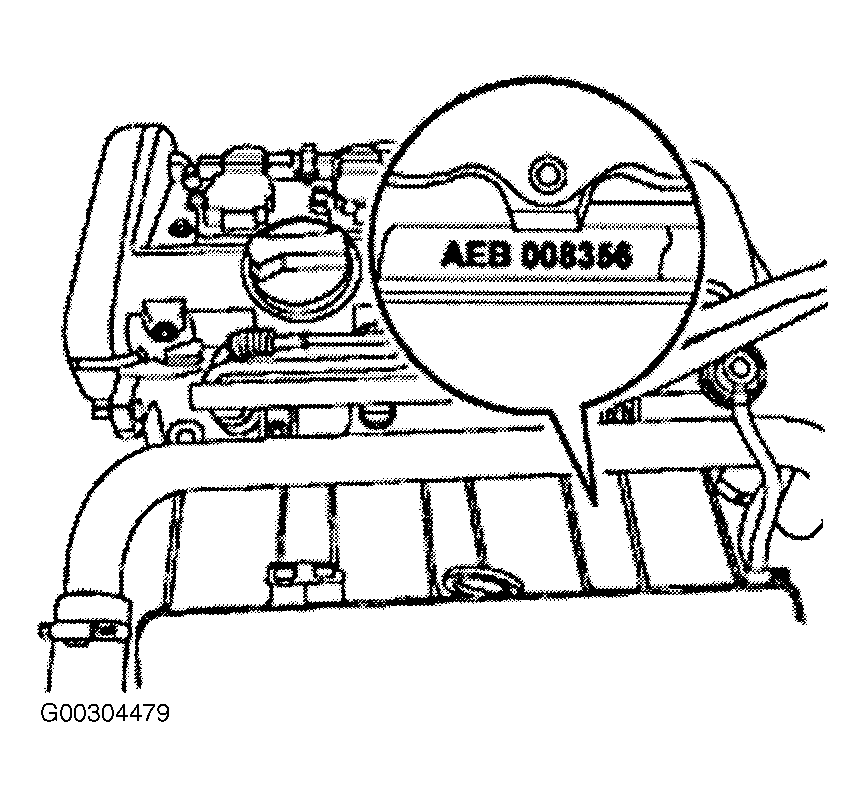

Fig 1: Locating 1.8L Turbo (AEB & ATW) Engine Code

Courtesy of AUDI OF AMERICA, INC.

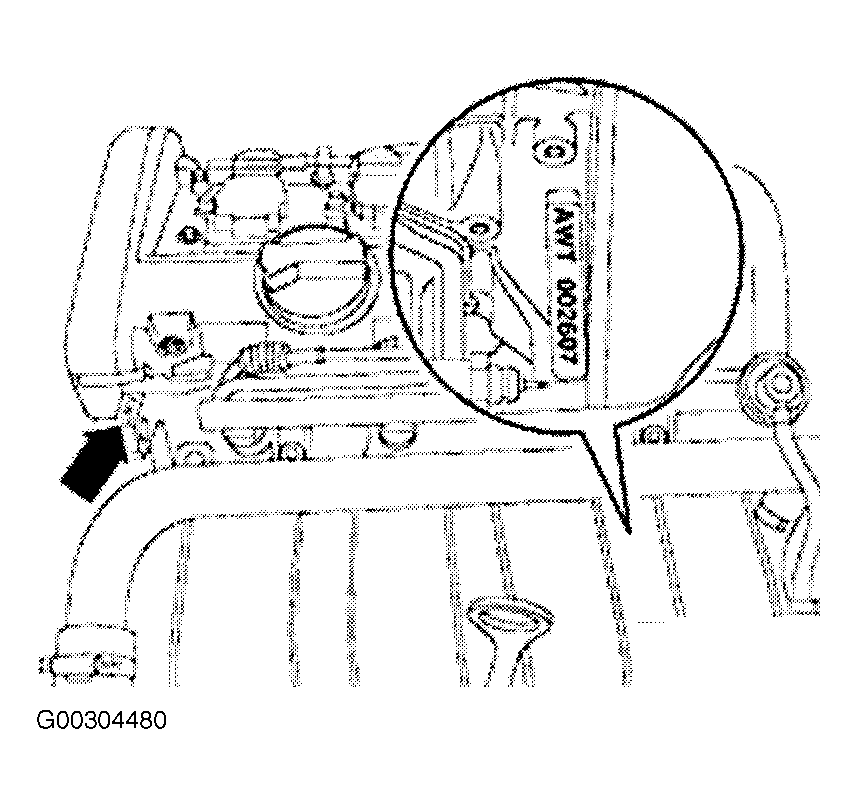

Fig 2: Locating 1.8L Turbo (AWM) Engine Code

Courtesy of AUDI OF AMERICA, INC.

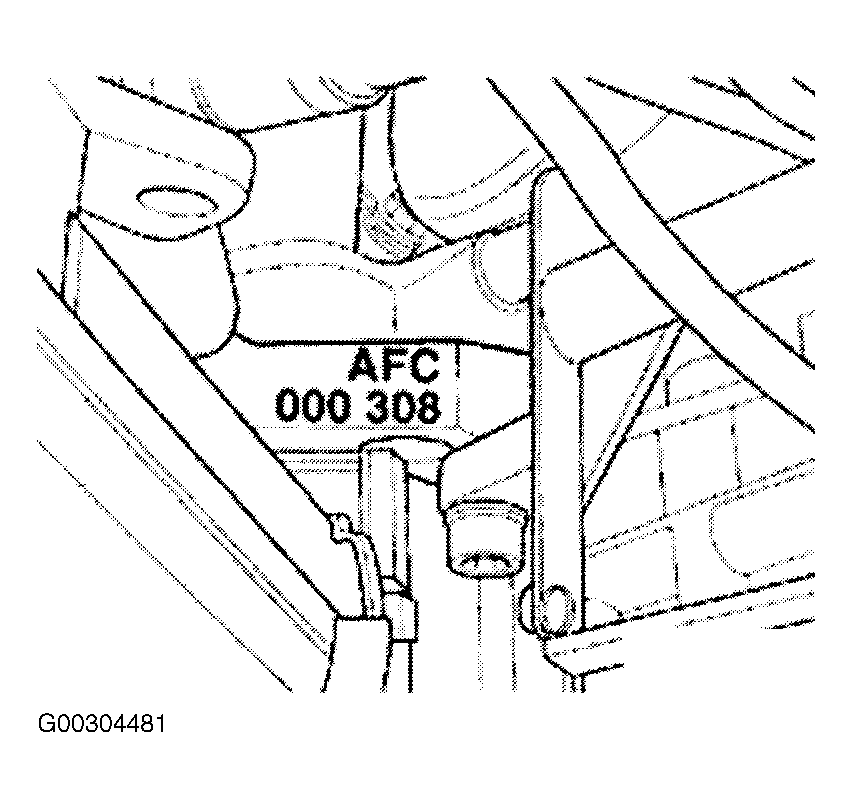

Fig 3: Locating 2.8L V6 (AFC) Engine Code

Courtesy of AUDI OF AMERICA, INC.

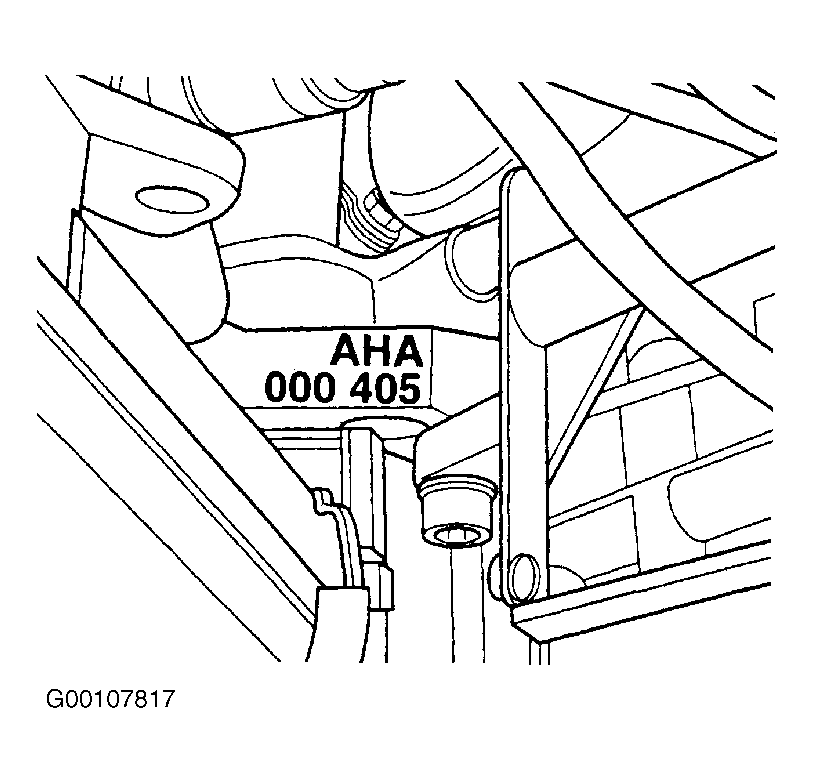

Fig 4: Locating 2.8L V6 (AHA & ATQ) Engine Code

Courtesy of VOLKSWAGEN UNITED STATES, INC.
