Repair and Diagnosis (Single Page)
>>
Accessories & Equipment
>>
Anti-Theft Systems
>>
On Board Diagnostic (OBD) - Central Locking System & Ultrasonic Interior Monitoring
>>
Central locking system On Board Diagnostic (OBD) from 07.96
>>
Read Measuring Value Block (function 08)
>>
Display Group 002
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Display Group 002

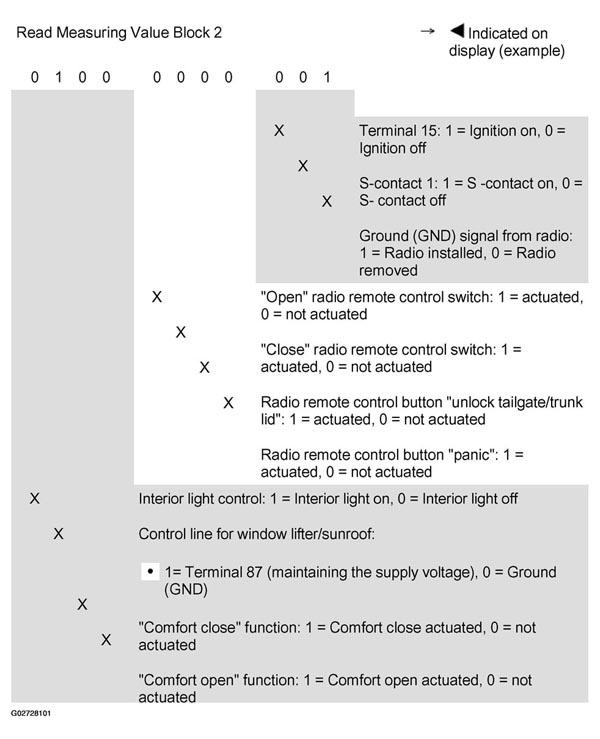

Fig 1: Display Group 002, Central Locking System
Courtesy of AUDI OF AMERICA, INC.
Courtesy of AUDI OF AMERICA, INC.
