Control Module Versions, checking (function 01)
Indicated on display

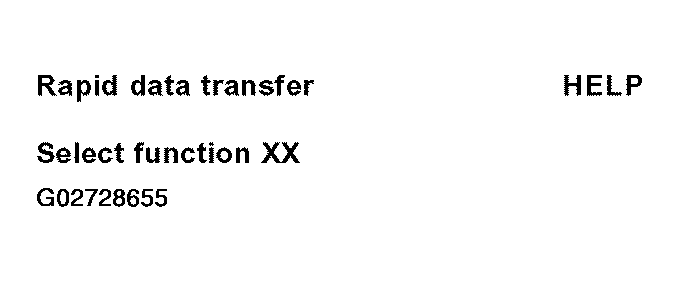

Fig 1: Identifying Scan Tool Display - Checking Control Module Versions (Multi-Function Steering Wheel) (1 Of 3)
- Press buttons -0- and -1- to select "Check control module" function 01.
Indicated on display

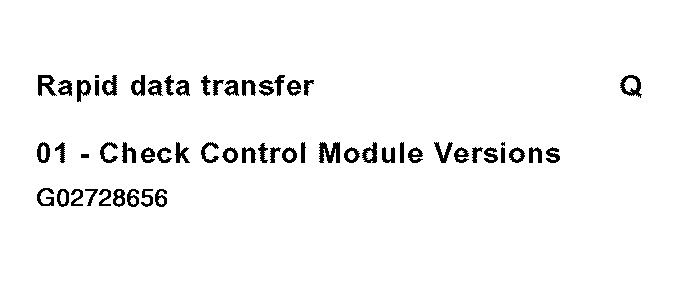

Fig 2: Identifying Scan Tool Display - Checking Control Module Versions (Multi-Function Steering Wheel) (2 Of 3)
- Press -Q- button to confirm input.
Indicated on display after approx. 5 seconds (example only):

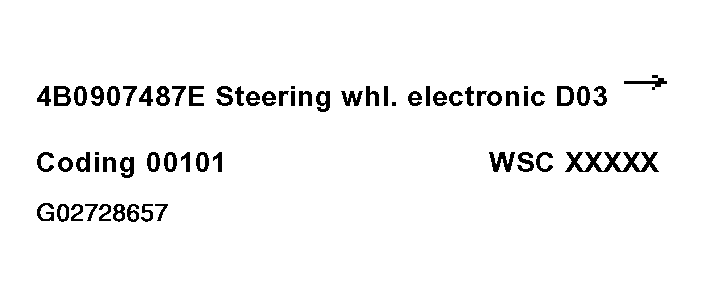

Fig 3: Identifying Scan Tool Display - Checking Control Module Versions (Multi-Function Steering Wheel) (3 Of 3)
- Part number of steering wheel electronics
- Steering wheel electronics: component marking
- D03: Software version of control module
- Coding 00101: Multi-function steering wheel control module coding
- XXXXX: Workshop number
- Press --> button.
