Diagnostic Trouble Code (DTC) Memory, erasing (function 05): Requirements

After successful DTC memory check:

Indicated on display

Fig 1: Identifying Scan Tool Display - Erasing DTC Memory (Function 05) (1 Of 6)

Courtesy of AUDI OF AMERICA, INC.

Indicated on display

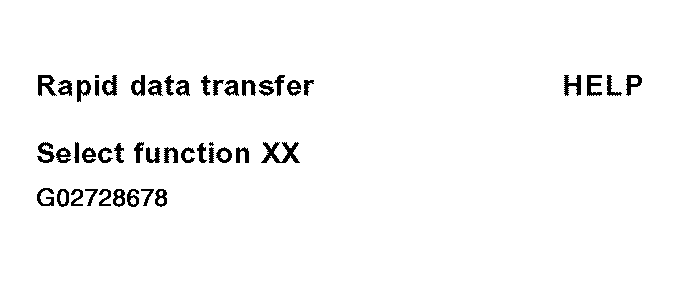

Fig 2: Identifying Scan Tool Display - Erasing DTC Memory (Function 05) (2 Of 6)

Courtesy of AUDI OF AMERICA, INC.

Indicated on display

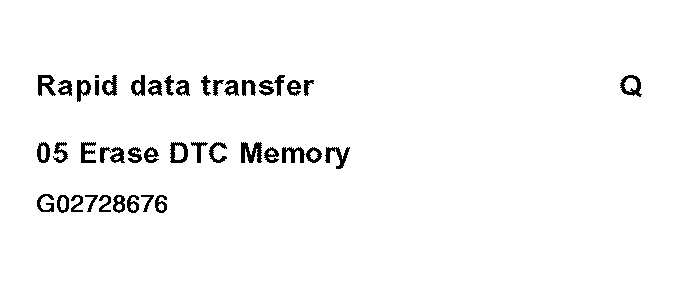

Fig 3: Identifying Scan Tool Display - Erasing DTC Memory (Function 05) (3 Of 6)

Courtesy of AUDI OF AMERICA, INC.

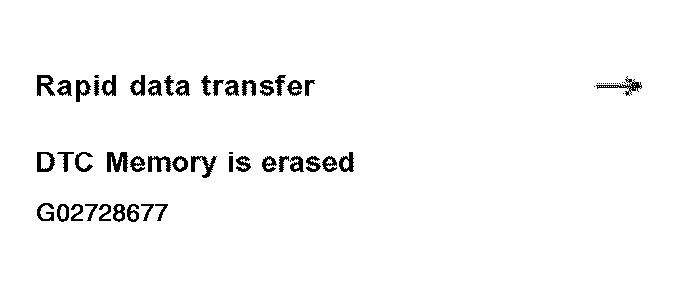

DTC memory is erased.

Press --> button.

Fig 4: Identifying Scan Tool Display - Erasing DTC Memory (Function 05) (4 Of 6)
Courtesy of AUDI OF AMERICA, INC.

Indicated on display

Fig 5: Identifying Scan Tool Display - Erasing DTC Memory (Function 05) (5 Of 6)

Courtesy of AUDI OF AMERICA, INC.

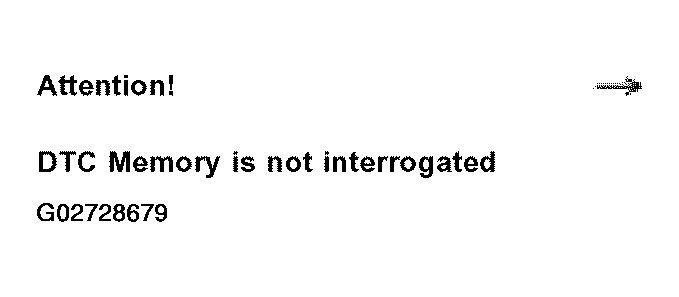

NOTE:

Test sequence is faulty if this message is displayed.

Fig 6: Identifying Scan Tool Display - Erasing DTC Memory (Function 05) (6 Of 6)
Courtesy of AUDI OF AMERICA, INC.
Test sequence is faulty if this message is displayed.

Follow test sequence exactly: first check DTC memory, repair malfunction(s) if necessary, then erase.
