Coding procedure

Indicated on display

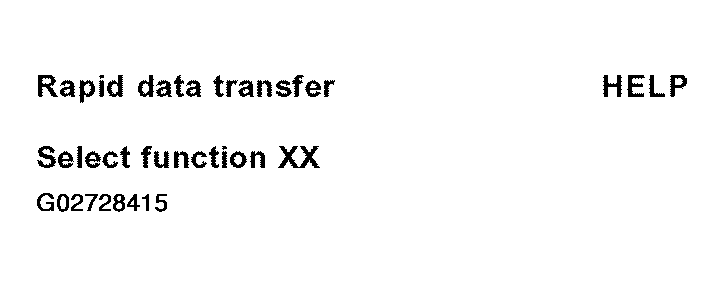

Fig 1: Identifying Scan Tool Display - Code Control Module, Radio (1 Of 6)

Courtesy of AUDI OF AMERICA, INC.

• Press -0- and -7- to select "Code Control Module" function 07.

Indicated on display

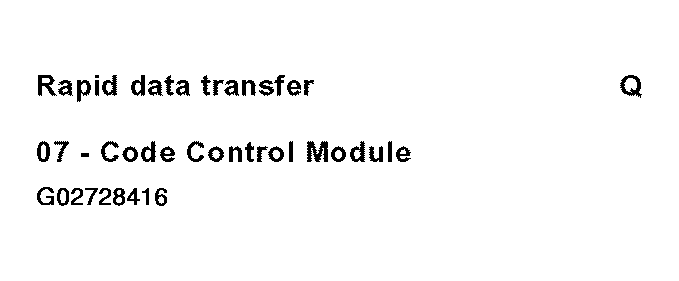

Fig 2: Identifying Scan Tool Display - Code Control Module, Radio (2 Of 6)

Courtesy of AUDI OF AMERICA, INC.

• Press -Q- button to confirm input.

Indicated on display

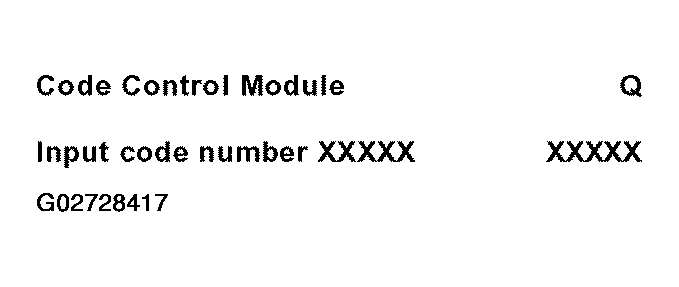

Fig 3: Identifying Scan Tool Display - Code Control Module, Radio (3 Of 6)

Courtesy of AUDI OF AMERICA, INC.

• Input code number per coding table through m.y. 2001. See CODING TABLE - THROUGH M.Y. 2001  .
• Input code number per coding table from m.y. 2002. See CODING TABLE - FROM M.Y. 2002  .
